USED 2005 MAZAK NEXUS VCN 510C

Chip Conveyor - Mayfran Belt Type
Remote Jog Handle

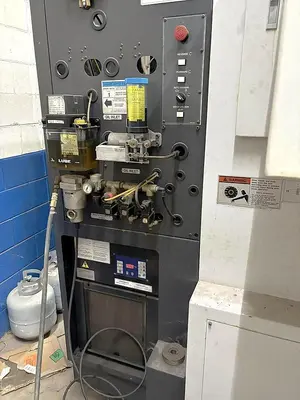

Coolant System with Tank and Pump
EIA/ISO Input Function
Backround Toolpath Check
Adaptive Feedrate Control
Tool Life Monitoring
Multi Tap Transformer
USB Port Interface
RS 232 Port Interface
Miscellaneous Tooling Face Mills, End Mill, Tool Holders ER-40 Collet Chucks
8" Kurt Vise
All Available Manuals

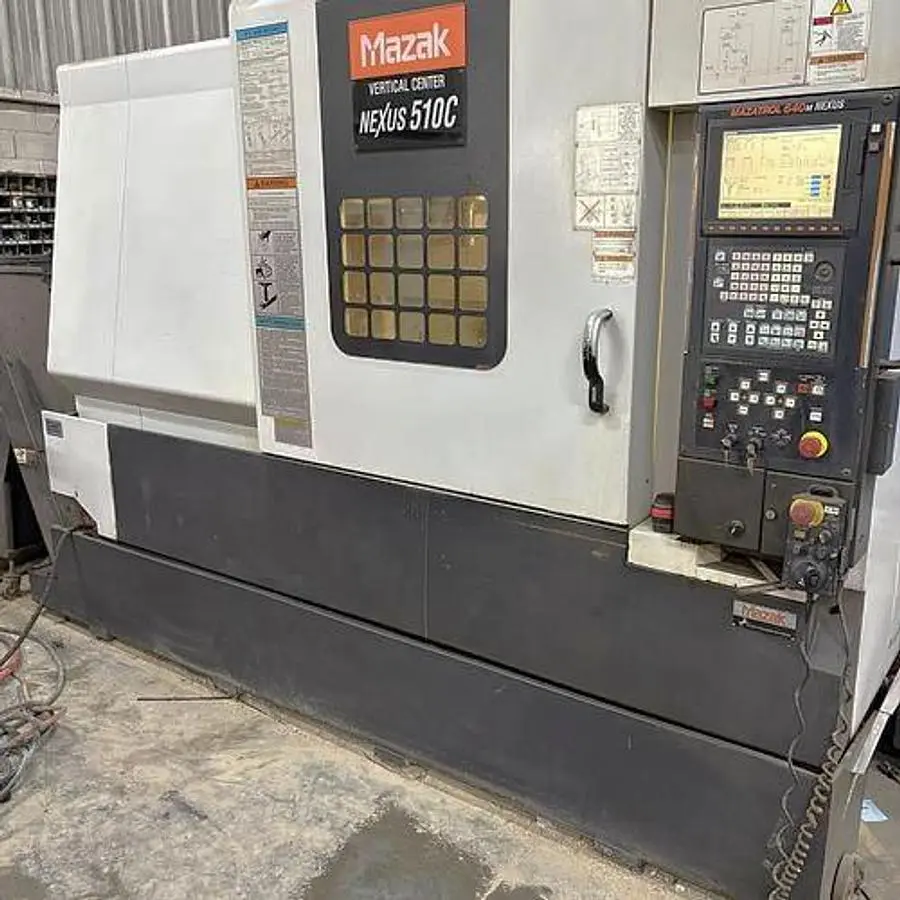

The 2005 Mazak Nexus VCN 510C is a reliable used CNC Vertical Machining Center, suitable for precision 3-axis machining tasks. Equipped with Mazatrol 640M Nexus Control, this machine offers a user-friendly interface for efficient operation. The machining center features a robust table size of 51.18" x 21.65", capable of handling loads up to 2,646 lbs, allowing for a diverse range of workpieces.

The VCN 510C boasts axis travels of 41.3" (X), 20" (Y), and 20" (Z), providing ample room for complex projects. Its spindle supports a CAT 40 taper and reaches speeds up to 12,000 RPM, driven by a powerful 25 HP motor. The spindle nose to table top distance ranges from 5.9" to 25.98", accommodating various tooling requirements. Additionally, the machine features a 30-position automatic tool changer, maximizing workflow efficiency through quick tool swaps.

With rapid traverse rates of 1,417 IPM, this machining center ensures fast and precise movements across all axes. Despite its sturdy construction, encompassing dimensions of 115" x 115" x 104", and a weight of 15,180 lbs, the machine retains excellent performance metrics. The included chip conveyor and remote jog handle further enhance operability. The Nexus VCN 510C is an ideal solution for those requiring a capable and dependable machining center.

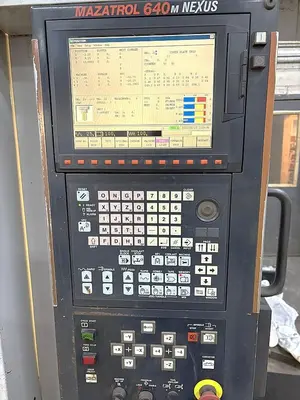

Machine Control: Mazatrol 640M Nexus Control
Table Size: 51.18" x 21.65"
Maximum Table Load: 2,646 lbs
X-Axis Travel: 41.3"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP
Distance Spindle Nose to Table Top: 5.9" - 25.98"

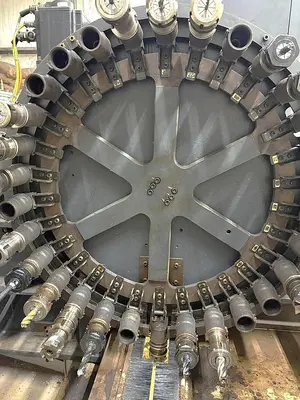

Tool Magazine Capacity: 30 Position ATC
Rapid Traverse Rates: 1,417 IPM
Machine Dimensions LxWxH: 115"x115"x104"
Machine Weight: 15,180 lbs
