Blanchard 18-30 rotary surface grinder, 30" magnetic chuck, 25 hp motor, and 720 RPM grinding speed. Includes coolant tank and power feed options.
| Chuck Size | 30" | 762 mm |
| Size Capacity | 30" | 30" |
| Horz/Vert | Vert | Vert |
| Power | 25 hp | 18.6 kW |
| Under Wheel | 12" | 304.8 mm |
| Grinding Wheel Dia. | 18" | 457.2 mm |
| Dimensions | 9'4" x 5'5" x 8'2" | 9'4" x 5'5" x 8'2" |
| Weight | 12500 lbs | 12500 lbs |

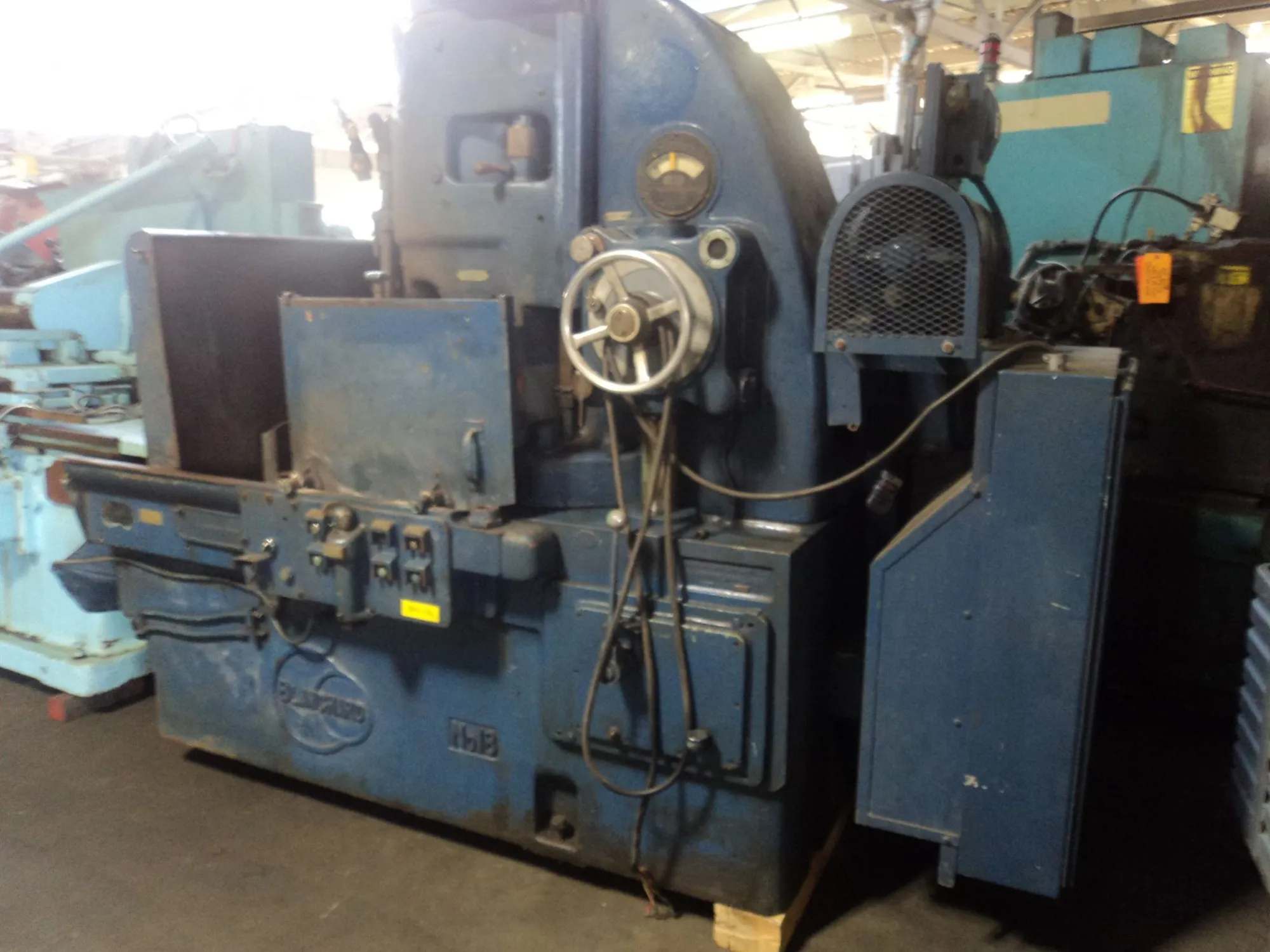

18-30 BLANCHARD ROTARY SURFACE GRINDER
S/N 8621 Year: 1956
CATALOG SPECIFICATIONS
30" Magnetic chuck.
18" Solid wheel chuck.
12" Over chuck.
Grinding wheel speed - 720 RPM.
Chuck speed - variable - 6, 9, 12, 25 and 33 RPM.
Coolant tank in base with pump (150 gallon tank).
Auto down feed.
Rapid up and down power feed.
25 HP grinding wheel motor.
Wheel dresser.
FLOOR SPACE AND HEIGHT
Length - 9'4".
Width - 5'5".
Height - 8'2".
Weight - 12,500 lbs. (approximate).
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
NOTE: Due to rising costs partly by unsteady pricing in purchased goods and supply chain issues, this quote is good for 30 days. Prices are subject to change, please contact us to confirm prior to issuing an order.
