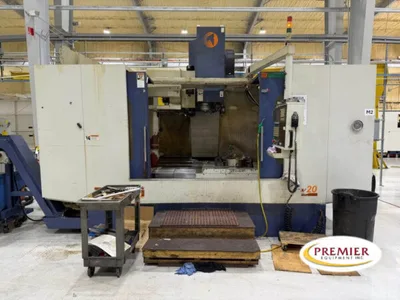

Takumi V-20 CNC Vertical Machining Center
Table Size: 78.7” x 31.49”
Table Load Capacity: 4850 lbs
Distance from Spindle Nose to Table Top7.87”min./ 37.4”max.
X Axis Travel: 70.87”
Y Axis Travel: 35.4”
Z Axis Travel: 29.52″
Rapid Traverse Rates (X,Y,Z)472 IPM
Cutting Feedrate: 196.8 IPM
Magazine Capacity16 ATC?
Spindle Nose#50
Spindle Speed4,500 RPM?
Main Motor30 HP
Floor Space204″ x 149″ x 131″
Weight38,500 lbs estim.
Fanuc Series OiMD
Rotary Table
Chip Conveyor
