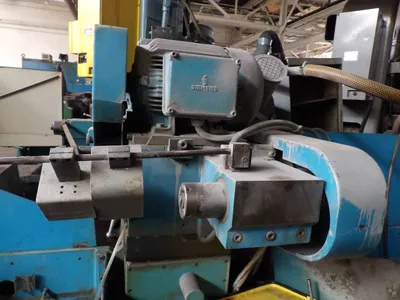

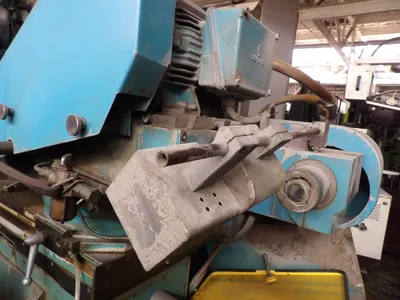

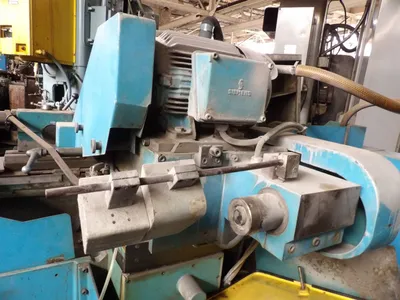

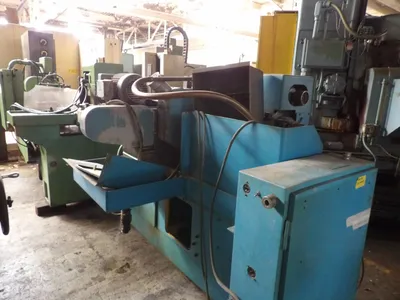

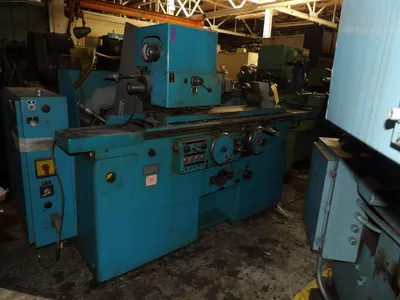

USED KARSTENS 12 X 24

KARSTENS 12 X 24 Universal Cylindrical Grinder. Features a 12" swing, 24" center distance, 50-450 RPM workhead speed, and 14" grinding wheel diameter. Equipped with hydraulic feed, table swivel, and coolant. Max weight 175 lbs.

KARSTENS 12” X 24” UNIVERSAL CYLINDRICAL GRINDER

S/N 80106

STANDARD CATALOG SPECIFICATIONS

Swing……………………………………………………………………………………………………………12”
Center Distance…………………………………………………………………………………24”
Feed Range Vary…………………………………………………………………………………0.000004-0.001
Max Workpiece Weight……………………………………………………………………175 LBS With Center
Workhead Speed……………………………………………………………………………………50-450 RPM
Wheelhead Speed…………………………………………………………………………………220/310/400
Max Grinding Wheel Size……………………………………………………………14”
Max Grinding Wheel Width…………………………………………………………2”
Internal Grinding Depth……………………………………………………………4.7”
Weight…………………………………………………………………………………………………………4,400 LBS

EQUIPPED WITH
Longitudinal or plunge cut hydraulic feed.
11.5 Degree table swivel.
Swivel workhead.
Fine & compensating feed.
Tailstock.
Live/dead workhead.
Internal attachment.
Coolant.

Specifications are deemed accurate, however, subject to verification or prior sale.
