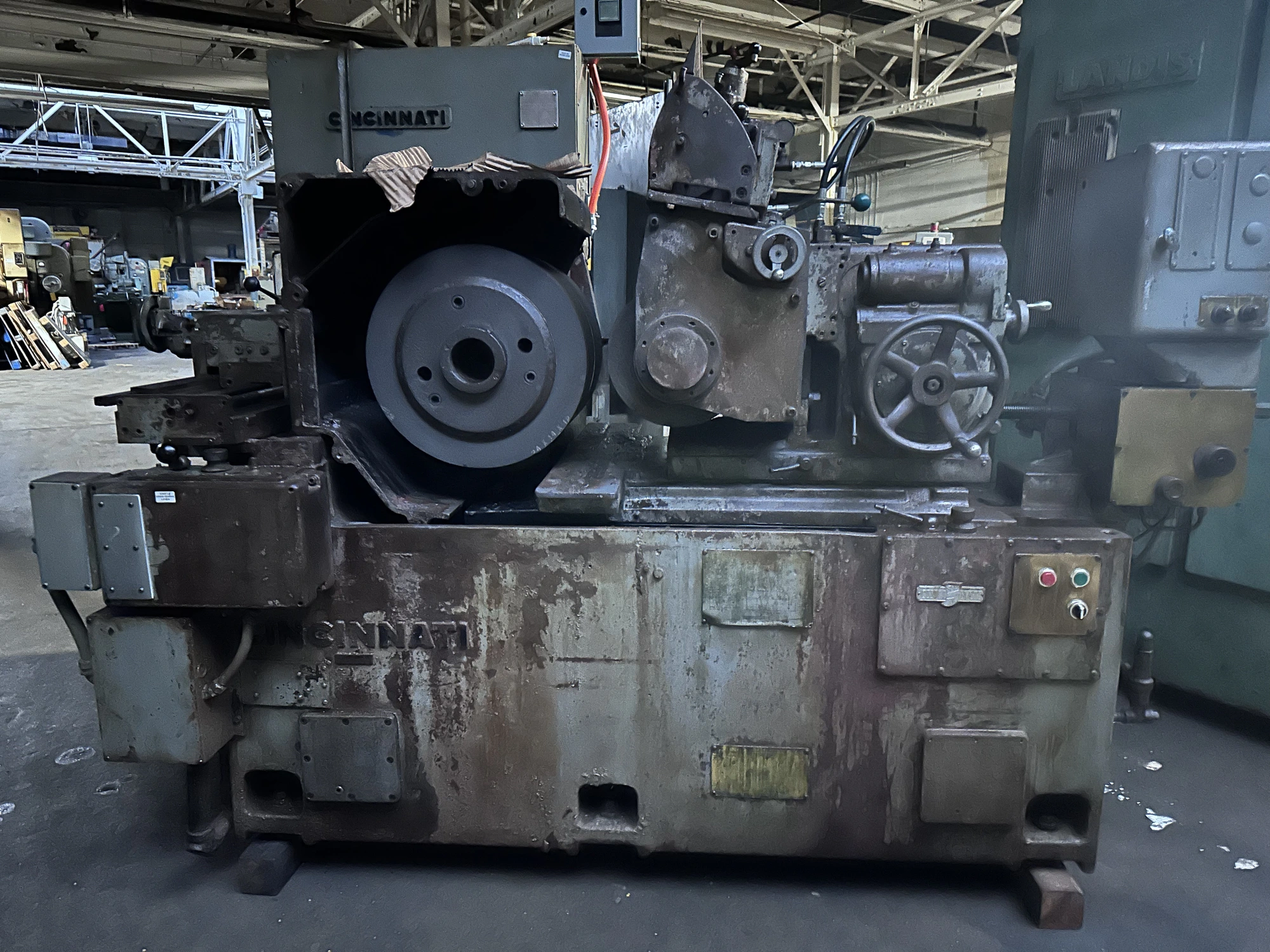

USED CINCINNATI #3 LL

Cincinnati #3 LL-LR Centerless Grinder, 24" OD GW, 14" Wide Wheel, Attached Electrical

#3 CINCINNATI CENTERLESS GRINDER MODEL LL

STANDARD CATALOG SPECIFICATIONS

CAPACITY:(Depending on which work rest is ordered, not
included in price.)
Standardthrufeed work rest................... 1/2 to 3 dia.
Heavyduty thrufeed work rest................. 2 to 6 dia.
Minimumwith special work rest................ 1/4 dia.
Standardinfeed work rest..................... 1/2 to 6 dia.

GRINDINGWHEEL SPINDLE
PRIVATE Made of heat treated chrome nickel steel, bearingdiameters lapped.tc�\l 1 Made of heat treated chrome nickel steel, bearing diameterslapped.
Size: Front rear bearings............. 4 3/4dia. x 7 1/2 long

REGULATINGWHEEL SPINDLE
Madeof heat treated chrome nickel steel
Size:Plain bearing at front............ 4 dia. x 5 1/2 long
Size:Plain bearing at rear............. 2 5/8 dia. x 3 3/4 long

WHEELS: (not supplied)
Grindingwheel............... 24 dia. x 12 hole x 15 face
Regulatingwheel............. 14 dia. x 5 hole x 15 face

WHEELTRUING EQUIPMENT
Hydrauliccontour truing on grinding wheel
Hydrauliccontour truing on regulating wheel

LUBRICATION
Allspindle bearings.......................... Automatic
Otherbearings................................ Individual fittings

MOTOR CONTROLS
Grindingwheel drive.......................... Multiple V belts
Regulatingwheel drive........................ Worm and gear
Grindingwheel motor.......................... 30 HP
Regulatingwheel motor........................ 2 HP
Lubricatingpump motor...................... 3/4 HP

COOLANTSUPPLY
Pumpcapacity................................. 25 gallons
Tankcapacity................................. 76 gallons

FLOORSPACE
Distancefrom floor to center of wheels....... 43 1/2
Approximatewithout fixtures.................. 96 1/4 x 62
Approximateweight............................ 11,500 lbs.

EQUIPMENT FEATURES
Hydraulicprofile truing on both grinding and regulating wheels.
Electro-hydraulicautomatic infeed attachment.
12Wide grinding and regulating wheel capacity.
Coolanttank and pump.

Specifications are deemed accurate, however, subjectto verification or prior sale.
