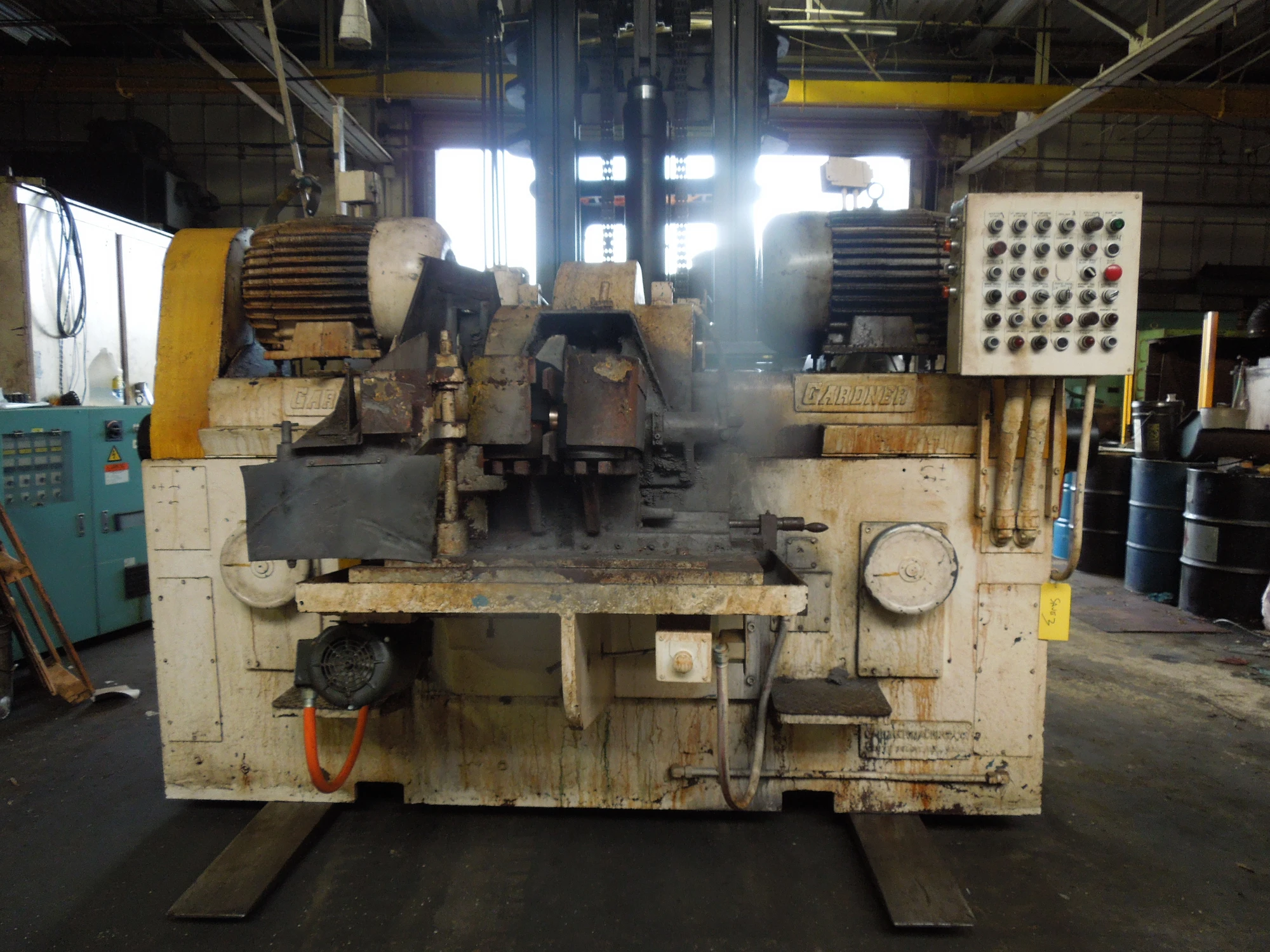

GARDNER SDG5-30 1970 double disc horizontal grinder. 30" wheel diameter, 50 hp power. Includes swing arm dresser, manual and auto cycle. Ideal for heavy-duty grinding tasks. Used condition, sold as available.
| Size Capacity | 30" | 30" |
| Grinding Wheel Dia. | 30" | 762 mm |
| Power | 50 hp | 37.3 kW |
| Weight | 25,000.00 | 25,000.00 |
SDG3 30 GARDNER DOUBLE DISC RECIPROCATING FEED GRINDER
S/N SDG3-857 12 Year: 1980
STANDARD CATALOG SPECIFICATIONS
Model SDG3 30
30".......................... Abrasive disc diameter
3"........................... Abrasive usable thickness
15".......................... Maximum opening between steel wheels
19 1/4"...................... Wheel mounting flanges
2 5/8"....................... Wheel thickness
EQUIPMENT & FEATURES
(2) 20 H.P. Spindle motors.
Swing arm dresser.
Carrier forward and reverse jog.
Rapid and incremental feed to both heads.
Manual and auto cycle.
Trabon lubrication.
Specifications are deemed accurate, however, subject to verification or prior sale.
