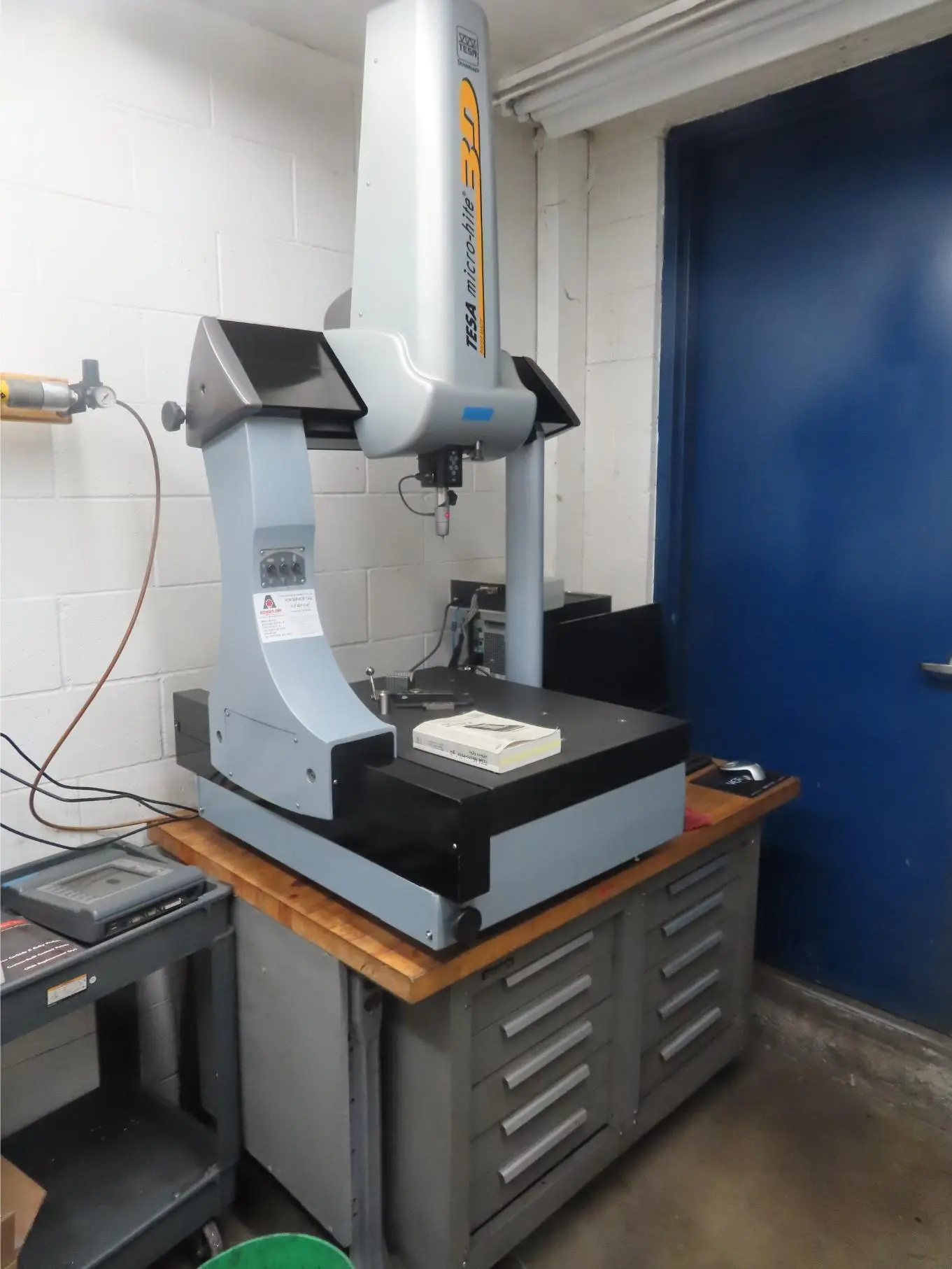

USED 2006 TESA MICRO-HITE 3D 454

Compact, Automated Coordinate Measuring Machine (CMM)
Make: Tesa Technology (Subsidiary of Hexagon Metrology)
Model: Micro-Hite 3D
DOM (Circa): 2006-2007
Electrics: 115-230 Volt, 1 Phase, 50-60 Cycle
Air Consumption: 60–120 PSI, Clean Air

Features and Specifications:
...TESA Reflex Controls
...Smart TESA-REFLEX Software
...TESASTAR Measuring Head
...Granite Table Size: 30" x 22" x 3"
...Measuring Range (Travels):
......X-Axis: 18”
......Y-Axis: 20”
......Z-Axis: 16.5”
...Volumetric Accuracy (MPEe): 3+4L/1000µm (L in mm)
...Repeatability (MPEp): 3µm
...Resolution: 0.1µm
...Max. Part Weight: 500 lbs.
...Displacements: Manual
...Granite Table w/ Aluminum Alloy Bridge
...High Precision Air Bearings
...Attached Pics Showing Dates of Calibration
...Miscellaneous Accoutrements (see pics)
...Software Manuals

Overall Dimensions (approx.): 41″ x 44″ x 72″ Tall
Unit Weight (approx.): 750 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is presently connected to power.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is under power; available for inspection.
Buyer responsible for loading onto their transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
