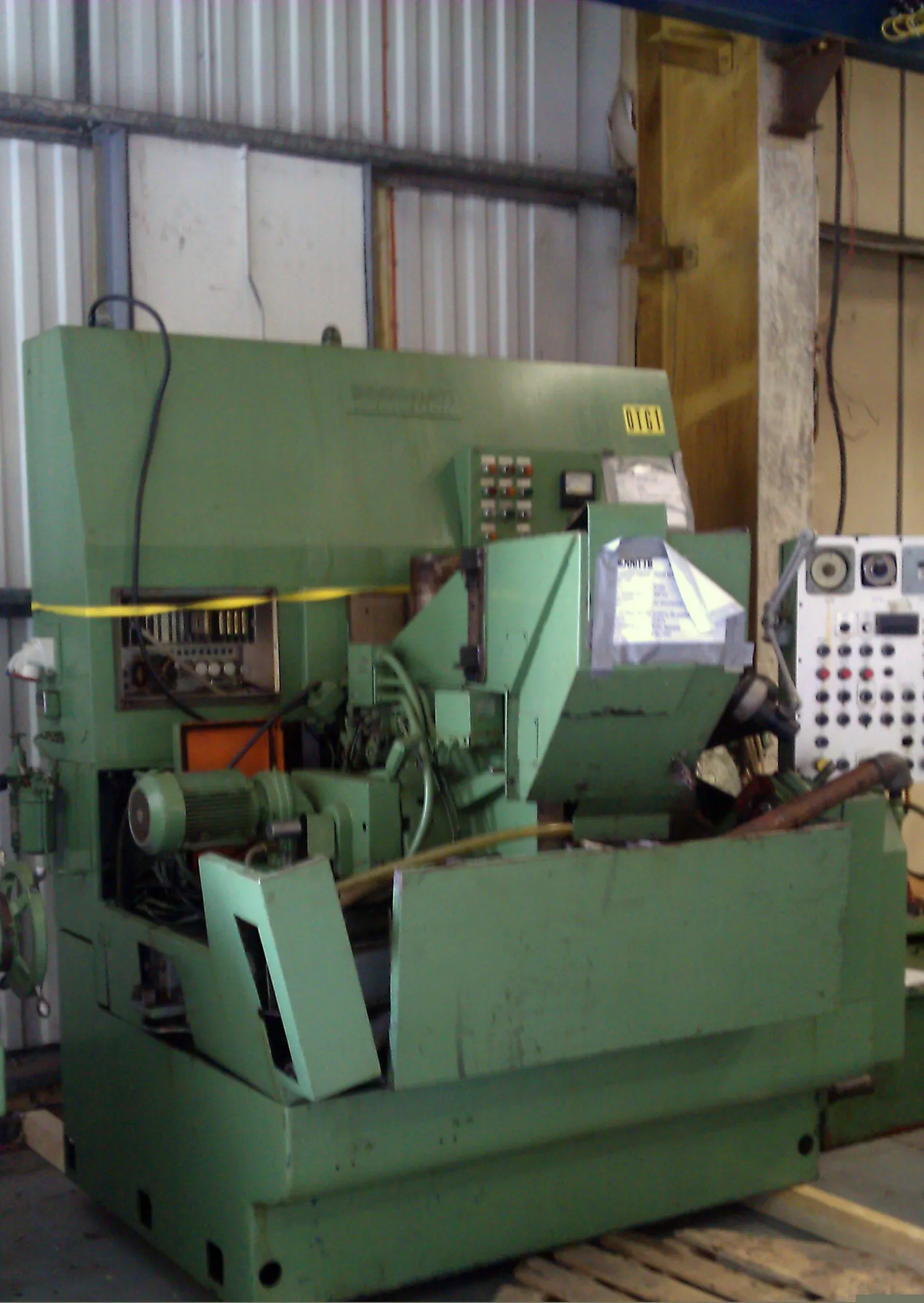

USED 1979 HEALD 2CF-91

HEALD 2CF- 90 / 91 Internal Grinder from 1979 with an 8" capacity, supporting various work sizes and speeds. Equipped with motors for backing plate, wheel head, hydraulic, and coolant operations. Radius diamond dresser included.

2CF91 CINCINNATIHEALD GRINDER
S/N 47464

STANDARD SPECIFICATIONS
CAPACITIES
Maximum outside diameter of work……………………………….. 8”
Minimum outside diameter of work……………………………….. 4”
Maximum length of work………………………………………….. 2 1/2”
Maximum length of work with special chutes…………………….. 3 1/2”
Maximum swivel of work…………………………………………. 30”
Center of wheel spindle from floor………………………………… 42 1/2”

SPEEDS AND FEEDS
Table travel (total including run out)..…………………………….. 8”
Wheel wear compensation………………………. .004” on diameter (.0001” increments)
Work speeds – standard…………………………………………… 153, 191 280 RPM
High force (adjustable)……………………………………………. 30 – 300 lbs.

DRIVE AND POWER REQUIREMENTS
Backing plate motor……………………………………………… 1/2 HP @ 280 RPM
Wheel head motor for belt drive…………………………………. 15 HP @ 3600 RPM
Hydraulic pump motor…………………………………………… 2 HP @ 1800 RPM
Coolant pump motor (2)…………………………………………. 3/4 1/2 HP
GENERAL DATA
Overall height……………………………………………………. 95 1/2”
Length and width of base on floor………………………………. 68” x 49”
Floorspace (without coolant tank)………………………………. 91” x 79”
Floorspace (without coolant tank)………………………………. 109” x 79”
Weight ofig machine – net(approximately)………………………. 11,000 lbs.
Gross weight crated (approximately)…………………………… 12,000 lbs.

TOOLING
Radius diamond dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
