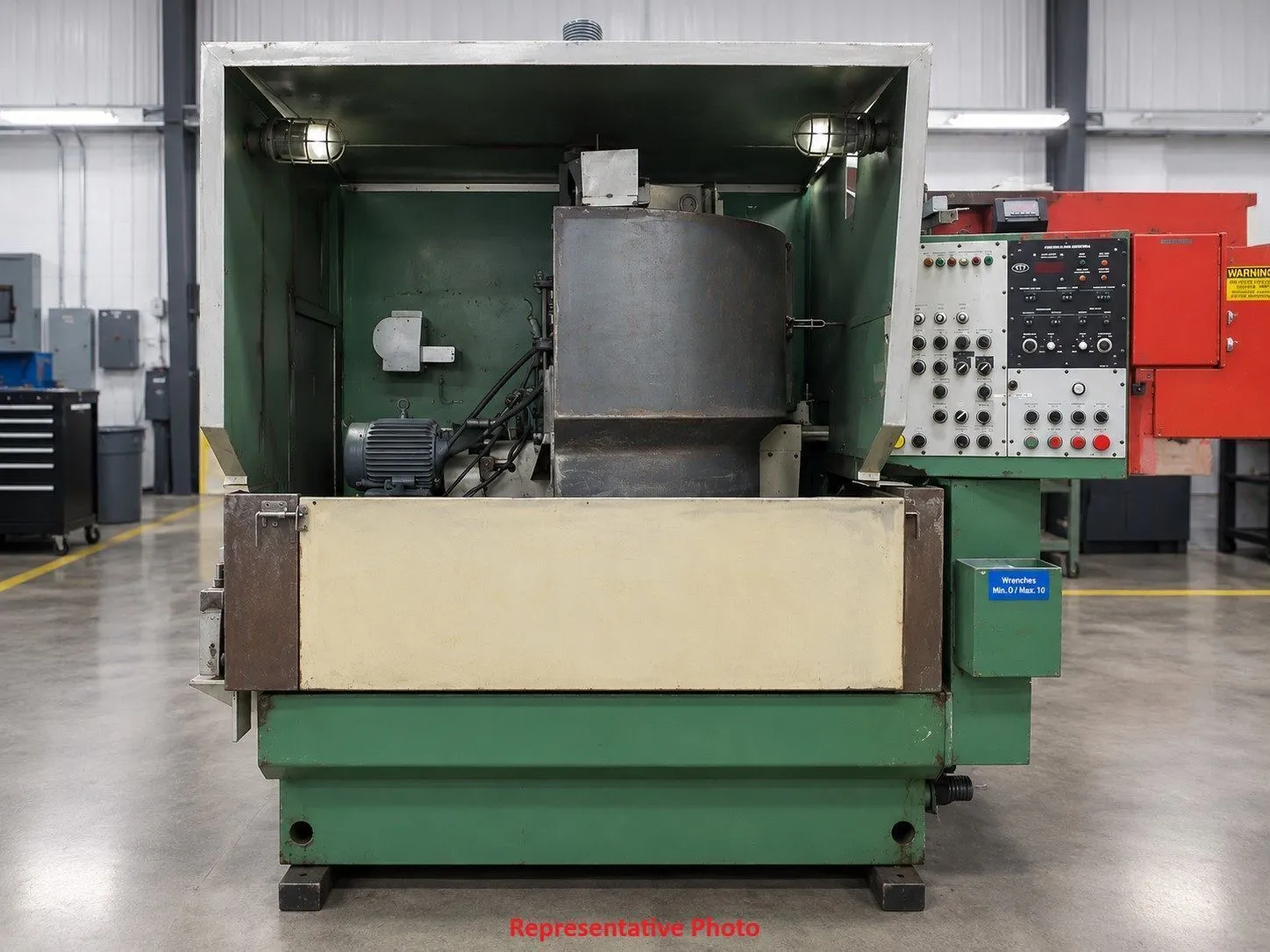

USED 1978 HEALD 2CF-91

2CF-91 CINCINNATI HEALD GRINDER
S/N 46915

STANDARD SPECIFICATIONS

CAPACITIES
Maximum outside diameter of work……………………………….. 8”
Minimum outside diameter of work……………………………….. 4”
Maximum length of work………………………………………… 2 1/2”
Maximum length of work with special chutes………… 3 1/2”
Maximum swivel of work……………………………………………….30”
Center of wheel spindle from floor…………………………. 42 1/2”

SPEEDSAND FEEDS
Table travel (total including runout)..…………………………….. 8”
Wheel wear compensation………………………. 004”on diameter (.0001”increments)
Work speeds – standard……………………… 153,191 280 RPM
High force(adjustable)….………………………………….30 – 300 lbs.

DRIVEAND POWER REQUIREMENTS
Backing plate motor………………………………………… 1/2 HP @ 280 RPM
Wheel head motor for belt drive……………………… 15 HP @ 3600 RPM
Hydraulic pump motor…………………………………………. 2HP @ 1800 RPM
Coolant pump motor (2)……………………………………………. 3/4 1/2 HP

GENERAL DATA
Overall height…………………………………………………………………..95 1/2”
Length and width of base on floor………………………………. 68” x 49”
Floor space (without coolant tank)………………………………. 91” x 79”
Floor space (without coolant tank)………………………………109” x 79”
Weight of machine – net (approximately)……………….. 11,000 lbs.
Gross weight crated (approximately)………………………….12,000lbs.

TOOLING
Radius diamond dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
