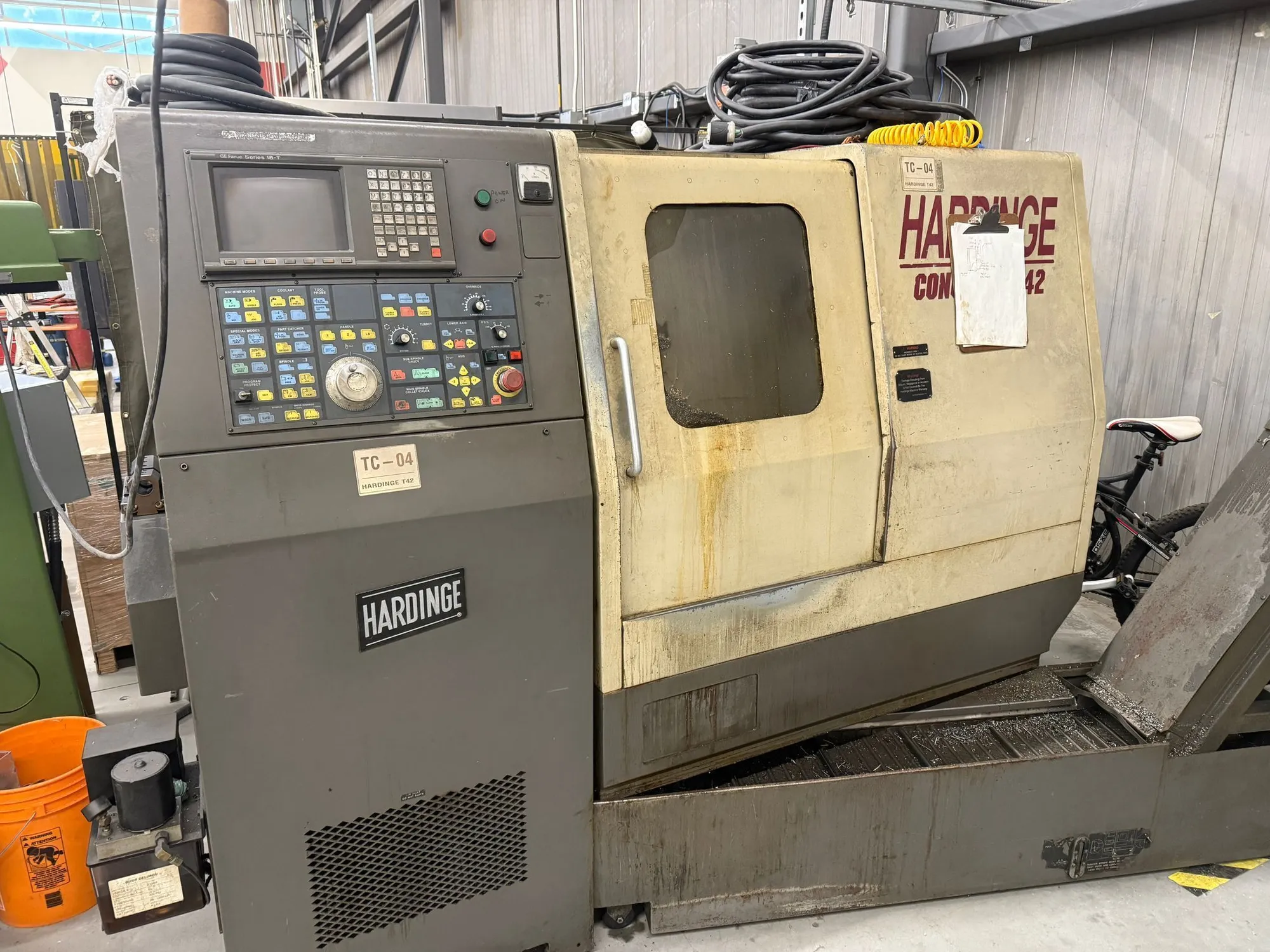

USED HARDINGE SG-42

HARDINGE SG-42 CNC TURNING CENTER

Manufacturer: Hardinge
Model: SG-42
Control: GE Fanuc 18-T

POWER: 230v, 60hz, 3ph

Specs:
Capacity

Swing Over Bed: 21.2 in (538 mm)
Max Turning Diameter: 9.5 in (241 mm)
Max Turning Length: 13.9 in (353 mm)
Bar Capacity: 1.625 in (42 mm)
Spindle Bore: 1.625 in (42 mm)
Chuck: 3 Jaw

Spindle

Spindle Nose: A2-5
Collet System: 16C
Spindle Speed Range: 50 – 5,000 RPM
Spindle Motor: 10 – 15 HP (7.5 – 11 kW depending on build)

Axes & Travels

X-Axis Travel: 5.3 in (135 mm)
Z-Axis Travel: 13.9 in (353 mm)
Rapid Traverse X: approx. 470 IPM
Rapid Traverse Z: approx. 630 IPM

Turret

Turret Stations: 12 Position
Tooling Type: Bolt-on tooling

Weight: 9,500 lbs

Dimensions: 90 in x 65 in x 67 in
