Heald 361-24" Surface Grinder, 24" Fork Pattern Chuck, 14" OD GW, 15 HP GWS
| Chuck Size | 24" | 609.6 mm |
| Size Capacity | 24" | 24" |
| Horz/Vert | Horz | Horz |
| Power | 15 hp | 11.2 kW |
| Swing | 28" | 711.2 mm |
| Under Wheel | 12" | 304.8 mm |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Dimensions | 115 x 79 | 115 x 79 |
| Weight | 12900 | 12900 |

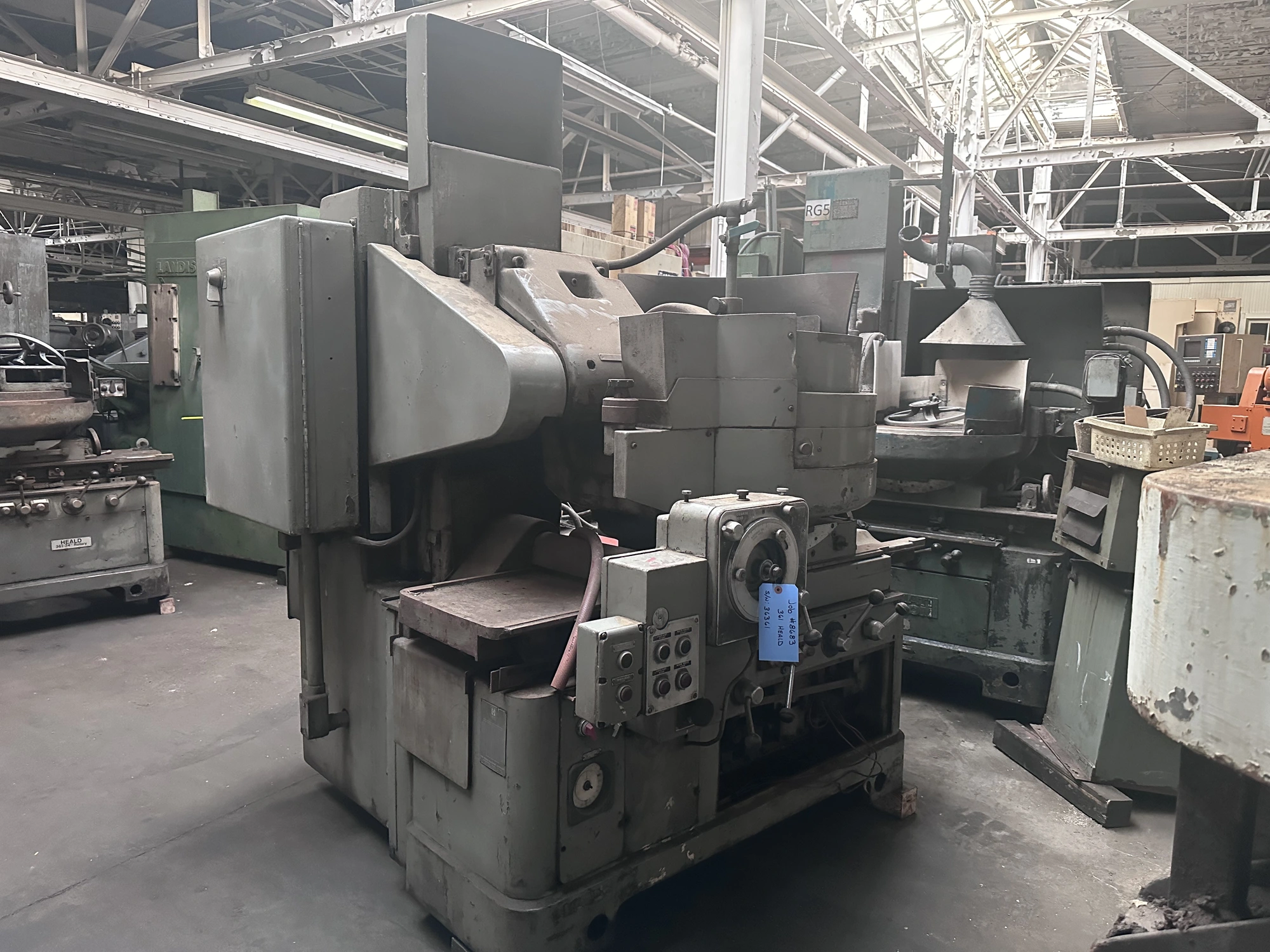

361-24” HEALD ROTARY SURFACE GRINDER
S/N 36361 YEAR: 1958
STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24"
Swing inside coolant .............................. 28"
Vertical range (full wheel) ....................... 12"
Convex............................................. 17 Degrees
Concave............................................ 10 Degrees
24" Chuck.......................................... 32 85 RPM
Table speeds Rapid traverse...................... 20 FPM
Rapid traverse..................................... 0 15 FPM
MOTOR & CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM
OVERALL DIMENSIONS
Floor space with coolant tank...................... 115" x 79"
Approximate net weight............................. 12,900 lbs.
EQUIPPED WITH
24" Diameter fork pull mag chuck Convex Concave
14" Diameter wheel Compensation
1 1/2" Wide wheel face Hydraulic table
28” Swing Inside Guards Push button station
Attached Electrical
Specifications are deemed accurate, however, subject to verification or prior sale.
