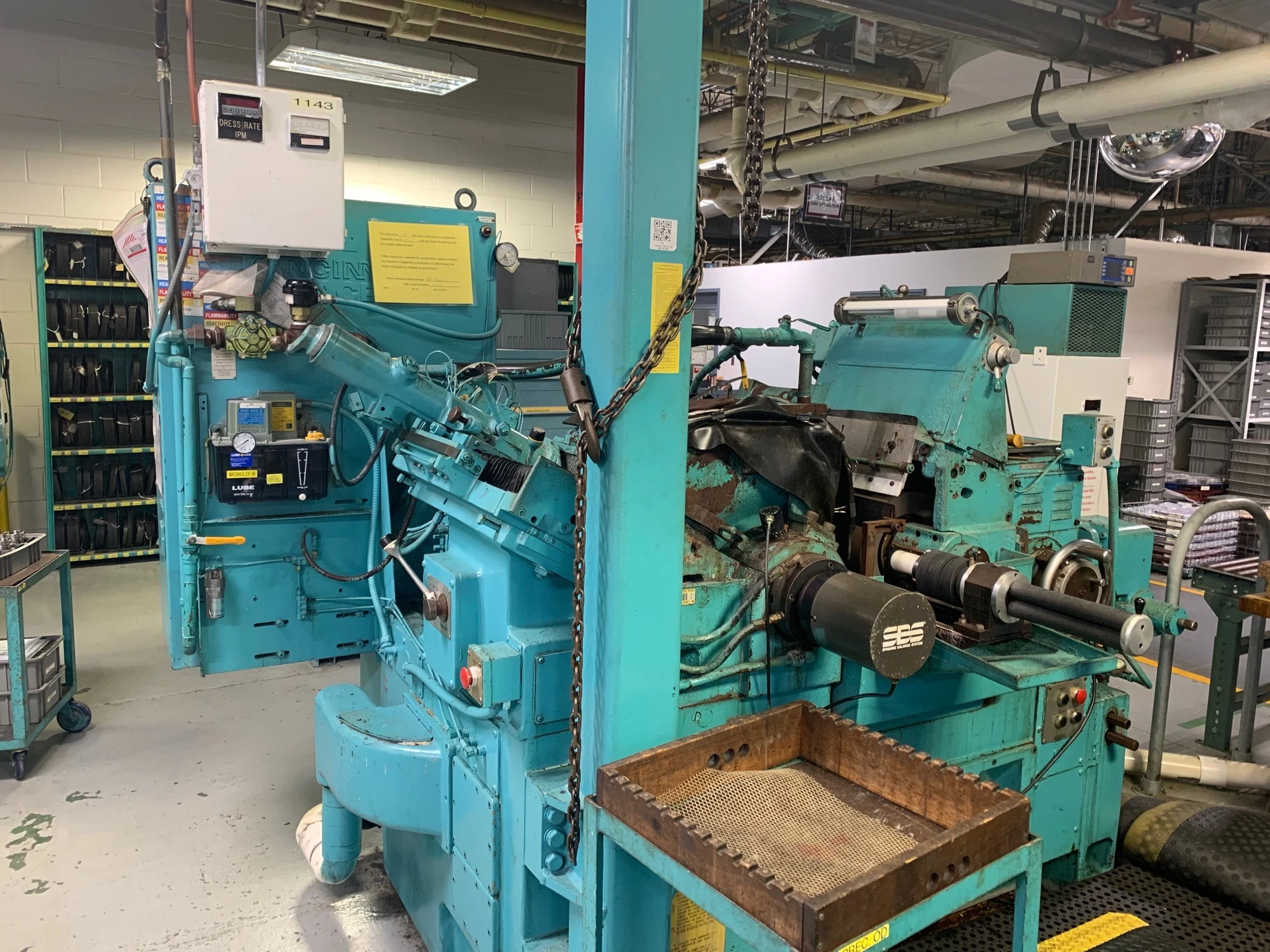

USED 1977 CINCINNATI #230-10

230‑10 CINCINNATITWIN‑GRIP GRINDER
S/N 350800077-0013 Year: 1977

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Standard thru feed infeed work rests......... 1/4 to 4 dia.

WHEELS
Grinding wheel............widths up to 10, 12 hole ‑ 24 dia.
Regulating wheel..........widths up to 10, 5 hole w/2 C.B.
in back. 1 1/2 C.B. in front ‑ 12 dia.

DRIVE
Grinding wheel drive........................... 30 HP
Regulating wheel drive motor................... 1 1/2 HP

REGULATING WHEEL SPEEDS
Number.........................................infinite
Range..........................................11 to 310 RPM

SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed
hand wheel graduated in........................ .000050

CUTTING FLUID EQUIPMENT
Individually motor driven cutting fluid pump
capacity.......................................50 gal/min.
Cutting fluid tank capacity.................... 150 gallons
WHEEL TRUING EQUIPMENT
Grinding wheel ‑ Hydraulic wheel profile diamond truing unit.
Regulating wheel ‑ Hydraulic profile regulating wheel truing unit.
Diamonds are not included as standard equipment.

FLOOR SPACE
Standard machine................................... 95 x 127 1/2

APPROXIMATE WEIGHTS DATA
Net weight......................................... 13,200 lbs.

EQUIPPED WITH
Servo transmission.
Cincinnati comp.
Auto lube.
Impact mechanism.
10” Thrufeed workrest.
Attached electrical panel.
1 Ton jib crane.

Specifications are deemed accurate, however, subject to verification or prior sale.
