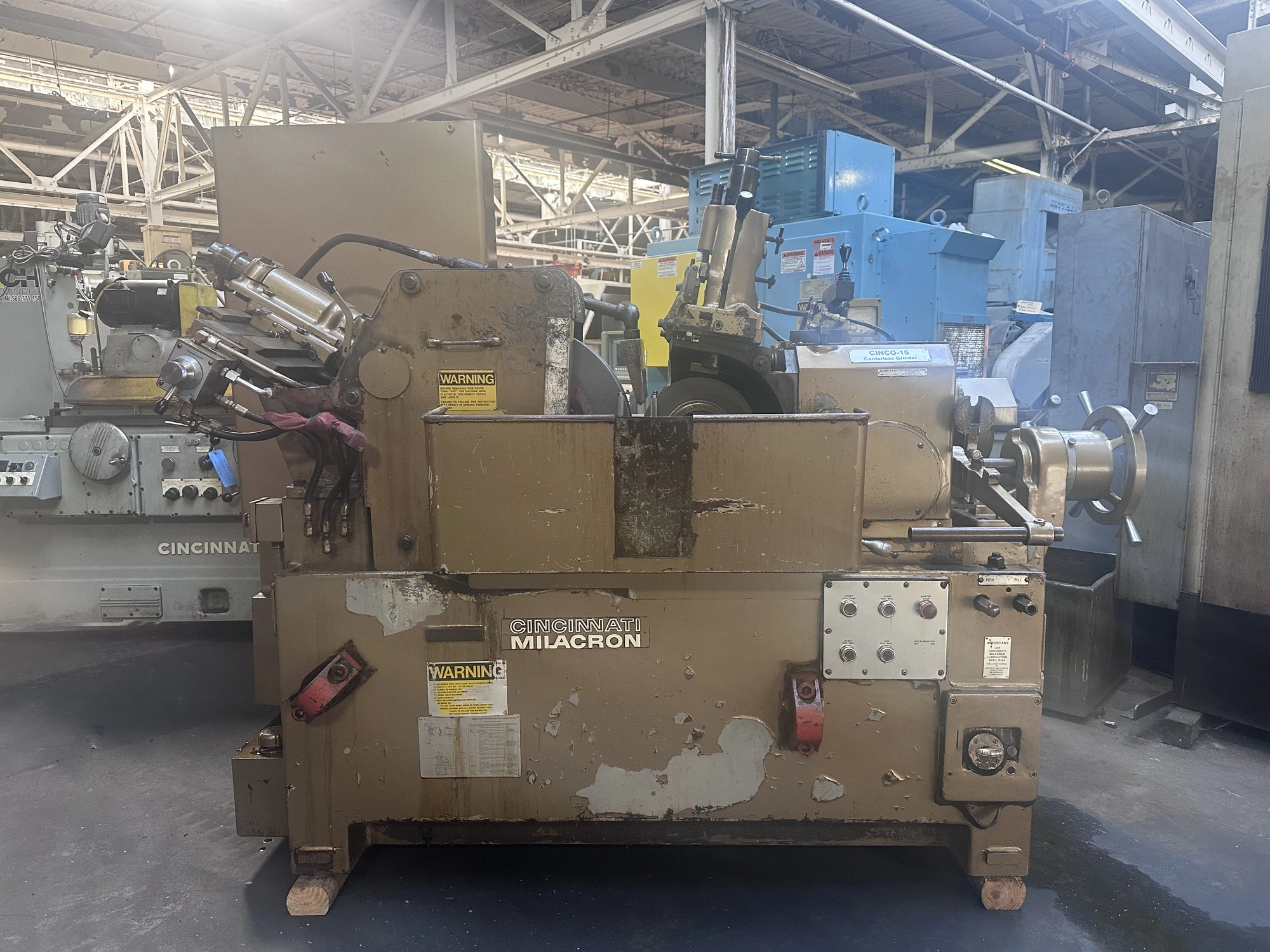

Cincinnati Cinco-15 24" Centerless Grinder, 24" Diameter x 8" Wide Grinding Wheel, 8" Thrufeed Workrest, Profile Grinding Wheel Truing
| Capacity | 3" | 76.2 mm |
| Size Capacity | 4.75 | 4.75 |
| Grinding Wheel Dia. | 24" | 609.6 mm |
| GW Power | 15 hp | 11.2 kW |
| GW RPM | 1,800 RPM | 1,800 RPM |
| Regulating Wheel Dia | 12" | 304.8 mm |
| RW Power | 1 hp | 0.7 kW |
| RW RPM | 1,200 RPM | 1,200 RPM |
| Weight | 9,500.00 | 9,500.00 |
CINCINNATI CINCO 15 24” CENTERLESS GRINDER
S/N 350200079-0029 YEAR: 1979
STANDARD CATALOG SPECIFICATIONS
Standard thru feed rest............. 3" dia.
Max. work diameter (Depending on which work rest is
ordered)........................................... 4 3/4"
WHEELS
Grinding Wheel Widths: Up to 8", 12" Hole
Maximum diameter:......... 24" Minimum diameter:.. 15"
Regulating Wheel Widths: Up to 8", 5" Hole
With 1 1/2" C.B. Back
Maximum diameter:......... 12" Minimum diameter:.. 9 3/4"
POWER REQUIREMENTS
Grinding wheel drive motor (1500 or 1800 RPM)...... 15 HP
Regulating wheel drive motor (1000 or 1200 RPM).... 1 HP
Hydraulic pump motor (1500 or 1800 RPM)............ 1 HP
Cutting fluid pump motor........................... 1/4 HP
REGULATING WHEEL SPEEDS
Number............................................. Infinite
Range.............................................. 15 to 300 RPM
CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................ 30 Gal. min.
Cutting fluid tank capacity........................ 65 Gal. min.
SIZING ADJUSTMENT
Accurate infeed adjustment by hand wheel. With fine adjustment & pull down handle.
(Pivot type) graduated in.......................... .001"
WHEEL TRUING EQUIPMENT
Hydraulic profile diamond for grinding wheel.
Hydraulic profile screw type diamond truing for regulating wheel.
*(Diamonds not included as standard equipment.)
Note: Rebuilt regulating wheel head from GCH Tool group.
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
