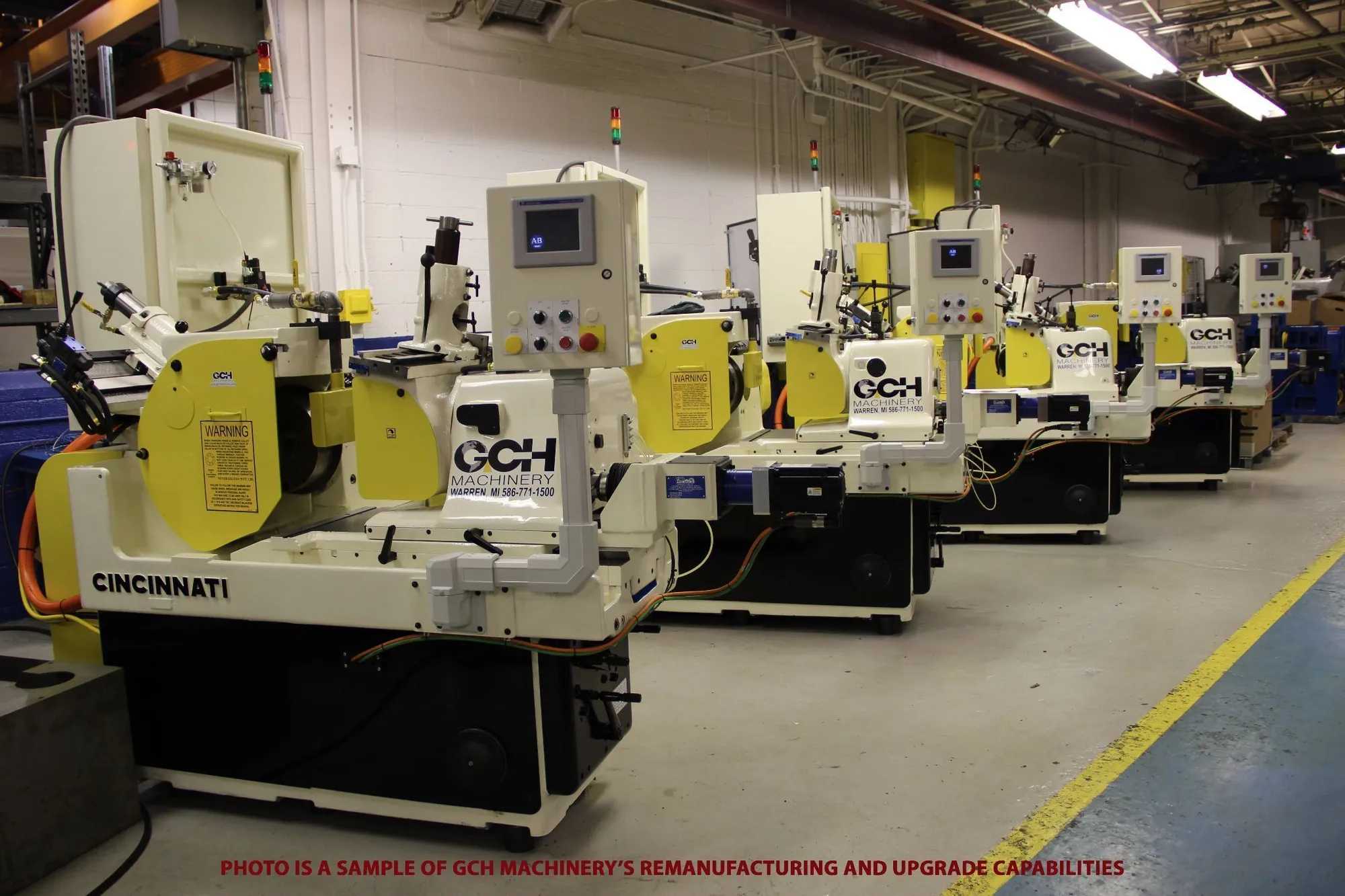

Cincinnati #2 OM 2M2H5A-232 Centerless Grinder. 3.5" capacity, 20" grinding wheel, 15 HP grinding wheel power, and 12" regulating wheel. Includes filmatic bearings and hydraulic contour truing.
| Capacity | 3.5" | 88.9 mm |
| Size Capacity | 3.5" | 3.5" |
| Grinding Wheel Dia. | 20" | 508 mm |
| GW Power | 15 hp | 11.2 kW |
| Regulating Wheel Dia | 12" | 304.8 mm |
| RW Power | 1.5 hp | 1.1 kW |
| Dimensions | 53 x 86 | 53 x 86 |
| Weight | 6400 | 6400 |
#2 "OM" CINCINNATI CENTERLESS GRINDER
S/N 2M2H5A-232
STANDARD CATALOG SPECIFICATIONS
CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest...................... 1/16" to 3 1/2" dia.
Low thru feed work rest................. 2" to 4 3/4" dia.
Bar work................................ 1/8" to 2" dia. 18" long
GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 12"
Maximum diameter................................... 20"
Minimum diameter................................... 14"
REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 5"
Maximum diameter................................... 12"
Minimum diameter................................... 9"
MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid...................................... 1/4 HP
OVERALL DIMENSIONS
Floor space: ...................................... 53" x 86"
Weight............................................. 6,400 lbs.
EQUIPMENT & FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Screw-type contour truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Specifications are deemed accurate, however, subject to verification or prior sale.
