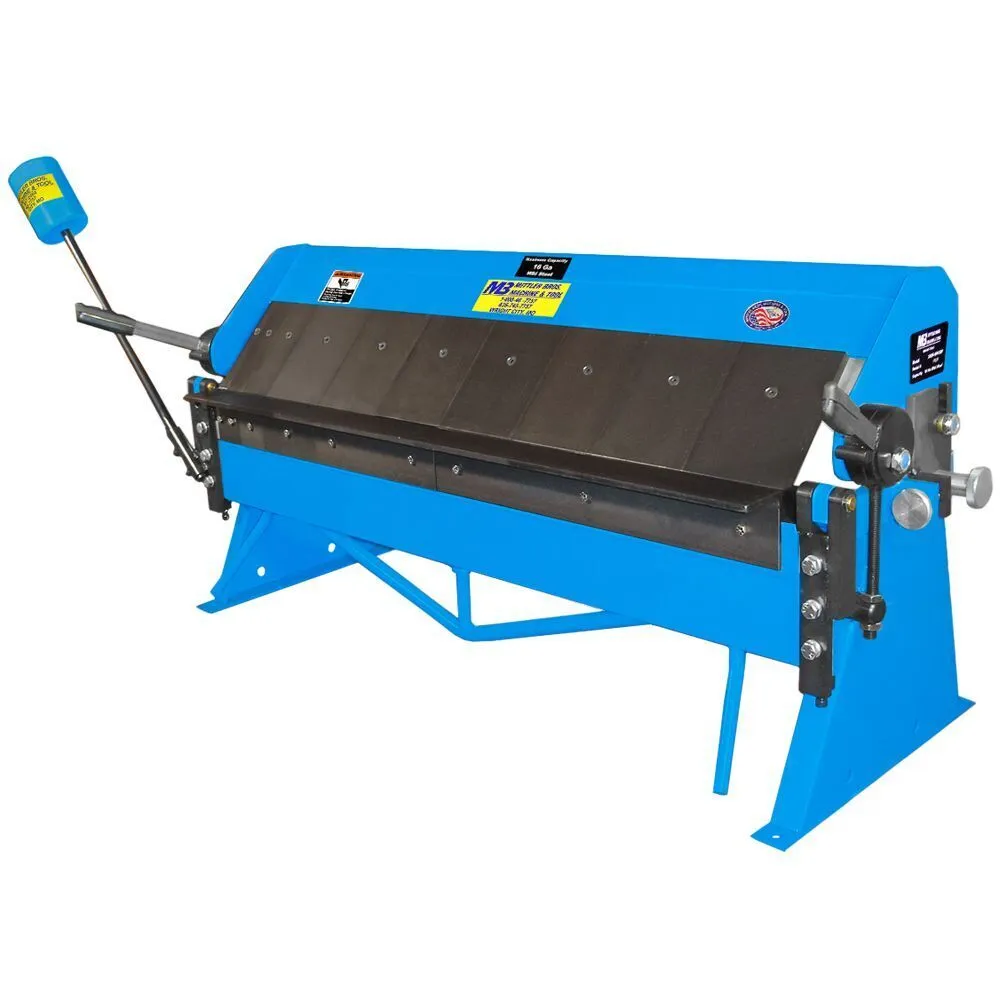

NEW MITTLER BROS ULTIMATE 48" 16 GAUGE
Overview
The ULTIMATE Box & Pan Brake has a unique “3 Finger” design. This design incorporates moveable fingers on the bed and apron as well as the usual upper fingers. This design allows the operator to make bend combinations that were extremely difficult if not impossible before. The ULTIMATE Box & Pan Brake has wrenchless upper set back adjustments and is designed to bend 16 gauge mild steel the full width with the included apron angle fingers. A complete set of upper fingers, bed fingers, apron angle fingers, and counterweight are standard equipment
Specs
Brand: Mittler Bros.
Model: ULTIMATE 48" x 16 GAUGE
Type: Box & Pan Brake
MAX CAPACITY:
16ga (.062") Mild Steel
20ga (.0375") Stainless
12ga (.080") Aluminum
Bending Length: 48" w/ 49" of Clearance
Machine Height 26"
3-1/2" Depth of Box
Max. 1-1/2" Lift of Beam Max.
125° Degree of Bend Max.
2" Down leg Max.
Front to Rear Adjustment: 1"
1/4" Reverse Bend Min. (with 1/4" Apron Fingers)
Radius Finger Kits Available
OPTIONAL ACCESSORIES::
- Stand Part # (2800-400) - + $310.00 (see photos)
TERMS:
FOB Wright City, MO - Includes Manufacturer’s Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
