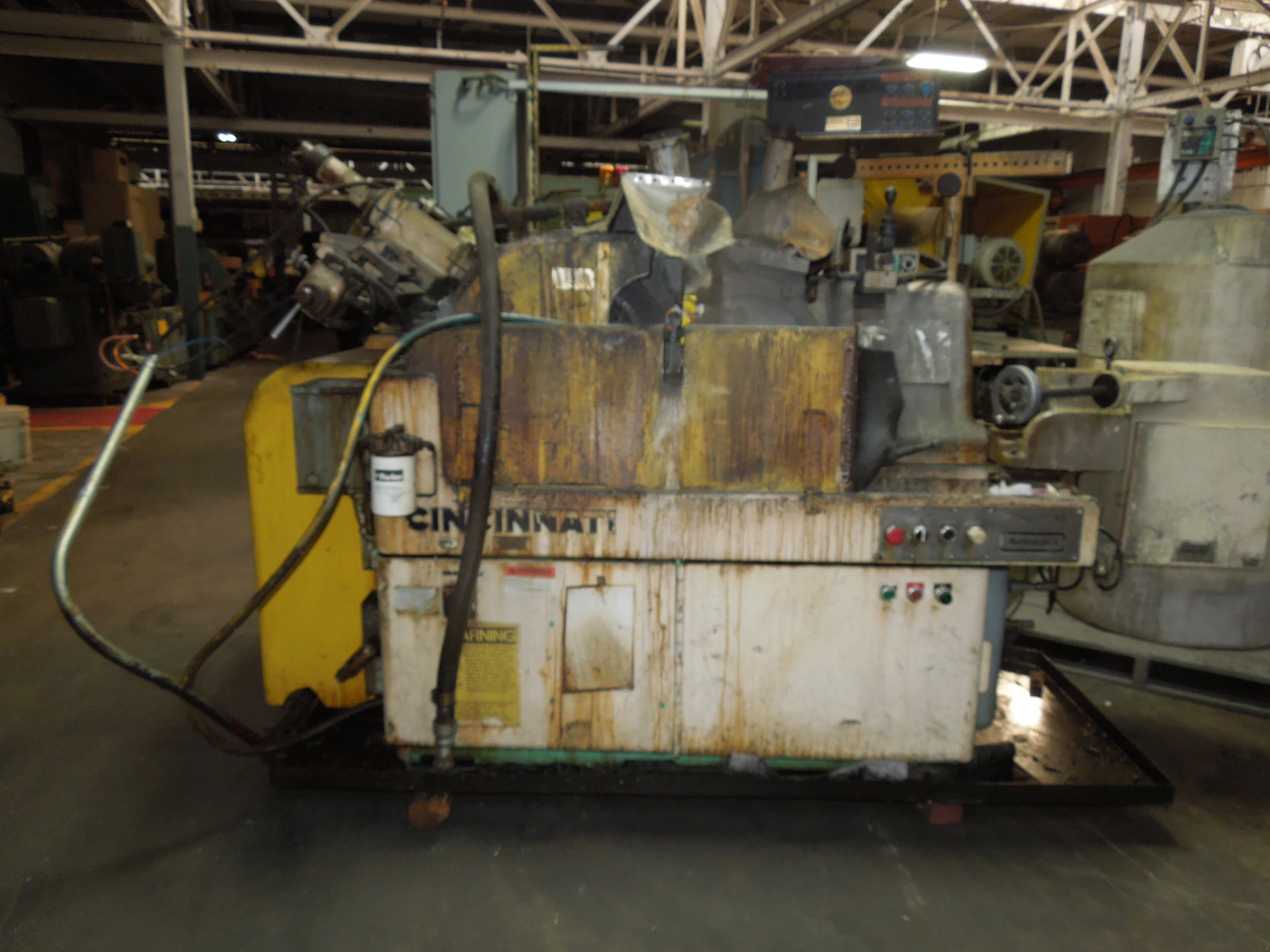

USED 1950 CINCINNATI #2 OM

Cincinnati #2OM Centerless Grinder, 20" OD GW, 6" Thrufeed Workrest, GCH Servo Infeed

#2 "OM" CINCINNATI CENTERLESS GRINDER

S/N 2M2H1W-374 Year: 1950

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest...................... 1/16" to 3 1/2" dia.
Low thru feed work rest................. 2" to 4 3/4" dia.
Bar work................................ 1/8" to 2" dia. 18" long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 12"
Maximum diameter................................... 24"
Minimum diameter................................... 14"

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 5"
Maximum diameter................................... 12"
Minimum diameter................................... 9"

MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid...................................... 1/4 HP

OVERALL DIMENSIONS
Floor space: ...................................... 53" x 86"
Weight............................................. 7,000 lbs.

EQUIPMENT & FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Hydraulic contour on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.

Specifications are deemed accurate, however, subject to verification or prior sale.
