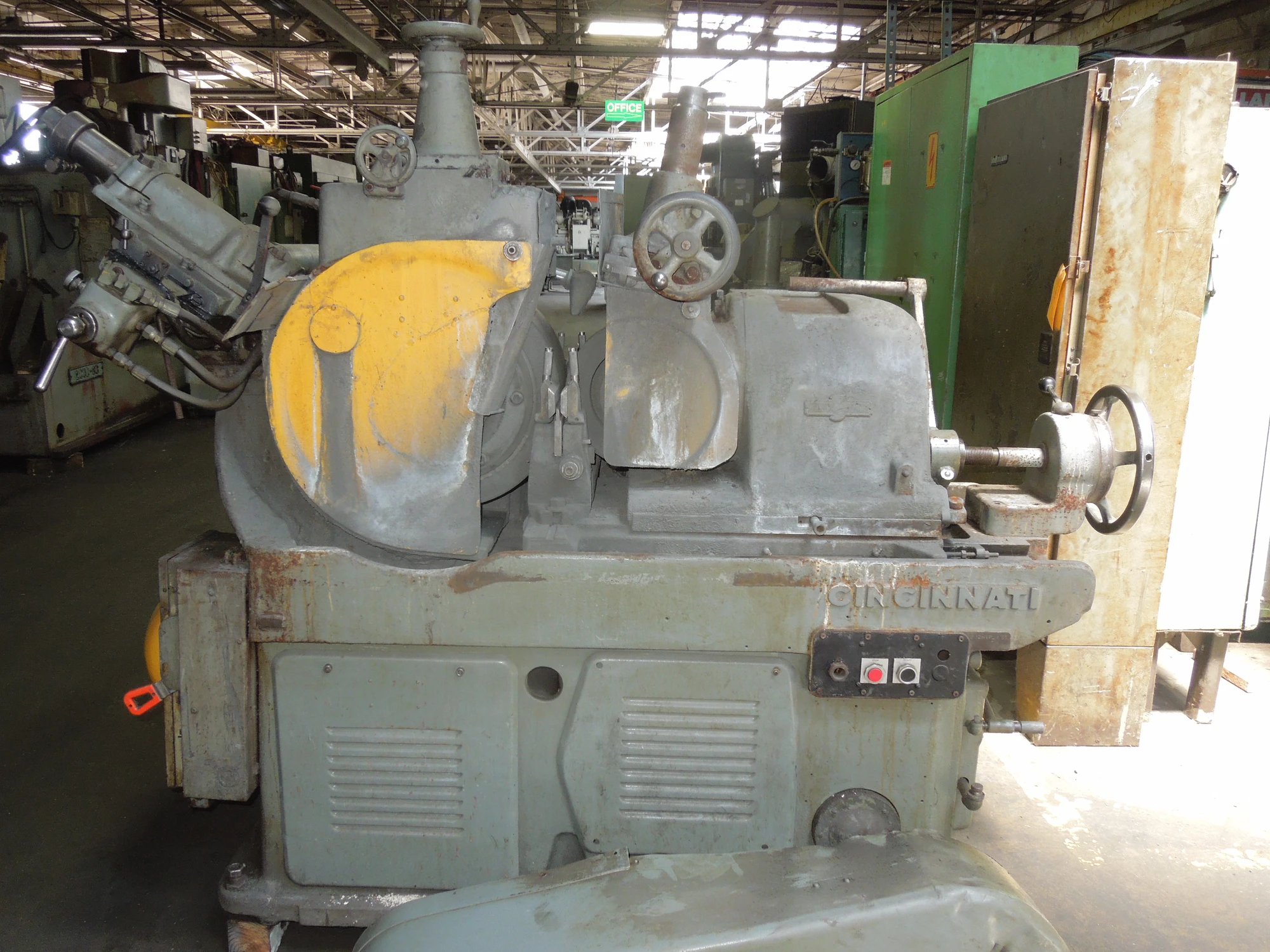

USED CINCINNATI #2 EA

#2 EA CINCINNATI CENTERLESS GRINDERS
S/N 2M2H1P-461

STANDARD CATALOG SPECIFICATIONS

CAPACITY(Depending on which work rest is ordered ‑
not included in price)
Standard work rest....................... 1/16 to 3 1/2 diameter
Low thru‑feed work rest.................. 2 to 4 3/4 diameter
Bar work......(18' Long)................. 1/8 to 2 diameter

GRINDING WHEEL (Not supplied)
4,6, or 8 Width ‑ 12 Hole
20Maximum diameter
14Minimum diameter
Speed ‑1200 RPM

REGULATING WHEEL (Not supplied)
4,6, or 8 Width ‑ 5 Hole
12 Maximum diameter
9 Minimum diameter
Range of speeds ‑ 12 to 300 RPM

MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53 x 86

Weight...................................7,000 lbs.
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic profile truing on grinding wheel.
Manual hand profile truing on regulating wheel.
Grinding wheel mount.
Regulating wheel mount.
Swivel taper adjustment on regulating slide.
Face attachment.
Pull down lever.
Coolant tank.
8” Thrufeed workrest.

Specifications are deemed accurate, however, subject to verification or prior sale.
