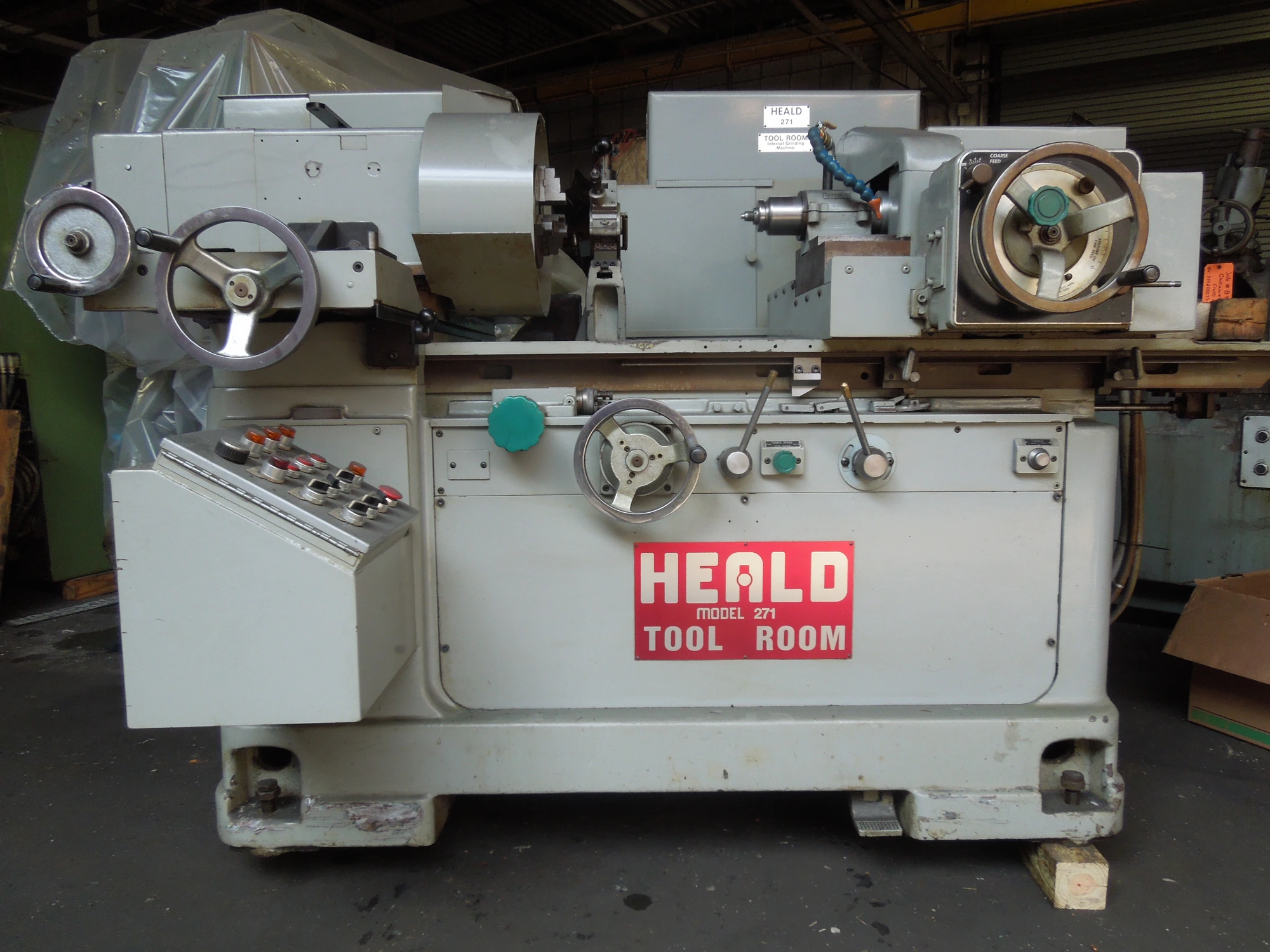

HEALD #271 toolroom internal grinder, 22" x 8" capacity, maximum hole diameter 9 3/4", works with various speeds, hydraulic pump, and Excello spindle. Equipped with manual/power table and more.
| Swing | 22" | 558.8 mm |
| Size Capacity | 22" X 8" | 22" X 8" |
| Max Grinding Bore | 9.75" | 247.65 mm |
| Stroke | 16" | 406.4 mm |
| Travel-Long | 16" | 406.4 mm |
| Workhead Swivel | 60 | 60 |
| Workhead Power | 1.5 hp | 1.1 kW |
| Wheel Power | 5 hp | 3.7 kW |
| Workhead Speed | 400 RPM | 400 RPM |
| Dresser | Yes | Yes |
| Dimensions | 91 X 87 | 91 X 87 |
| Weight | 9200 | 9200 |
271 HEALD TOOLROOM INTERNAL GRINDER
S/N 271-TR-6207-4
STANDARD SPECIFICATIONS
CAPACITIES
Swing over table (straight work on center line)........ 22"
Swing inside of standard coolant guard................. 12"
Maximum length of hole that can be ground.............. 8"
Maximum diameter of hole that can be ground............ 9 3/4"
Maximum included angle of taper........................ 60 degrees
Center of chuck spindle from floor..................... 45 1/2"
Work head spindle flange (std)......................... 9 5/8"
Hole through work head spindle......................... 1 15/16"
Table travel........................................... 16"
Work head cross slide travel:
Front.....................6" Rear..................... 11 1/2"
SPEEDS & FEEDS
Table speeds for grinding unlimited between........ 0 - 18 FPM
Rapid traverse of table............................ 18 FPM
Work head speeds - approximate................ 400-266-200-133 RPM
One turn of cross feed-hand wheel............. .050" on diameter
Roughing cross feed (adjustable).... .0001" - .0006" on diameter
Finishing cross feed (non-adjustable)......... .001" on diameter
One turn of work slide hand wheel.................. 100"
DRIVE
Hydraulic pump motor, 60 cycles a-c....... 1 1/2HP, 1800 RPM
Work head motor, 60 cycles a-c............ 1 1/2, 1 3/4, 1/2 HP
1800-1200-900-600 RPM
Wheel head motor, 60 cycles a-c............ 5 HP, 3600 RPM
Coolant pump motor 60 cycles a-c........... 1/2 HP, 1800 RPM
GENERAL DATA
Capacity of oil tank.......................... 15 gallons
Capacity of standard coolant tank............. 55 gallons
Length and width of base on floor............. 66 1/4" X 28 1/8"
Floor space: (total)
With or without coolant tank.................. 91" X 87"
Net weight of machine (approximate)........... 8,200 lbs.
Gross weight, crated (approximate)............ 9,100 lbs.
EQUIPMENT & FEATURES
Excello 20,000 RPM spindle.
Manual single point diamond dresser.
Manual or power table.
4 Speed work head.
4 Position positive stop.
Head stock jog.
Specifications are deemed accurate, however, subject to verification or prior sale.
