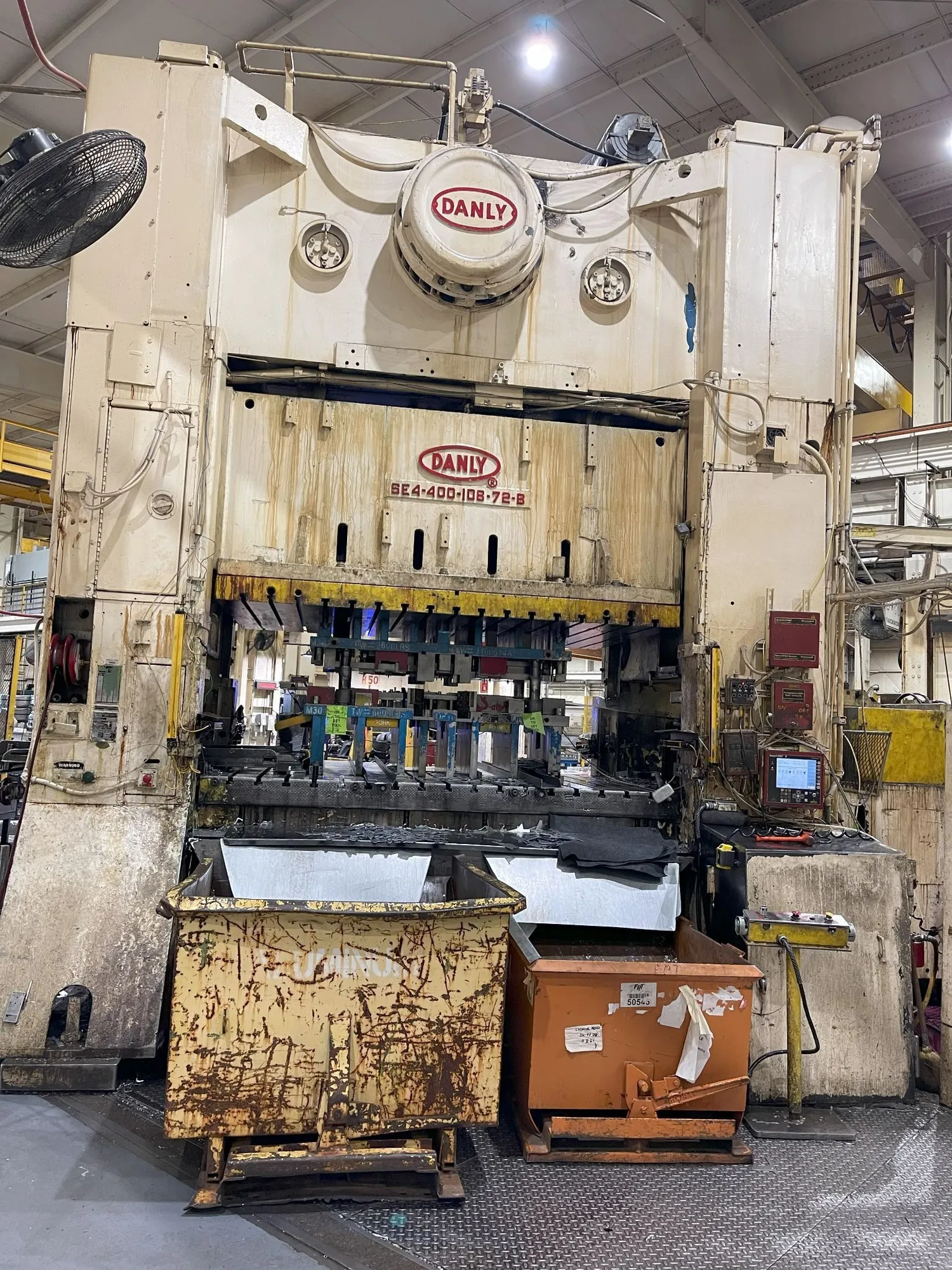

Danly 400 Ton Straight Side Mechanical Press, 108" x 72" Bed Area, 12" Stroke, 42" Shut Height, 20 - 40 SPM
| Tonnage | 400 T | 362.874 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 42" | 1,066.8 mm |
| Bed area (Left to right) | 108" | 2,743.2 mm |
| Bed area (Front to back) | 72" | 1,828.8 mm |
| SPM min. | 20 strokes/min. | 20 strokes/min. |
| SPM max. | 40 strokes/min. | 40 strokes/min. |
| Adjustment | 10" | 254 mm |
| Windows Width | 36" | 914.4 mm |
Model Number: S4-400-108-72
Bed Area: 108” x 72”
Slide Area: 108” x 72”
Stroke: 12”
Strokes per Minute: 20-40
Shut Height: 42” over bed
Shut Height: 35” over bolster
Bolster Plate: 7” thick t-slotted plate
Slide Adjustment: 10”
Windows: 36” wide approx..
Footprint: 174” LR x 141” FB
Overall Height: 19’11 ½”
Floor to top of bed: 44”
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Bolster and Ram ( On 6” centers)
Dual Ross Air Valve
Wintriss Smart Pac 2 Press Control
Wintriss DSI 2 Die Protection
Wintriss Programmable Outputs
Wintriss Autoset Pac
8 Point Gibbing
Motors and Controls
Recirculating Lubrication System
Motorized Ram Adjustment
