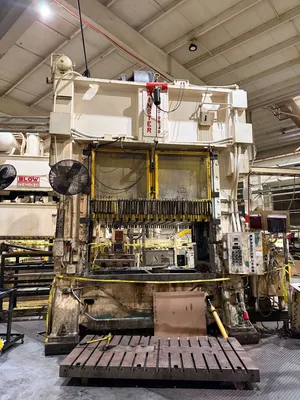

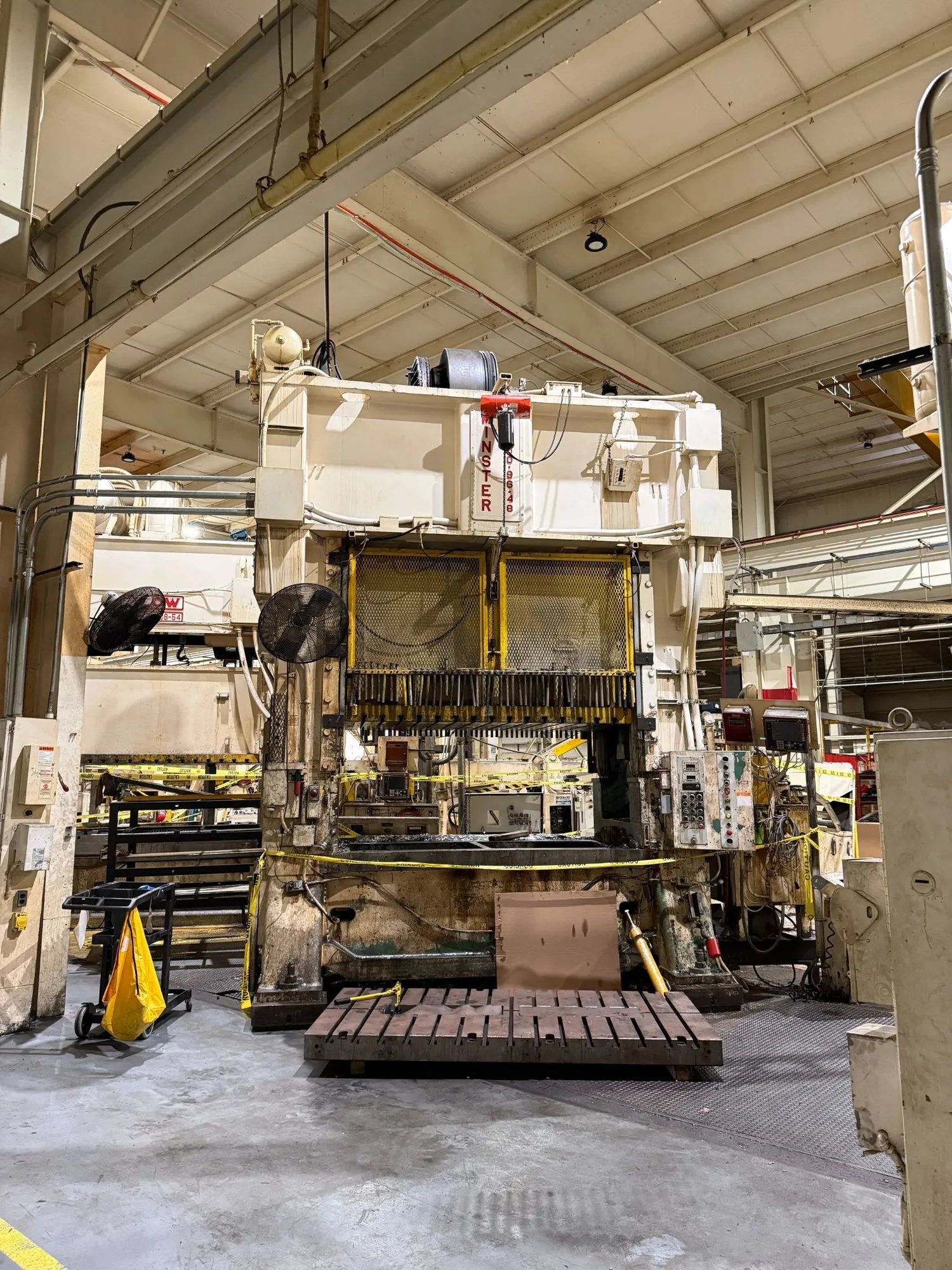

Minster 400 Ton HeviStamper Straight Side Mechanical Press, 96" x 48" Bed Area, 12" Stroke, 32" Shut Height, 0 - 70 SPM
| Tonnage | 400 T | 362.874 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 32" | 812.8 mm |
| Bed area (Left to right) | 96" | 2,438.4 mm |
| Bed area (Front to back) | 48" | 1,219.2 mm |
| SPM min. | 0 strokes/min. | 0 strokes/min. |
| SPM max. | 70 strokes/min. | 70 strokes/min. |
| Adjustment | 6" | 152.4 mm |
| Windows Width | 31" | 787.4 mm |
Model Number: E2-400-96-48
Serial #: E2-400-26813
Bed Area: 96” x 48”
Slide Area: 96” x 48”
Stroke: 12”
Strokes per Minute: 0-70
Shut Height: 32” over bed
Shut Height: 25” over bolster plate
Bolster Plate: 7” thick t-slotted plate
Slide Adjustment: 6”
Windows: 32” wide approx..
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Hydraulic Tie Rod Nuts
Recirculating Lube System
T-Slotted Ram and Bolster

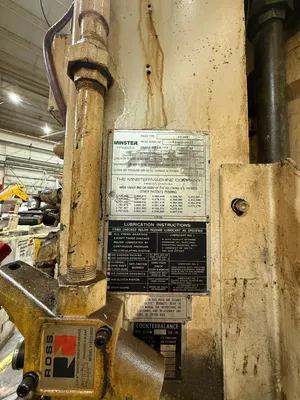

Dual Ross Valve
8 Point Gibbing
Floor Standing

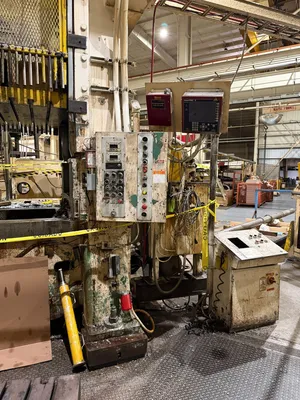

Motors and Controls
Wintriss Smart Pac Press Control
Wintriss Resolver
Wintriss Die Protection
Floor Standing Console Mounted
AC Variable Speed Drive and Motor
