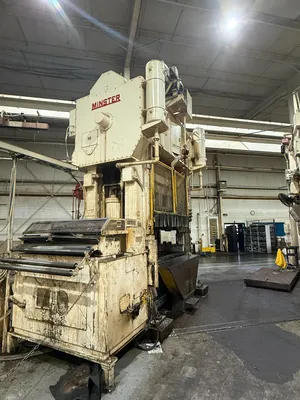

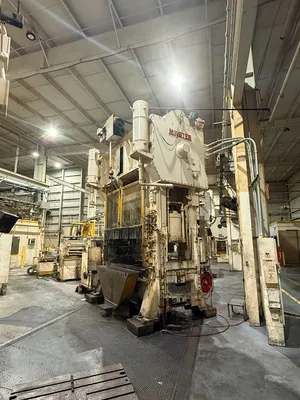

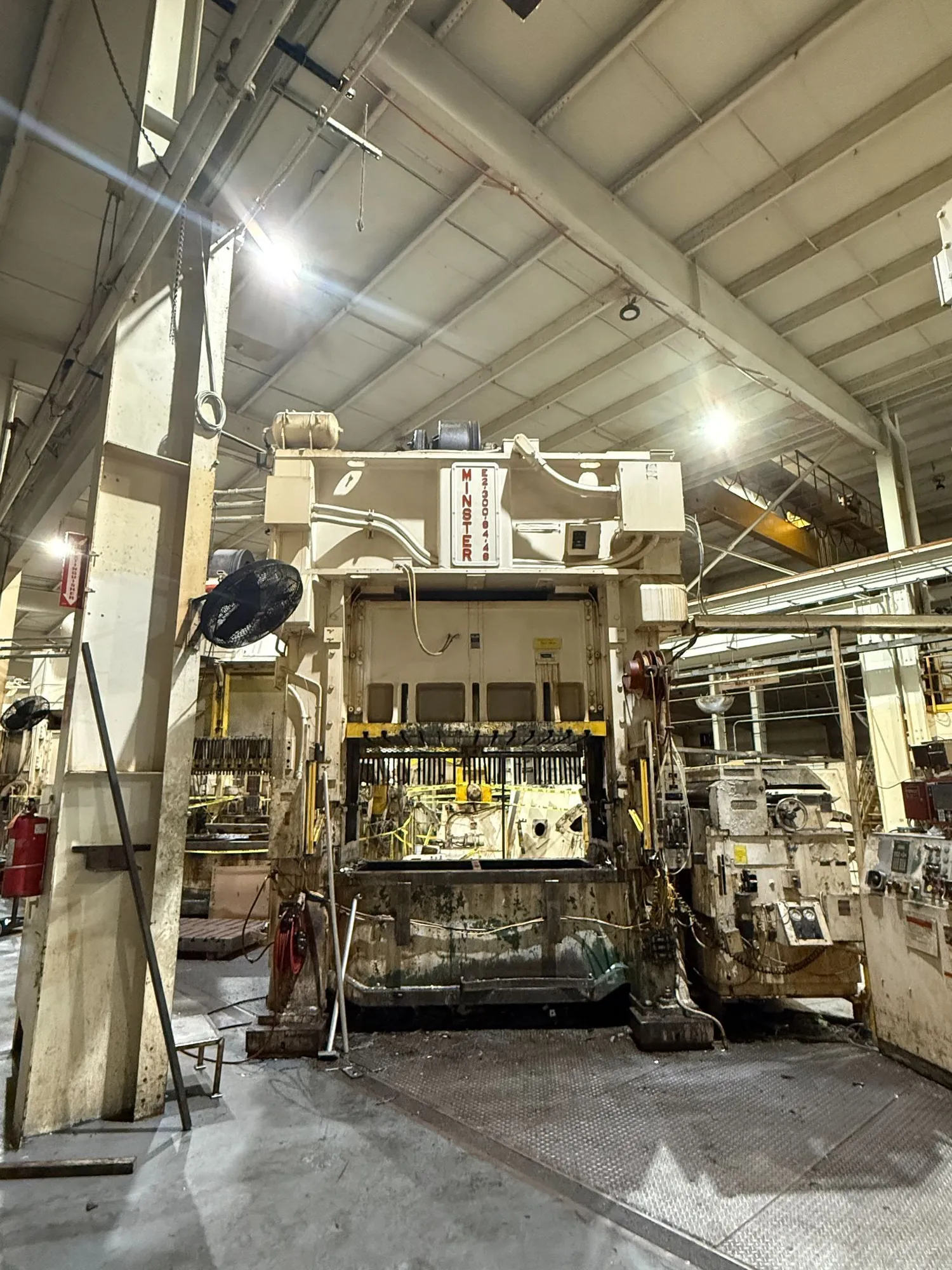

Minster 300 Ton HeviStamper, 84" x 48" Bed Area, 12" Stroke, 32" Shut Height, 0 - 80 SPM
| Tonnage | 300 T | 272.156 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 33" | 838.2 mm |
| Bed area (Left to right) | 84" | 2,133.6 mm |
| Bed area (Front to back) | 48" | 1,219.2 mm |
| SPM min. | 0 strokes/min. | 0 strokes/min. |
| SPM max. | 80 strokes/min. | 80 strokes/min. |
| Adjustment | 6" | 152.4 mm |
| Windows Width | 28" | 711.2 mm |

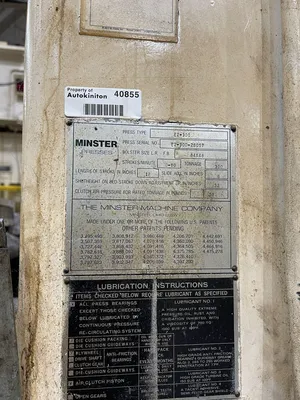

Model Number: E2-300-84-48
Year of Manufacture: 1986
Bed Area: 84” x 48”
Slide Area: 84” x 48”
Stroke: 12”
Strokes per Minute: 0-80
Shut Height: 32” over bed
Shut Height Over Bolster: 26”
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 6”
Windows: 27” wide
Main Motor: 50 HP @ 1800 RPM
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve

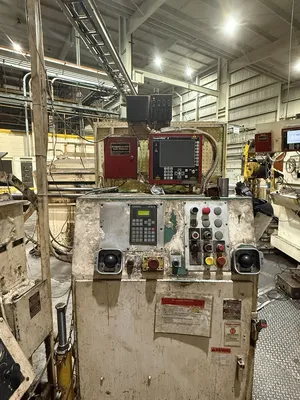

Wintriss Smart Pac 2 Press control
Vertical and Horizontal Light Curtains
Vari Speed Drive
8 Point Gibbing
Motors and Controls
Minster Monitor Flow Lubrication System
Motorized Ram Adjustment
Hydraulic Tie Rod Nuts
