| X | 41.3" | 1,049 mm |
| Y | 20.08" | 510.03 mm |
| Z | 20.08" | 510.03 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 21.6" | 548.64 mm |
| Table-L | 51.1" | 1,297.9 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix Nexus Control) | CNC (Mazatrol Matrix Nexus Control) |
| Dimensions | 113 x 111 x 112 | 113 x 111 x 112 |
| Weight | 15,180 | 15,180 |
Specifications (subject to buyer verification):
Controlled axis: 4
X-axis travel: 41.3”
Y-axis travel: 20.08”
Z-axis travel: 20.08”
Min/max distance spindle nose to table: 5.9” – 25.98”

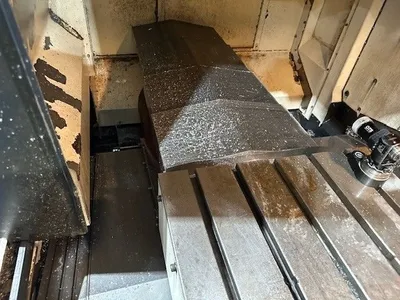

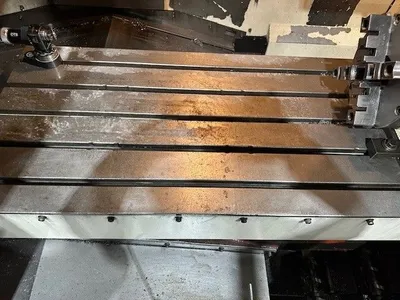

Table size: 51.1” x 21.6”
Spindle taper: CAT-40
Spindle speeds: 12,000 RPM
Spindle motor: 25 HP
ATC capacity: 30
Maximum tool weight: 17.8 lbs
Electrical requirements: 208 Volt; 83A; 30 KVA
Machine dimensions: 113" x 111" x 112"
Machine weight: 15,180 lbs
Equipped With (subject to buyer verification):

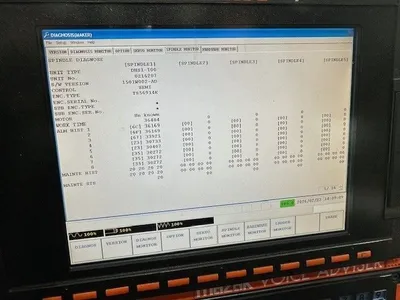

Mazatrol Matrix Nexus Control

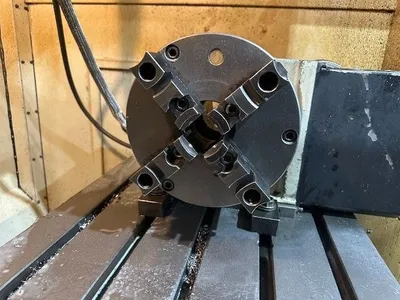

10” 4th axis rotary table

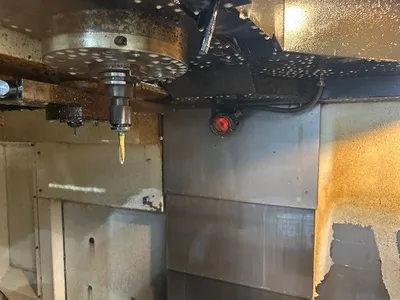

High pressure coolant thru spindle
Chip Conveyor
