X Axis Travel: 39.3″
Y Axis Travel: 21.653″
Z Axis Travel: 19.68″
Rapid Rate X Axis: 1,414 IPM
Rapid Rate Y Axis: 1,414 IPM
Rapid Rate Z Axis: 1,179 IPM
Table Size: 43.3″ x 19.685″
Max Table Load: 1,540 LBS
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 BT
Tool Changer: 30 ATC
Dimensions: 88″ x 97″ x 112″
Weight: 26,000 LBS
Equipped With:

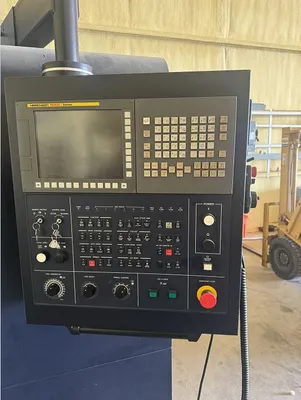

Fanuc Oi-MF Plus Control
Side or rear-mounted swarf conveyor
Spindle Chiller
| X | 39.3" | 998.22 mm |
| Y | 21.653" | 549.99 mm |
| Z | 19.68" | 499.87 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 BT | 40 BT |
| Table-W | 19.685" | 500 mm |
| Table-L | 43.3" | 1,099.8 mm |
| Control | CNC | CNC |
Category: Industrial
Year: 2021
Brand: Hwacheon
Location: Lubbock, TX
