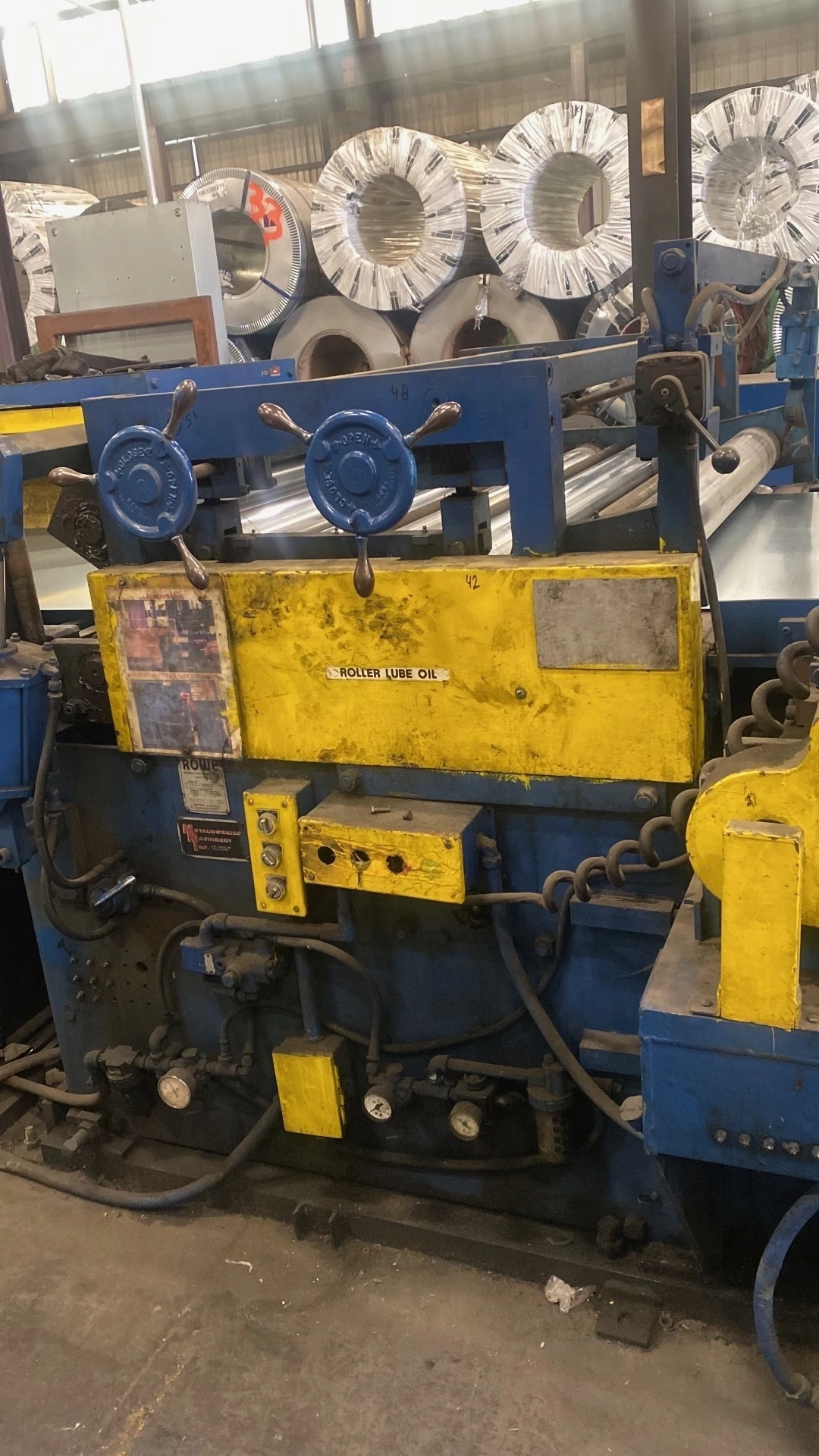

USED ROWE - HERR VOSS 60" x .135" x 40,000Lb CTL Line
Overview
Specifications
Make: Rowe / Herr Voss
Material Width: 12" - 60"
Material Thickness: .020" - .135"
Weight Capacity: 40,000Lb
Coil ID: 20"
Coil OD: 72"
Sheet Max Length :16'
Direction: Left to Right
Entry Coil Car
Floor Standing V-Type Design
Powered Lift & Traverse
Control Panel
Mandrel Uncoiler
4-Leaf Mandrel
Powered Hold-Down Roll
Motorized Expansion
Feed-Up Motor
Sliding Base
Coil Straightener
Driven Pinch Rolls
Six (6) Adjustable Work Rolls
DC Motor Drive
Herr-Voss 6-Hi Precision Leveler
Work Roll Width: 66"
Work Roll Diameter: 1.75"
Number of Work Rolls: 19
Number of Back Up Flights: 7
Powered Work Rolls Adjustment
125HP DC Motor Drive
Electrical Controls
Feed-up Unit
Wysong Mechanical Shear
High Speed: 300 SPM
Bow Tie Blade Design
AC Motor Drive
Air Clutch & Brake
Run-Out Belt Conveyor
Positive Stop Measuring Unit
Sheet Stacker
Roller Arm Hydraulic Flipper Arms
Motorized Width Adjustment
Powered Lift Table
Driven Conveyor Rolls
Powered Run-Out Conveyor
Electrics, Hydraulics, Controls
