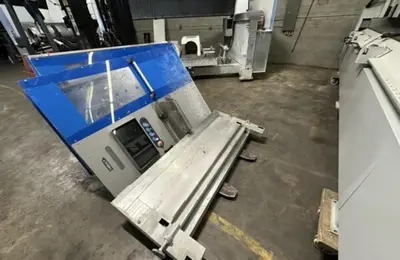

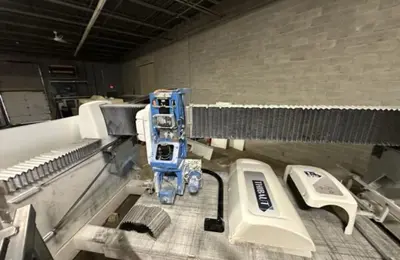

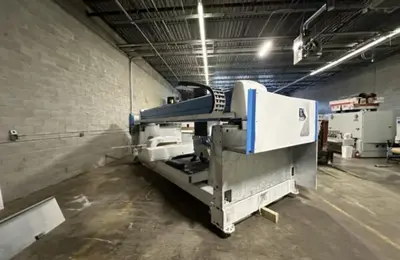

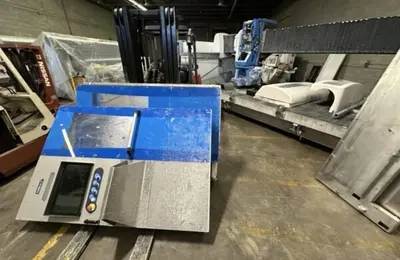

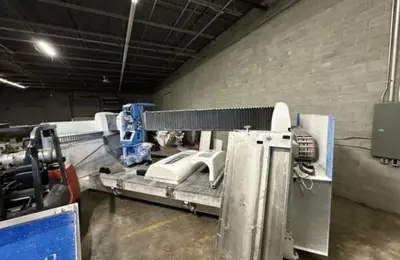

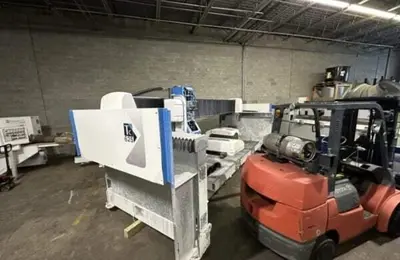

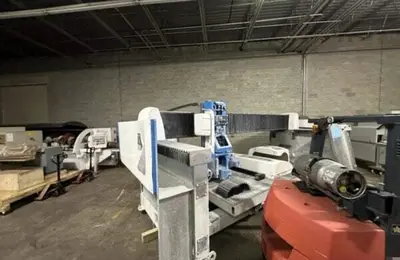

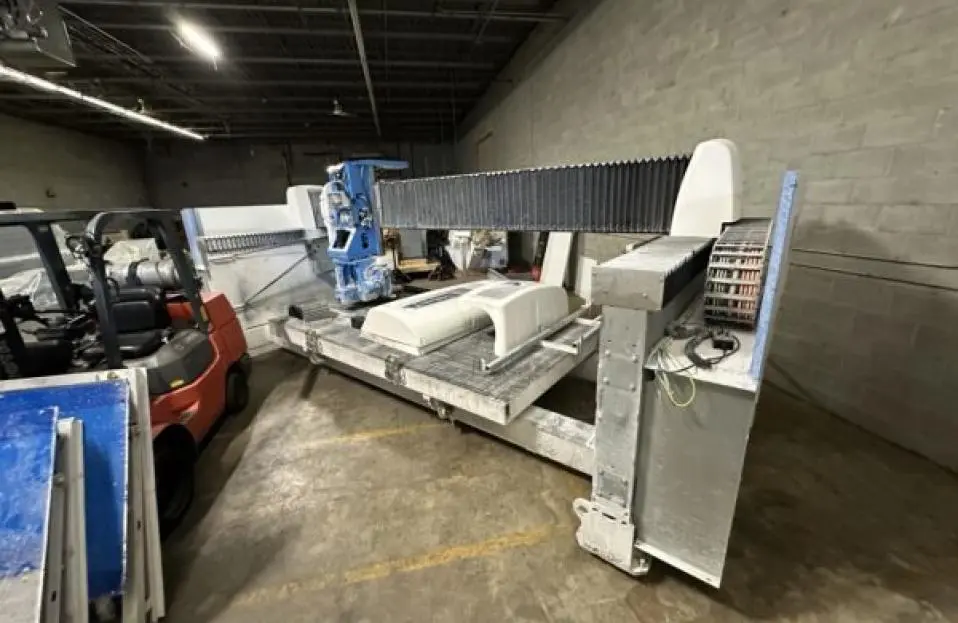

Thibaut T4 Monobloc TC625 Bridge Saw

Minimum disc diameter : 300 mm, 11.8″
Maximum disc diameter : 650 mm, 25.6″
Bore diameter : 60 mm, 2.36″
Flange diameter : 187 mm, 7.36″
X stroke : 3970 mm, 156.3″
Y stroke : 2300 / 3700 mm, 90.55 / 145.6″
Z stroke : 500 mm, 19.6″
Maximum thickness : 200 mm, 8″
Spindle power : 13.2 kW (S6), 17.4 hp (S6), 88 Nm, 779 lbf.in
Spindle speed : 0 – 6000
Water supply : 25 l/min, 6.6 gal (US)/min
Air supply : 200 l/min > 6 bars mini, 53 gal (US)/min > 87 PSI
Power supply : 28.5 kW / 37.5 hp, 400 – 480 V, 50 – 60 Hz
Table dimensions : 3600 x 2000 mm, 141.7 x 78.7″
All-in dimensions : 6310 x 4770 x 3260 mm, 248.5 x 187.8 x 128.3″
Weight : 7700 kg
