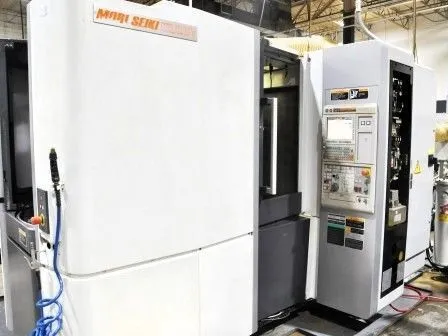

MORI SEIKI NHX4000 Horizontal Machining Center, New in 2011.
MSX-853IV Control.
1 Degree Table.
Chip Blaster (1000 psi)
Mist Collector.
Kurt 6" TriLock Tower (2 pcs)
Twin Pallet Changer
| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 26" | 660.4 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| Control | CNC (MSX-853IV) | CNC (MSX-853IV) |
General Specifications:
Spindle RPM- 12,000 RPM
X Axis Travel- 22"
Y Axis Travel- 25.9"
Z Axis Travel- 26"
Rapid Traverse Rate X- 2362 IPM
Rapid Traverse Rate Y- 2362 IPM
Rapid Traverse Rate Z- 2362 IPM
Number of Tool Stations- 40
Spindle Taper- CAT 40
Main Spindle HP- 40 HP
1 Degree Table
Chip Blaster (1000 PSI)
Mist Collector
Kurt 6” TriLock Tower (2 pcs)
Twin Pallet Changer
