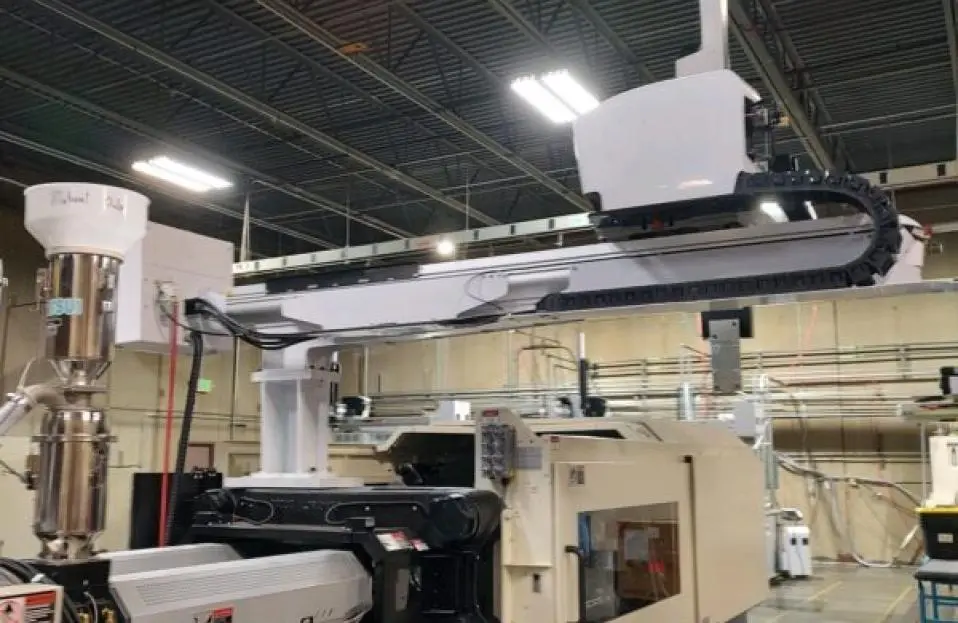

Nissei DCX200III-25A Injection Molding Machine

Complete with 2023 Matsui MJ3-50U-460 2Way Dehumidifying Dryer
Nissei Injection Molding Machine:
224 Ton Clamping Force
20.5 Inch Clamping Stroke
9.8 Inch Min Mold Thickness
30.3 Inch Max Daylight Opening
36.4 X 12 Inch Tie Bar Clearance
42.1×22.4 Inch Die Plate Dimensions
3.9 Inch Ejector Stroke
1.42 Screw Diameter
5.5 Oz Injection Capacity
37,000 Psi
Matsui MJ3-50U Dryer
MC5-G1-88L 230v Temp Controller
Matsui SMGL2-200U 2-HP Granulator
Harmo HRXIII-150SI-Ry Robot

Matsui Dehumidifying Dryer:
MJ3 Dew-point sensor
MJ3 HD suction nozzle: Suction Nozzle 38mm Gaylord
2-Machine Convey Y-Pipe Assy: MJ3-50/75 2-Machine Convey Y-Pipe
2-Machine Convey Branch Valve Assy: 38MM Branch Valve for MJ3 2-Machine Convey
Material Hose 38MM 30FT
Vaccuum 38MM 15FT
Jet Clone Receiving Hopper: Jet Clone JC-9 38x38
Aero-Power Hopper APH-3 2-Machine Convey
Proximity Sensors for 2-Machine Convey
Mounting Base 2-Machine APH/MVH-3/6

Category: Industrial
Year: 2023
Brand: Nissei
Location: Rockford, IL
