Used

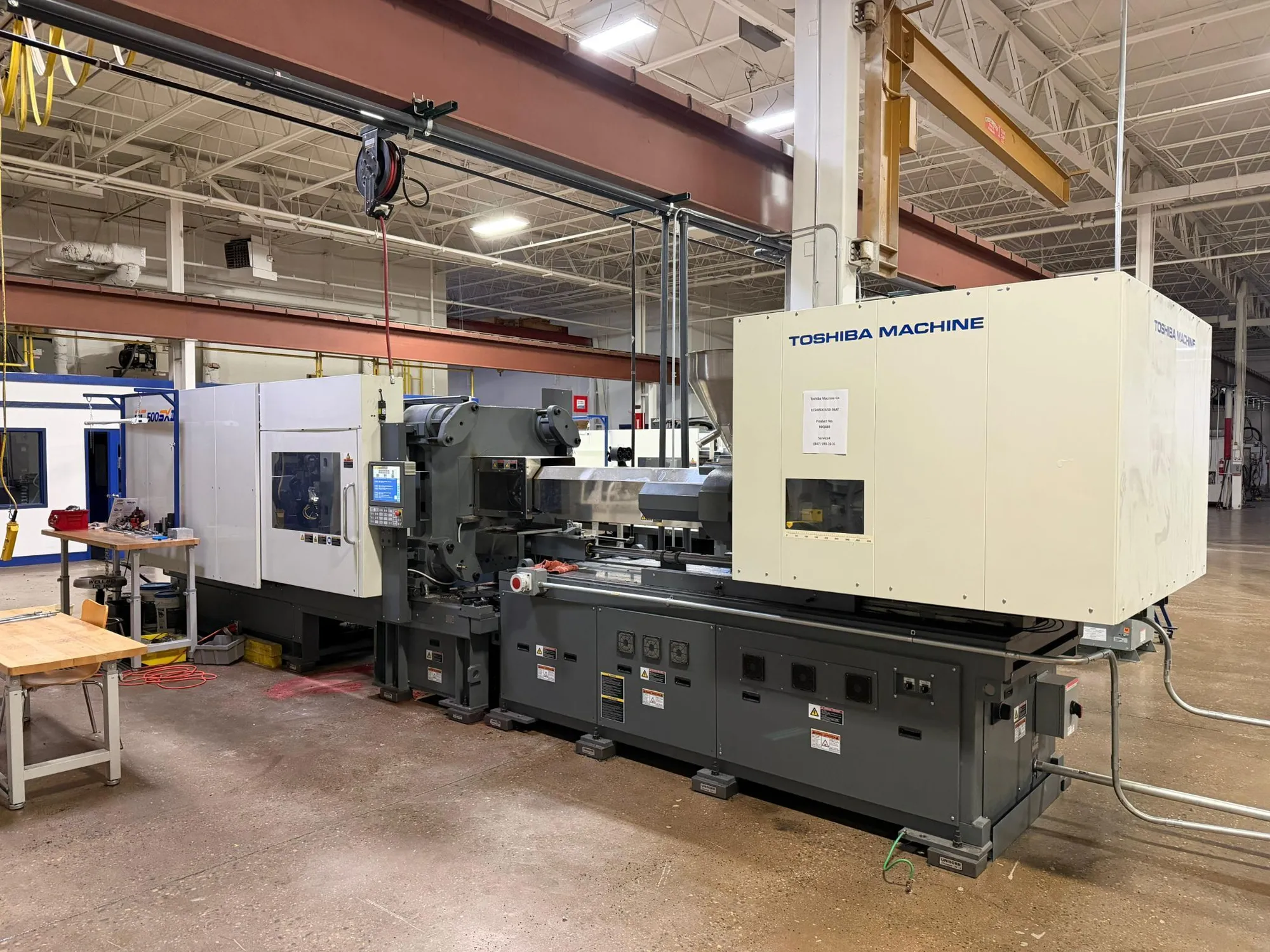

USED 2019 Shibaura Machine EC500SXIIV50-36AT
Canada
Specs
Type
All Electric
All Electric
Clamping Force Tonnage
500 T
453.593 t
Shot Volume (PS)
61 oz
1,729.3 g
Shot Volume (PE)
48.3 oz
1,369.3 g
Screw Diameter
3.15"
80.01 mm
Maximum Injection Pressure
27600 psi
Maximum Holding Pressure
27600 psi
Screw Speed STD
170 rpm
170 RPM
Screw Speed High Torque
115 rpm
115 RPM
Injection Rate STD
8,043 ft³/min.
227.8 m³/min.
Screw Torque STD
3310
3310
Screw Torque High Speed
4610
4610
Plasticizing Capacity (PS) STD
94.4 oz
2,676.2 g
Plasticizing Capacity (PS) High Torque
61.1 oz
1,732.2 g
Nozzle Touch Force
6.6 T
5.987 t
Tie Bar Distance H
34.2"
868.68 mm
Tie Bar Distance V
31.8"
807.72 mm
Platen Dimension H
48.4"
1,229.4 mm
Platen Dimension V
45.7"
1,160.8 mm
Clamp Stroke
31.5"
800.1 mm
Maximum Daylight
70.9"
1,800.9 mm
Mold Height Min
13.8"
350.52 mm
Mold Height Max
39.4"
1,000.8 mm
Ejector Force
14.3 T
12.973 t
Ejector Stroke
7.1"
180.34 mm
Power supply Volts
230
230
Main Breaker Electric Capacity
200
200
Heater Capacity
34.3 kw
34.3 kW
Injection Orientation
Horz
Horz
Hours
4,091 hr.
4,091 hr.
Control
CNC (InjectvisorV50)
CNC (InjectvisorV50)
Dimensions
28.0 x 7.0 x 7.2 Feet
28.0 x 7.0 x 7.2 Feet
Weight
26.4 US Ton
26.4 US Ton
