| Swing | 24.4" | 619.76 mm |
| Machining Length | 25.59" | 649.99 mm |
| # Axis | 3 | 3 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.99" | 101.35 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 16.53" | 419.86 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Okuma OSP-P100 CNC Control) | CNC (Okuma OSP-P100 CNC Control) |
| Dimensions | 106″ x 74″ (L x W) | 106″ x 74″ (L x W) |
| Weight | 12,200 lbs Approx. | 12,200 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

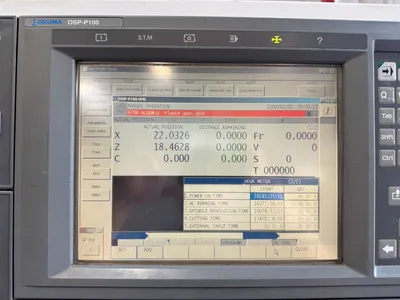

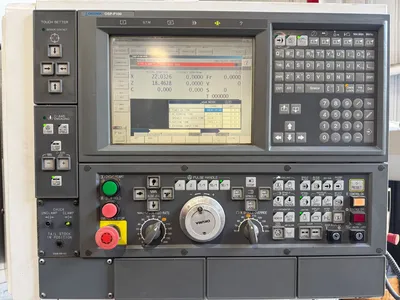

Okuma OSP-P100 Touch Screen CNC Control
13,401 Hours Cutting Time
Floppy Drive
USB Port & RS-232 Port

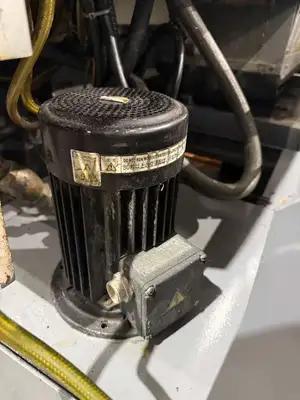

Coolant Tank
Specifications:
Max Turning Diameter: 16.53″
Max Turning Length: 25.59″
Swing Over Slide: 18.89″
Swing Over Bed: 24.40″
Max Bar Capacity: 3.99″
Travel:
X Axis Travel: 11.81″
Z Axis Travel: 26.57″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.33″
Spindle Speed: 3,000 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 3,000 RPM
Live Tool Motor: 7.5 HP
Turret Index Time: 1 Second
Tool Holders Type: VDI
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Diameter: 3.94″
Tailstock Quill Stroke: 5.90″
General:

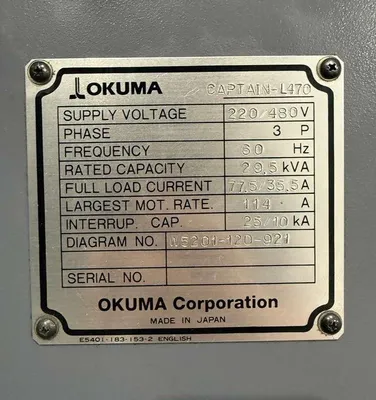

Power Source: AC 220/480 V, Three Phase, 60 Hz
Power Requirement: 29.5 kva
Floor Space: 106″ x 74″
Weight : 12,200 lbs Approx.

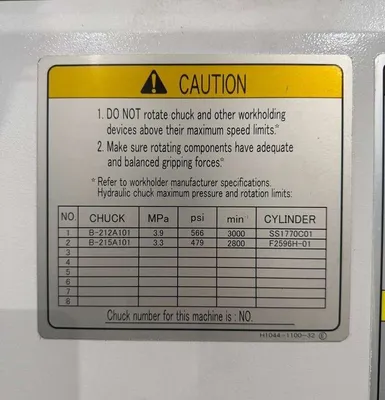

12″ 3-Jaw Kitagawa B-212 Hydraulic Chuck
12-Station Live Tool Turret
Servo Controlled C Axis on Spindle
Tool Presetter
Hydraulic Tailstock with Power Quill

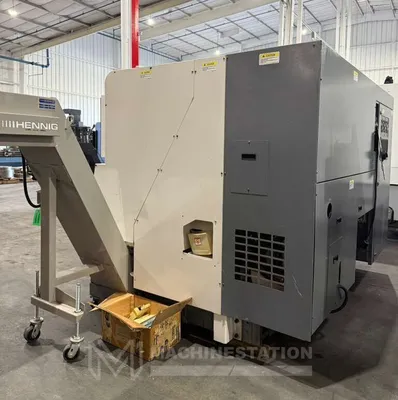

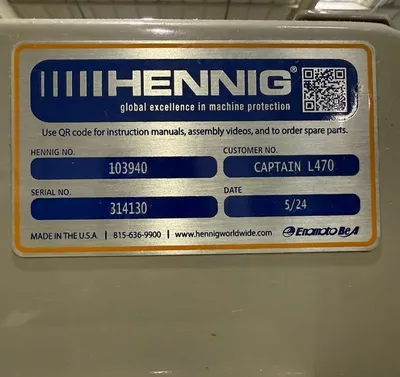

Chip Conveyor
Foot Swiches
Books & Manuals
