E-Quip Vat Dumper: All stainless steel T-304 construction, 72 Inch dump height, 3,000# capacity, 5 HP. Stainless steel remote hydraulic unit with covers and 5' hoses, NEMA 4 X SS Control Panel with Contactor. Up/Down push buttons and main disconnect, Polymer Bearings, SS hydraulic cylinders, 45 degree dump angle, Standard open bottom carriage, standard liner with #4 Finish. NEW.

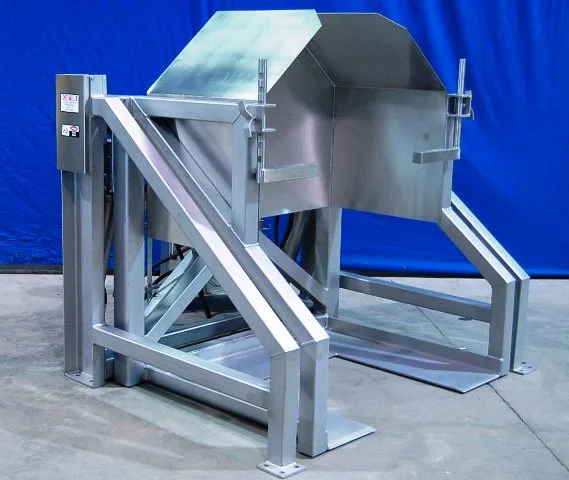

ONE (1) MODEL 601 HYDRAULIC PIVOT DUMPER
SPECS:
➢ 48” PIVOT/ 40” DUMP HEIGHT/ 116” MINIMUM CEILING HEIGHT.
➢ 3000 LB. CAPACITY.
➢ 5 HP REMOTE SS HYDRAULIC UNIT WITH COVER AND 5’ HOSES
FOR CONNECTING TO DUMPERS. (SHIPPED LOOSE)
➢ NEMA 4X SS 230V OR 460V CONTROL PANEL WITH CONTACTOR,
UP/DOWN PUSHBUTTONS AND MAIN DISCONNECT. (SHIPPED LOOSE)
➢ POLYMER PIVOT BEARINGS.
➢ SS HYDRAULIC CYLINDERS.
➢ ADJUSTABLE DUMP ANGLE UP TO 45 DEGREES OVER HORIZONTAL.
➢ ADJUSTABLE HOLD DOWN ARMS.
➢ HEAVY DUTY TAPERED LINER WITH ADJUSTABLE SLIDE GATE & SIDE
BLOCKS FOR APPLES.
➢ STANDARD OPEN BOTTOM CARRIAGE.
➢ ALL SS T-304 CONSTRUCTION WITH GLASS BEAD FINISH EXCEPT
LINER WHICH HAS A #4 FINISH.
