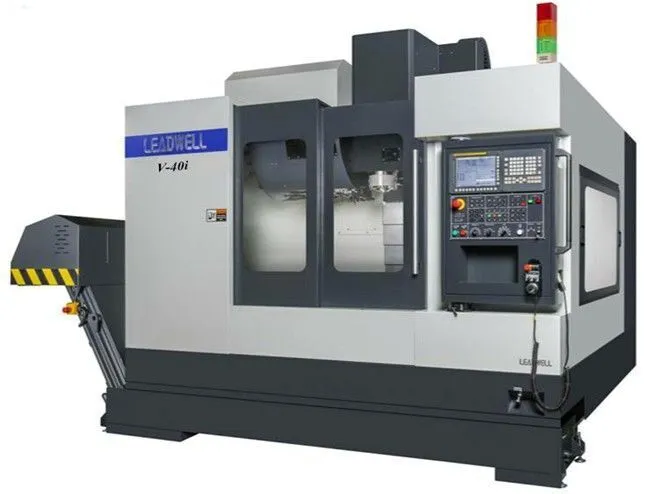

NEW 2026 LEADWELL V-40I

Specifications (subject to buyer verification):
Travels
X Axis 40”
Y Axis 25”
Z Axis 24.4”
Spindle nose to table top 3.9” – 27.9”
Spindle Center to Column 25”

Table
Size - 44” x 24”
T-Slots number, width, pitch - 6 x 0.709”x 3.94”
Maximum Load - 3,000 lbs.

Spindle
Spindle Motor - FANUC α15i AC Digital Spindle Motor
Horsepower - 34 HP 117ft/lbs @ 1500rpm
RPM Range 40  12,000
Spindle Bearing Type Hybrid Ceramic Bearings
Spindle Draw Bar Type - Collet Style
Retention System - Belleville Disc Spring
Clamping Force - 1,900 lbs.

ATC System
Tool Type - CAT-40 (optional BT-40)
Tool Selection - Bi-directional, Random Access
Tool Capacity - 30
Maximum Tool Diameter (w/o adjacent tools) - 3.2” (4.3”)
Maximum Tool Length - 9.8”
Maximum Tool Weight - 15.4 lbs.
Tool-to-Tool Time - 1.8 sec.
Chip-to-Chip Time - 6 sec.
Pull stud type 45' - MAS P40T-1

Feed Rates
X & Y / Z - 1417 IPM
Cutting Feed Rates - 800 IPM
Jog Feed Rates - 118 IPM

Axes Specifications
X & Y axes Ball Screws - 1.57” dia x .630” pitch
Z axis Ball Screw - 1.57” dia x .472” pitch
X, Y & Z axes Motors - 12.8Hp. Fanuc Alpha A/C Brushless*

Coolant Systems
Pump Motor Output - 1.13 Hp.
Pump Flow Rate - 7.1 gpm
Pump Pressure - 26.5 psi.
Tank Capacity - 125 gal.

Power and Air Requirements
220 VAC Line Voltage - AC 3 Phase
Power Consumption - 35 KVA ( 92 amps. @ 220 volts)
Air Requirement - 85.3 PSI Air Pressure @ 28 cfm Air Flow

General
Machine Net Weight - 13,668 lbs.
Floor Spacing (W x D x H) - 110” x 87” x 110”
Total Width With Auger Horn - 135”
Total Width With Chip Conveyor - 158”

Equipped with (subject to buyer verification):
Fanuc 0iMF Plus Control w/ 10.4” Color LCD display
2Mbyte of Program Memory
AICC II+ (200 blocks look ahead)
Fanuc Fine Surface Machining Package includes:
- Smooth Tolerance Control
- Jerk Control
- Machining Quality Level Adjustment Function
USB, PCMCIA, RS-232 & Embedded Ethernet Connections
Leadwell GUI Tool & Work Coordinate Setup Software
Renishaw GUI Software
34Hp spindle motor (117 ft/lbs@1500rpm)
12,000 RPM Spindle
Big Plus CAT #40 Spindle
Spindle Oil Chiller
CTS Preparation (w/ Rotary Union)
4th Axis Preparation
Auto power off
Air gun & coolant gun
