6.5" SUNNEN "MBB-1660" PRECISION HORIZONTAL HONE w/LN-650 MANDREL STORAGE CABINET - TOOLING - SUPPLIES
| Mandrel Dia. (min) | 0.06" | 1.524 mm |
| Mandrel Dia. (max) | 6.5" | 165.1 mm |
| Stroke (min) | 0.125" | 3.175 mm |
| Stroke (max) | 16" | 0.4 m |
| Horz/Vert | 'Horz' | 'Horz' |
| Weight | 650 lbs | 650 lbs |

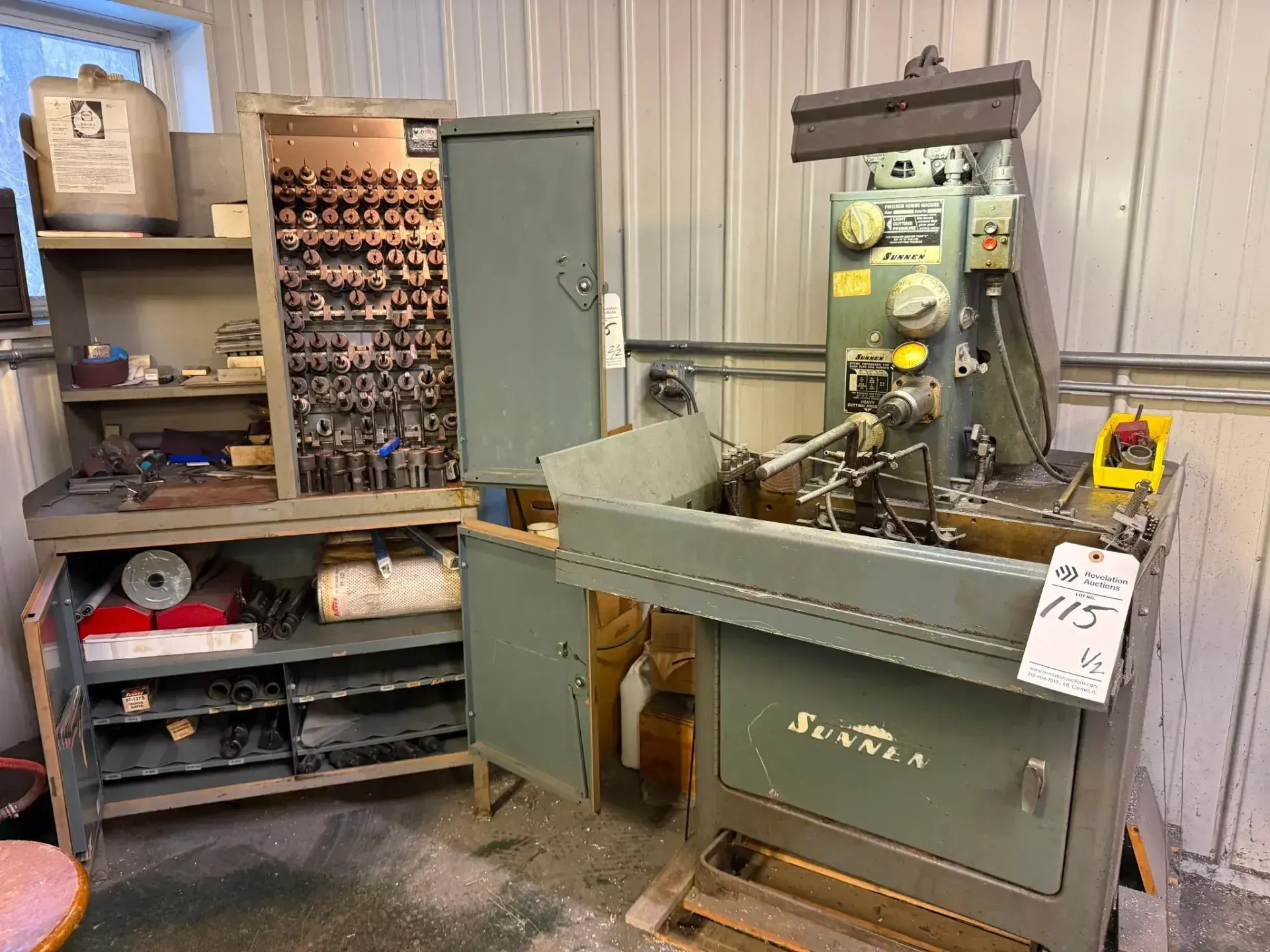

MBB1660 SUNNEN HORIZONTAL HYDRAULIC HONE
Serial No 83810, Model MBB1660
EQUIPPED WITH:
Self Energizing Band Type Spindle Brake
LN-650 Sunnen Mandrel Storage Cabinet
Tooling & Honing Supplies
CATALOGUE SPECIFICATIONS:
Diameter Capacity, Minimum .060"
Diameter Capacity, Maximum 6.5"
Work Length, Maximum 16"
(12) Spindle Speeds, Range 200 to 2500 RPM
Spindle Drive Motor, Horsepower 0.5 HP
Floor Space Required, W x D 2'6" x 5'
Overall Height 5'3"
Weight, Approximately 630 LBS
F.O.B. OUR WAREHOUSE
