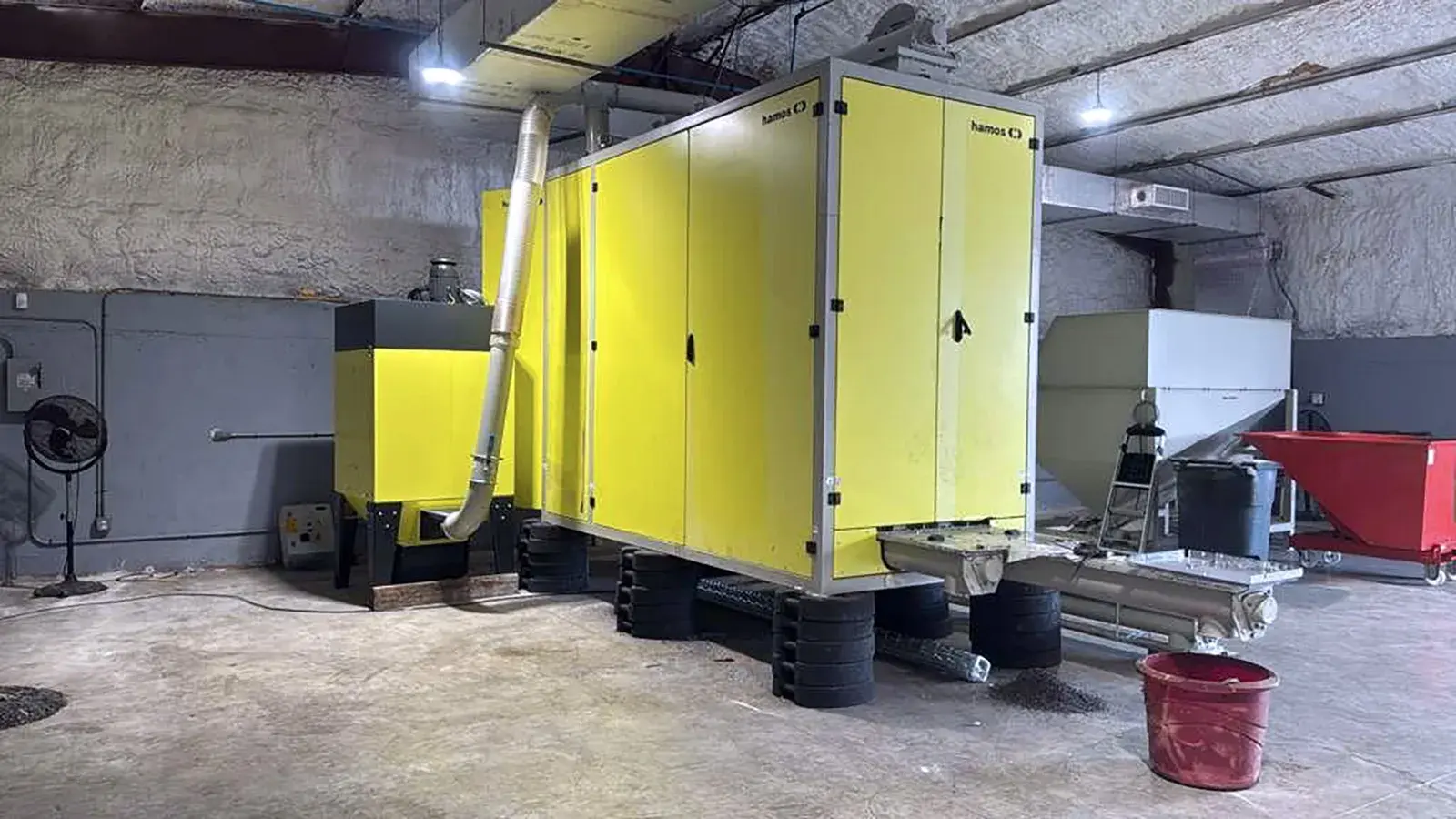

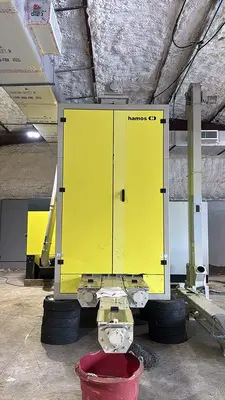

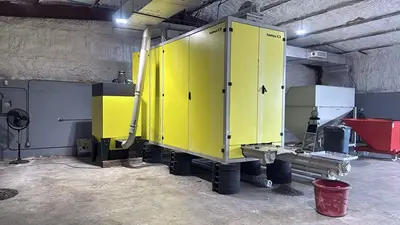

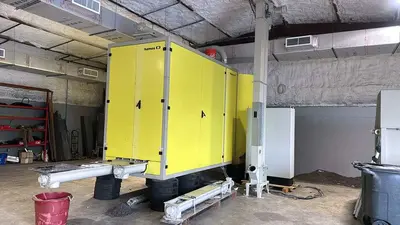

USED 2024 HAMOS KWS 2522‑2
Overview
The 2024 Hamos KWS 2522-2 Corona Electrostatic Separator is a complete recovery line with silo, elevator, and dust extraction system, designed for high-efficiency cable recycling operations. Installed after densimetric separation, it recovers the final 1–5% of residual metals—such as copper—from plastic mixtures. An ideal upgrade for cable chopping plants, increasing metal yield, improving material purity, and maximizing recycling profitability.
Specs
Touchscreen HMI control panel with real‑time monitoring and parameter adjustment
100 ft³ inlet storage silo
Bucket elevator for continuous feed loading
Primary feed transport screw from elevator to separator
Corona charging system (15000–30000 V)

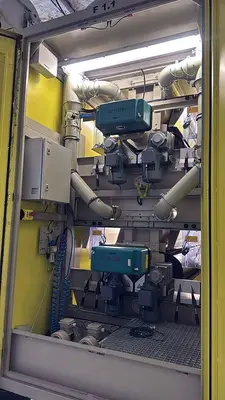

4 rotating separation drums
Adjustable electrode system
Integrated material distribution system
Three discharge transport screws for plastics - metals - and mixed residuals
Dust Extraction System
Full perimeter access doors for maintenance and cleaning
Steel support frame and platforms for the entire line Application: Cable recycling - Separation of metals inside plastic mixtures
Throughput: Approx. 1.3 metric tons/hour
Input size: 0.08–0.4 in (2–10 mm) granulate
Separation voltage: 15,000–30,000 V
Separation efficiency: 95–98% (material‑dependent)
Inlet silo, 100 ft³ capacity
Electrical Requirements: 400V, 3 Phase
Assembled footprin: (L × W × H): 23 ft × 27 ft × 16.5 ft
Total Weight: 13,227 lbs
Equipped With
Touchscreen HMI control panel with real‑time monitoring and parameter adjustment
100 ft³ inlet storage silo
Bucket elevator for continuous feed loading
Primary feed transport screw from elevator to separator
Corona charging system (15000–30000 V)
4 rotating separation drums
Adjustable electrode system
Integrated material distribution system
Three discharge transport screws for plastics - metals - and mixed residuals
Dust Extraction System
Full perimeter access doors for maintenance and cleaning
Steel support frame and platforms for the entire line Application: Cable recycling - Separation of metals inside plastic mixtures
