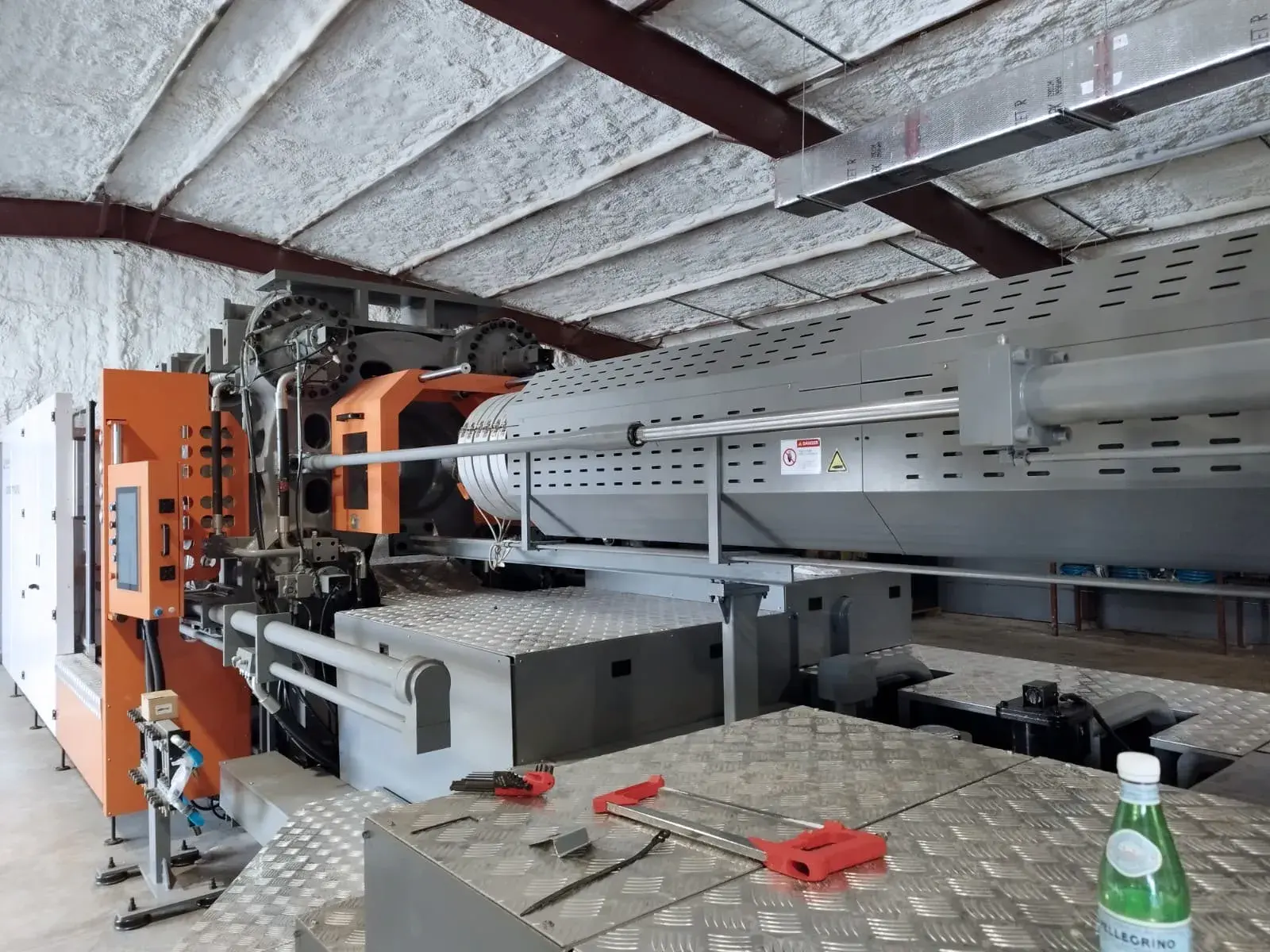

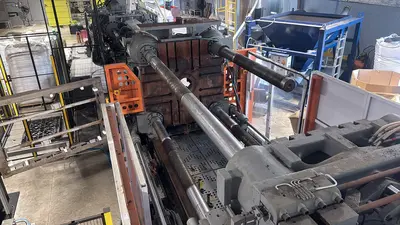

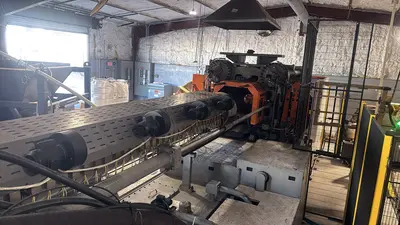

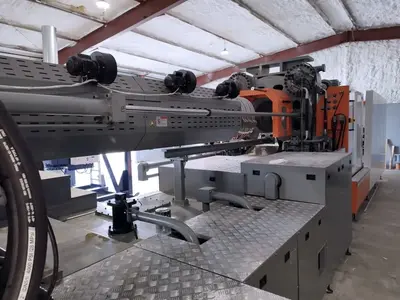

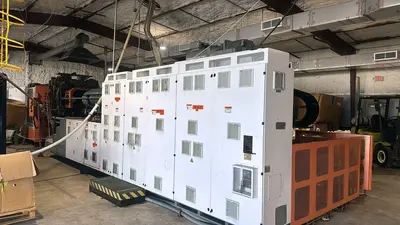

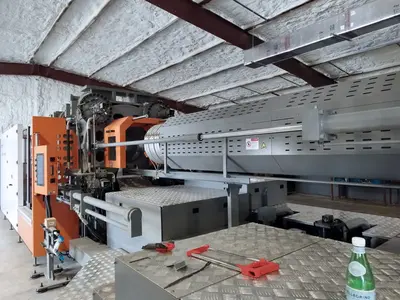

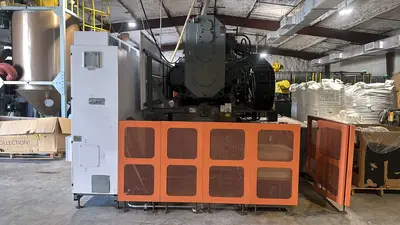

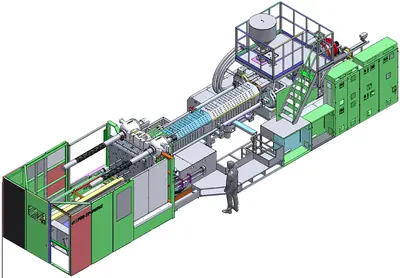

USED 2024 CHEN HSONG SM700-TP-SVP/2 (D2) SUPERMASTER TP SERIES
Overview
The 2024 Chen Hsong SM700-TP-SVP/2 (D2) 770 Ton Injection Molder is built for high-tonnage, precision plastic molding of large, deep-cavity parts. Ideal for automotive components such as bumpers, dashboards, and door panels, as well as logistics pallets and appliance housings. Designed for rigidity, sealing performance, and consistent output in demanding, high-volume industrial production environments.
Specs

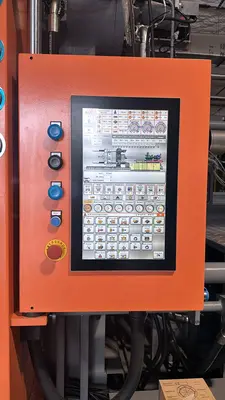

Beckhoff High‑Speed German PLC
Tie‑Bar Pulling System: Upper bar retracts for infinite horizontal loading
Clamp Style: “True” Two‑Platen (TP) Servo‑Hydraulic

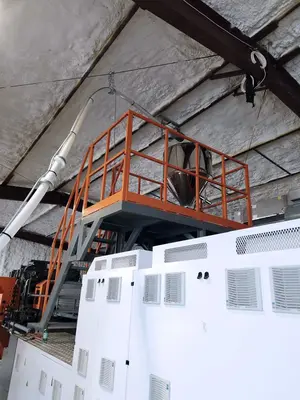

Heavy‑duty feeding hopper
Hydraulic knock‑off
Ejector‑on‑the‑Fly supported (parallel movement)
SVP/2 Servo‑Hydraulic Energy‑Saving System
Air Blow: 2 sets
Corepull: 2 sets
Hours: Less than 200 Hours
Clamping Force: 770 Ton (700 Metric Tons)
Clamp Style: Two-Platen (TP) Servo Hydraulic
Shot Weight: 39,801g (1,404 ounces)
Screw Diameter: D2 (225 mm) – High‑Volume / Large‑Shot
Screw L/D Ratio: 19.6
PLATEN SIZE: 59" × 59" (1,500 × 1,500 mm)

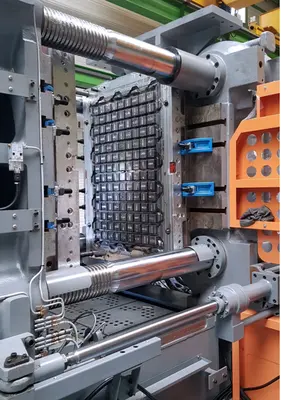

Tie‑Bar Spacing: 1,020 × 1,020 mm (40.15" × 40.15")
Mold Thickness (Min/Max): 15.7" – 43.3" (400 – 1,100 mm)
Max Mold Weight: 24,250 lbs (11 metric tons)
Opening Stroke: 2,300 mm (90.5")
Maximum Daylight: 2,300 mm (90.5")
Ejector Stroke: 280 mm (11.0")
Ejector Force: 22 metric tons
Injection Stroke: 1,100 mm (43.30")
Equipped With
Beckhoff High‑Speed German PLC
Tie‑Bar Pulling System: Upper bar retracts for infinite horizontal loading
Clamp Style: “True” Two‑Platen (TP) Servo‑Hydraulic
Heavy‑duty feeding hopper
Hydraulic knock‑off
Ejector‑on‑the‑Fly supported (parallel movement)
SVP/2 Servo‑Hydraulic Energy‑Saving System
Air Blow: 2 sets
Corepull: 2 sets
