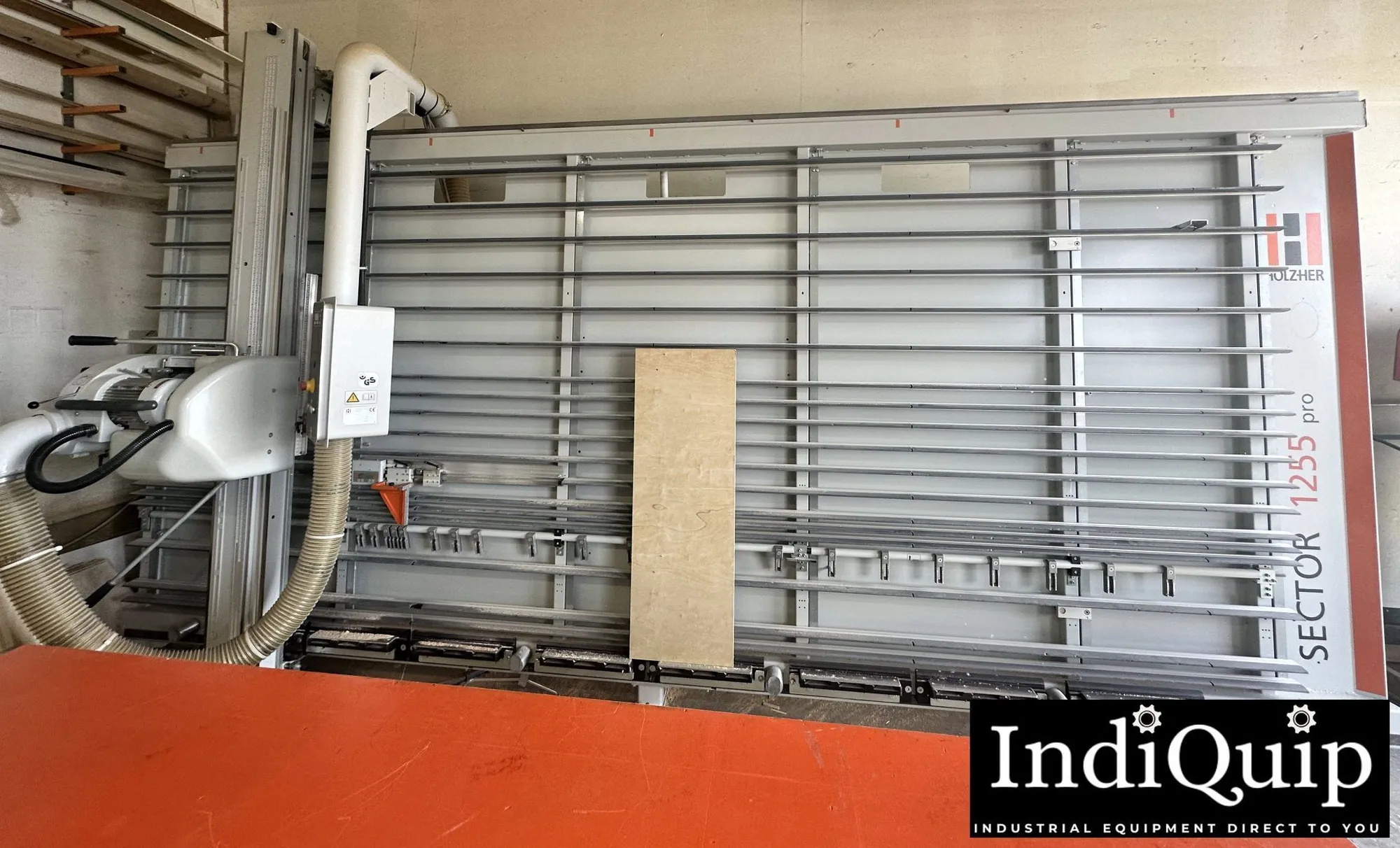

USED 2019 HOLZ-HER SECTOR 1255 PRO

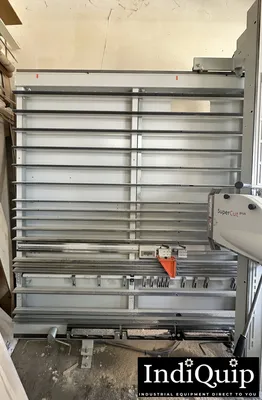

2019 Holz-Her SECTOR 1255 Pro vertical panel saw with 4 kW motor, SuperCut prescoring, 2.36" cutting depth, up to 248" cutting length, digital touch screen control, OptiBase V-Cut optimization, EasyLabel printer, and ProLock quick clamp system.

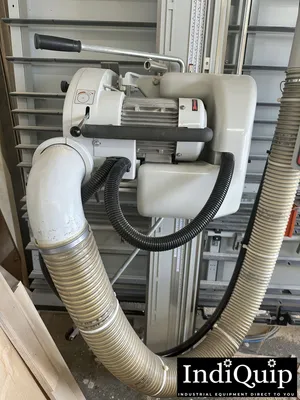

Sawing Unit
Motor Power: 4.0 kW
Speed: 5,200 RPM (50 Hz) / 6,300 RPM (60 Hz)
Optional: Up to 7.0 kW with infinite speed control (1,100–5,500 RPM)

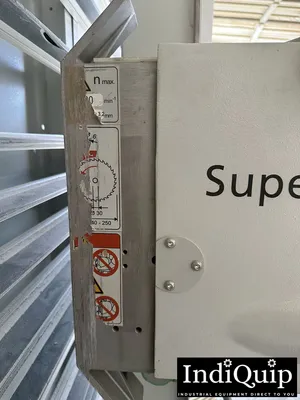

Saw Blade Diameter: 250 mm
Pneumatic brake for horizontal cut
ProLock Quick Clamp Flange

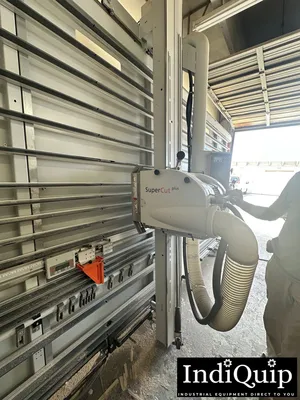

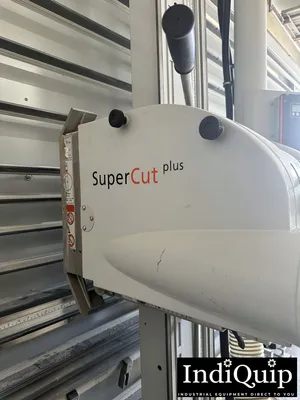

Patented SuperCut Prescoring System
Cutting Capacity
Cutting Depth: 60 mm
Cutting Length Options: 3,300 / 4,300 / 5,300 / 6,300 mm
Cutting Height: 1,900 / 2,200 mm
Trimming Height: 1,810 / 2,110 mm
Sawing Beam & Support
Top and bottom pneumatic arrest
Three adjustable sawing points
Pneumatic support grid
Continuous middle workpiece support
Bottom stainless steel workpiece support
Two narrow part attachments
Dimensioning & Stops

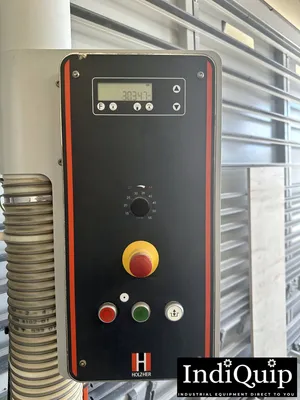

Digital horizontal dimension display
Electric motor fine adjustment from control panel

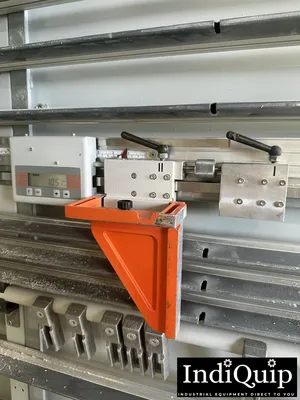

Longitudinal stop with measuring tape and integrated small part stop
Longitudinal stop with digital fine adjustment
Optional second longitudinal stop (measuring tape or digital)
Optimization & Control
10" Touch Screen
OptiBase V-Cut cutting optimization (with office license)
EasyLabel printer included
Network connectivity
Dust Extraction Requirements
Air Requirement: 1,400 m³/h
Minimum Air Velocity: ≥ 20 m/sec
Attachment Connection Diameter (assembly): 120 mm
Frame End Connection Diameter (TRK version): 100 mm
Additional consolidation diameter (customer side): 160 mm
Static Vacuum: 1,500 Pa
