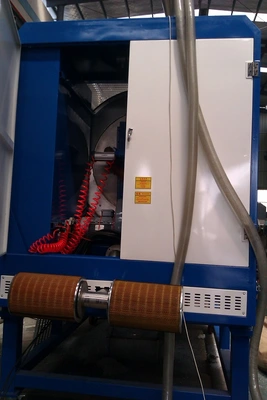

NEW 2021 ZUICK ZUICK IRD-500

No


Description







1


Raw material


PET pellets




3


Capacity


500kg/h




4


Labor


1 worker /shift, 12 hours per shift




5


Installation power


58KW




6


Practical using power


About 29KW




7


Crystallized and dehumidifying


At the same time




8


Drying temperature


180~165°C ( PET Drying suggestion temperature)

Temperature can be adjustable by drying material




9


Drying time


20mins

Drying time can be adjustable




10


Final moisture


50-70ppm

500KG/H PET Infrared crystal dryer
Requirements from Buyer
Raw material: PET Pellets
Capacity: 500kg/h
Proposals from Zuick Machinery
Capacity: 500kg/h
Power source: 480v/3/60hz  or Customized

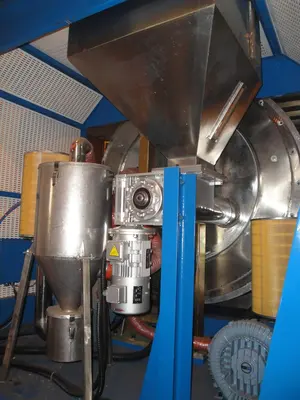

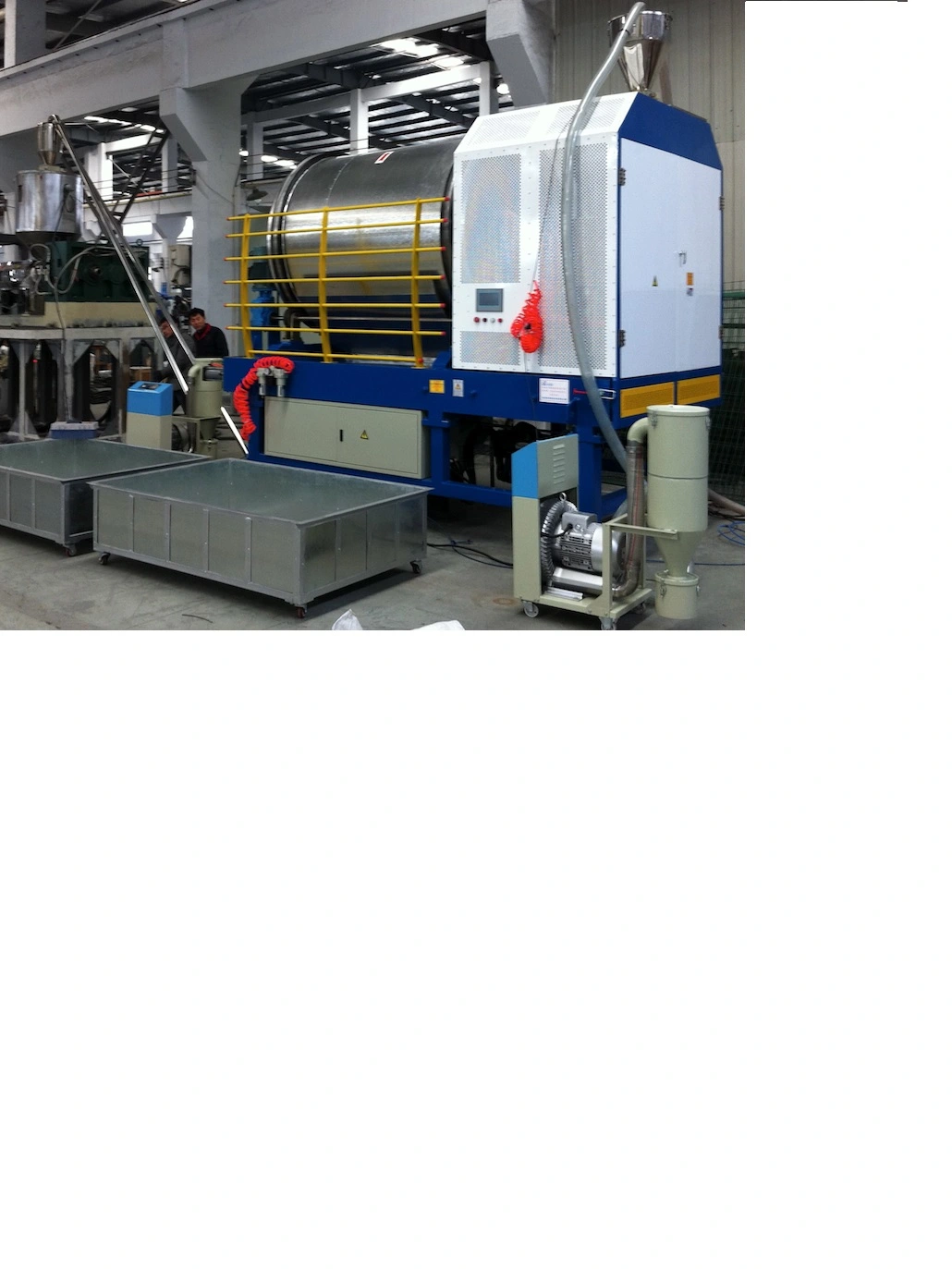

IRD system: Vacuum feeder – Infrared crystal dryer – Vacuum discharger
Processing explanation and machine list

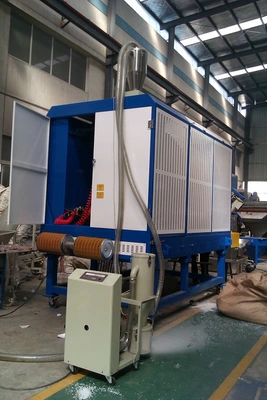

Vacuum feeder--- Convey the PET pellets to IRD system
IRD Dryer --- Dry and crystallize PET Pellets at a time
Vacuum discharger --- Convey the Dried and crystallized PET Pellets to Extruder hopper

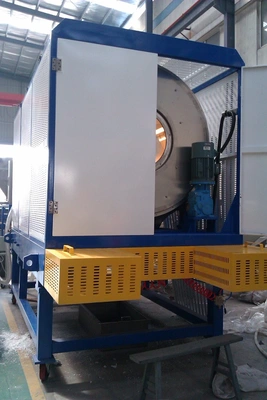

Infrared crystal dryer………………………………………..1unit




Dehumidifying motor power


4kw




Cooling blower motor power


2.2kw




Air pump motor power


1.5kw

Adopt ABB frequency speed controlling




Drum rotating motor power


4kw

Adopt ABB frequency speed controlling




Heating power


48kw

(16pcs Infrared lamps, 3kw/lamp)

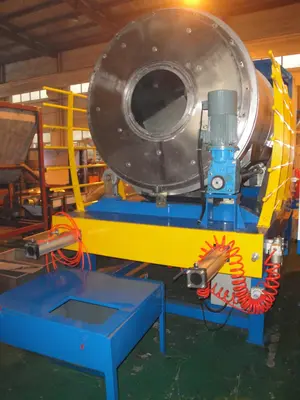

Drum diameter* length


1400mm*2000mm




Drum material


Made of stainless steel 304

With insulation layer outside




Drying time


20mins

Can be adjustable




Final moisture


50-70ppm




Drying temperature

Adopt PI—German import Infrared temperature sensor to measure temperature and controlled by Siemens PLC


180~165°C

(PET Drying suggestion temperature)






Dust-catching system


1set

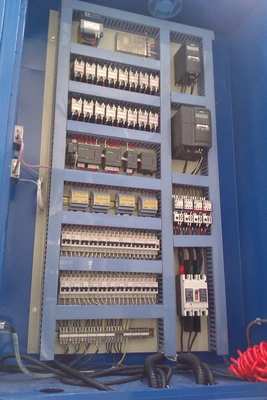

Electrical controlling system

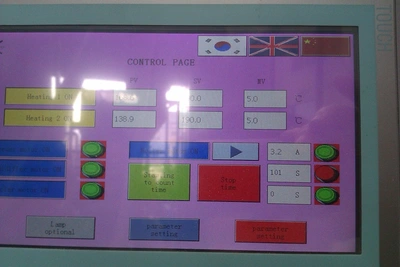

Adopt Siemens PLC Touch screen controlling

With Circuit protection of over-high temperature and alarm for fault
