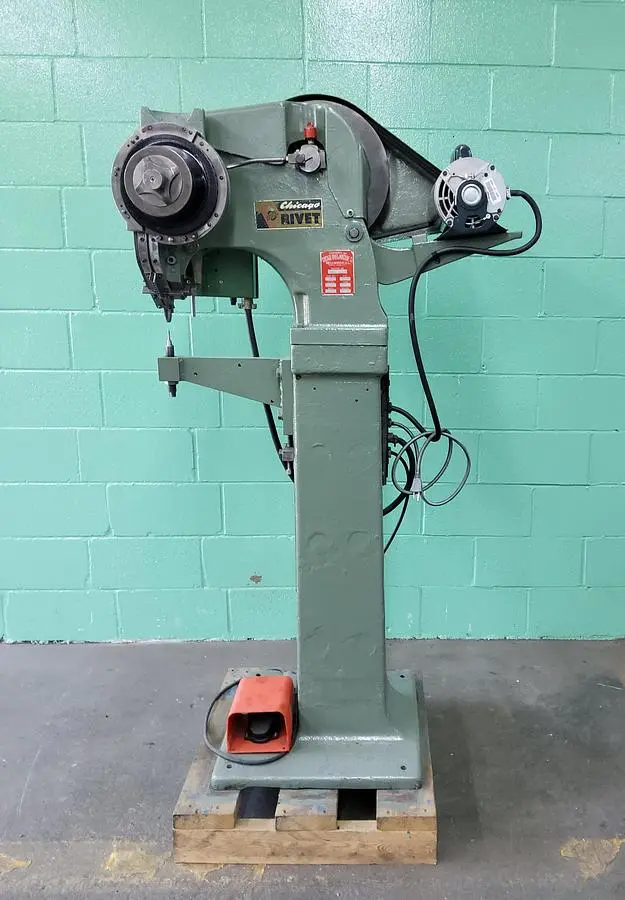

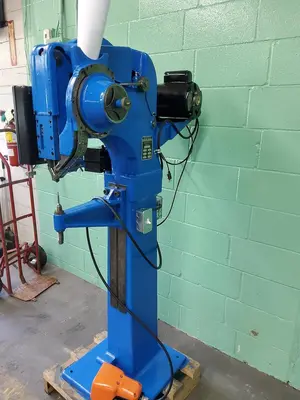

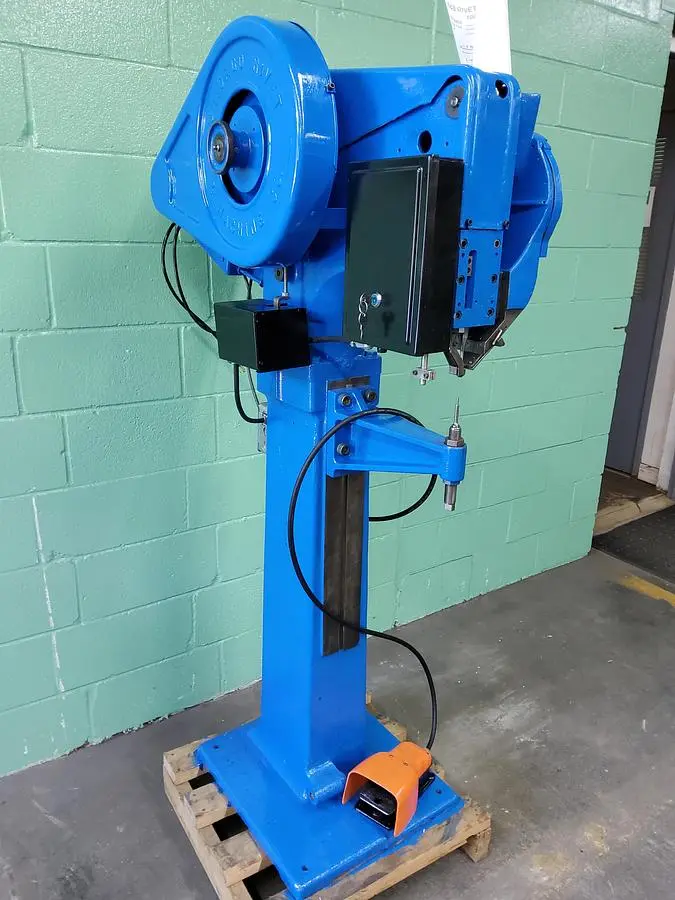

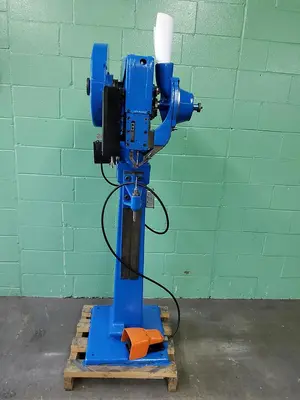

The Chicago 912 is a used single spindle rivet machine designed for precision in industrial applications. This mechanical riveter is mounted on a sturdy pedestal and incorporates a rotary hopper feed system, streamlining the riveting process. It accommodates rivets ranging in diameter from 1/8 inch to 3/16 inch, making it adaptable for various production needs.
The machine features a 2-1/2 inch stroke and a 12-inch throat depth, providing ample space and reach for efficient operation. Powered by a 1/4 hp motor running at 1140 rpm, it ensures reliable performance with a flywheel speed of 175 rpm. The compact design, with dimensions of 18 inches by 35 inches by 65 inches, allows for easy integration into existing production lines.
Weighing 555 lbs without the skid, the Chicago 912 offers a robust solution for your riveting tasks while maintaining ease of use and flexibility. This machine will contribute effectively to your manufacturing processes, enhancing both productivity and quality.
Stroke: 2-1/2"
Throat Depth: 12"
Motor: 1/4 hp, 1140 rpm
Flywheel Speed: 175 rpm
Net Weight without skid: 555 lbs
Dimensions (L x W x H): 18" x 35" x 65
