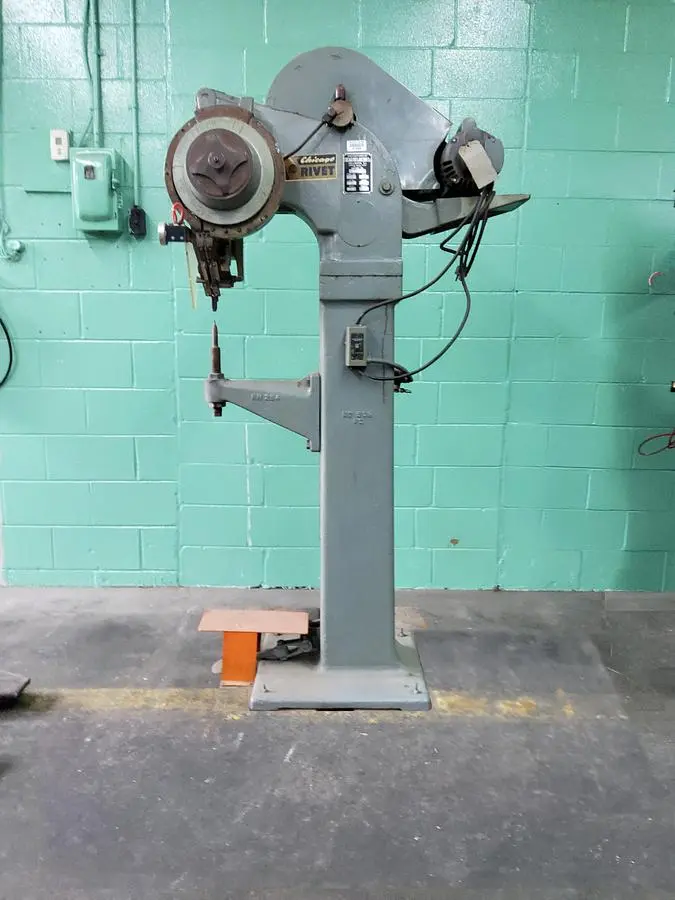

The Chicago 490 Rivet Machine is a reliable piece of industrial machinery designed for efficiency in riveting tasks. This used model offers a standard stroke length of 3-1/4 inches and a throat depth of 12 inches, adjustable for specific production needs. A sturdy floor-mounted design ensures stability during operations, with a mounting anvil height of 42 inches.
The machine is powered by a 1/3 HP motor running at 1140 RPM, driving a flywheel that operates at a speed of 175 RPM. Weighing 630 pounds without the skid, this rivet machine provides a robust yet manageable solution for your riveting needs. Its compact footprint measures 22 inches by 38 inches by 71 inches, allowing it to fit well in various workshop spaces without requiring excessive floor space.
Overall, the Chicago 490 is an excellent choice for those in need of a dependable, industrial-grade rivet machine that combines power, adaptability, and space efficiency.
Stroke: 3-1/4" std.
Throat Depth: 12" - can be set up for your production
Motor: 1/3 HP, 1140 rpm
Mounting Type Floor Anvil Height: 42 Inch
Flywheel Speed: 175 rpm
Net Weight without skid: 630 lbs
Floor Space without skid (L x W x H): 22" x 38" x 71"
