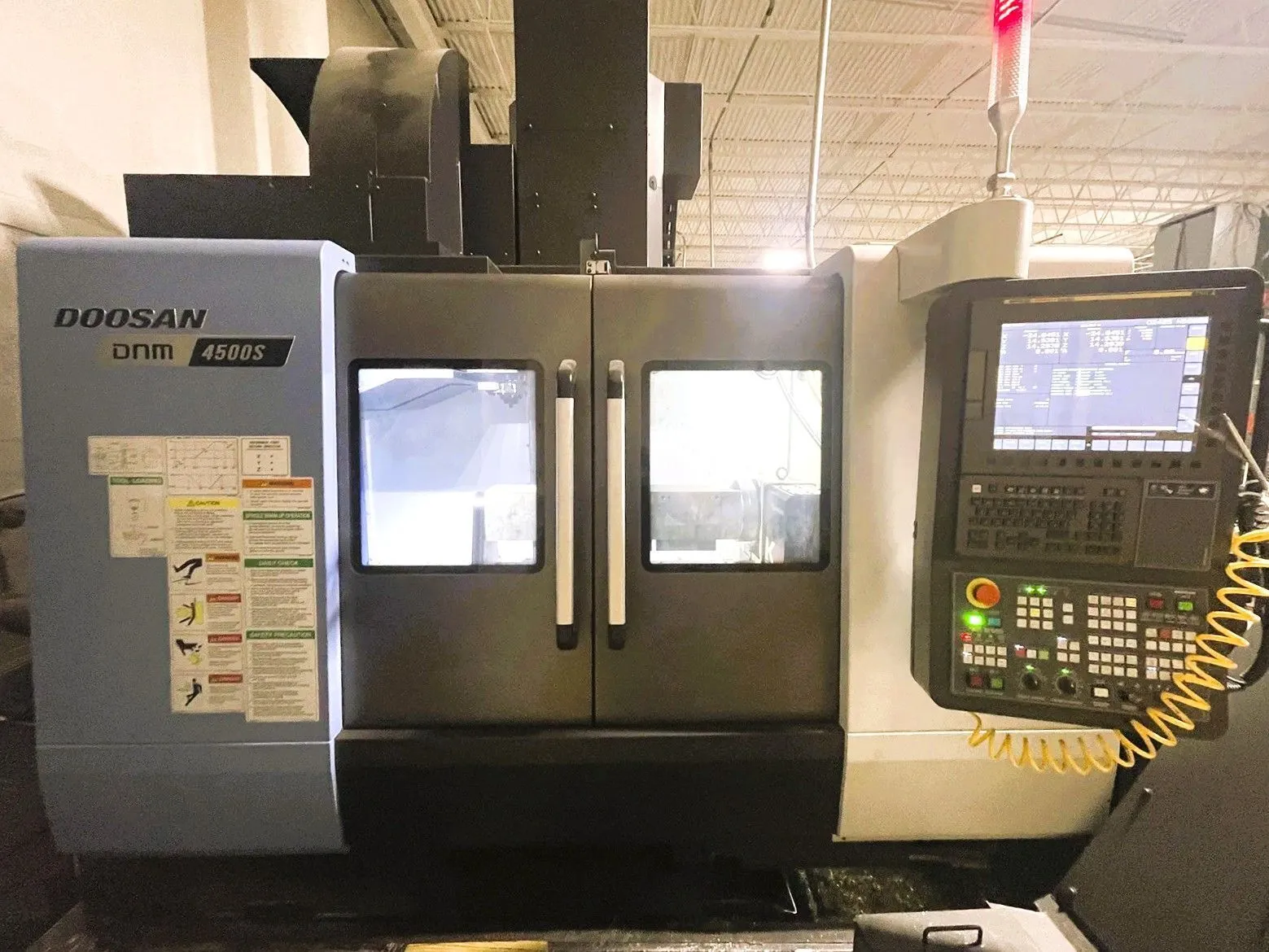

DOOSAN DNM4500S Vertical Machining Center, New in 2021.
Less than 100hrs.
Fanuc i CNC Control.
Renishaw Probing.
Tsudakoma KP Rotary.
40+1 side mount ATC.
Through Spindle Coolant.
| X-Axis | 31.5" | 800.1 mm |
| Y-Axis | 17.7" | 449.58 mm |
| Z-Axis | 20.1" | 510.54 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 39.4" | 1,000.8 mm |
| Table-L | 17.7" | 449.58 mm |
| # Axis | 5 | 5 |
| Control | CNC (Fanuc i-Series) | CNC (Fanuc i-Series) |
General Specifications:
Spindle Taper:
CT40 Big Plus
Spindle Speed:
15000 rpm
AUTOMATIC TOOL CHANGER:
40+1
Travel X / Y / Z:
(31.5 / 17.7 / 20.1 in)
Spindle Nose to Table Top:
(5.9–26.0 in)
Table Size:
(39.4 × 17.7 in)
Max Table Load:
(1322.8 lb)
T-slots (table surface type):
(3) × 125 mm spacing, 18 mm T-slot (H8)
Max Spindle Power:
18.5/11 kW (24.8/14.8 hp)
Max spindle torque (Fanuc):
117.8 N·m (86.9 lbf-ft)
Rapids X/Y:
(1653.5 ipm)
Rapids Z:
(1417.3 ipm)
Less Than 100hrs
Fanuc i CNC Control
Through Spindle Coolant
Tsudakoma KP Rotary
Renishaw Probing System
Tool Pre-Setter
40+1 Side Mount ATC
Jog Wheel
Coolant Tank
Chip Conveyor
