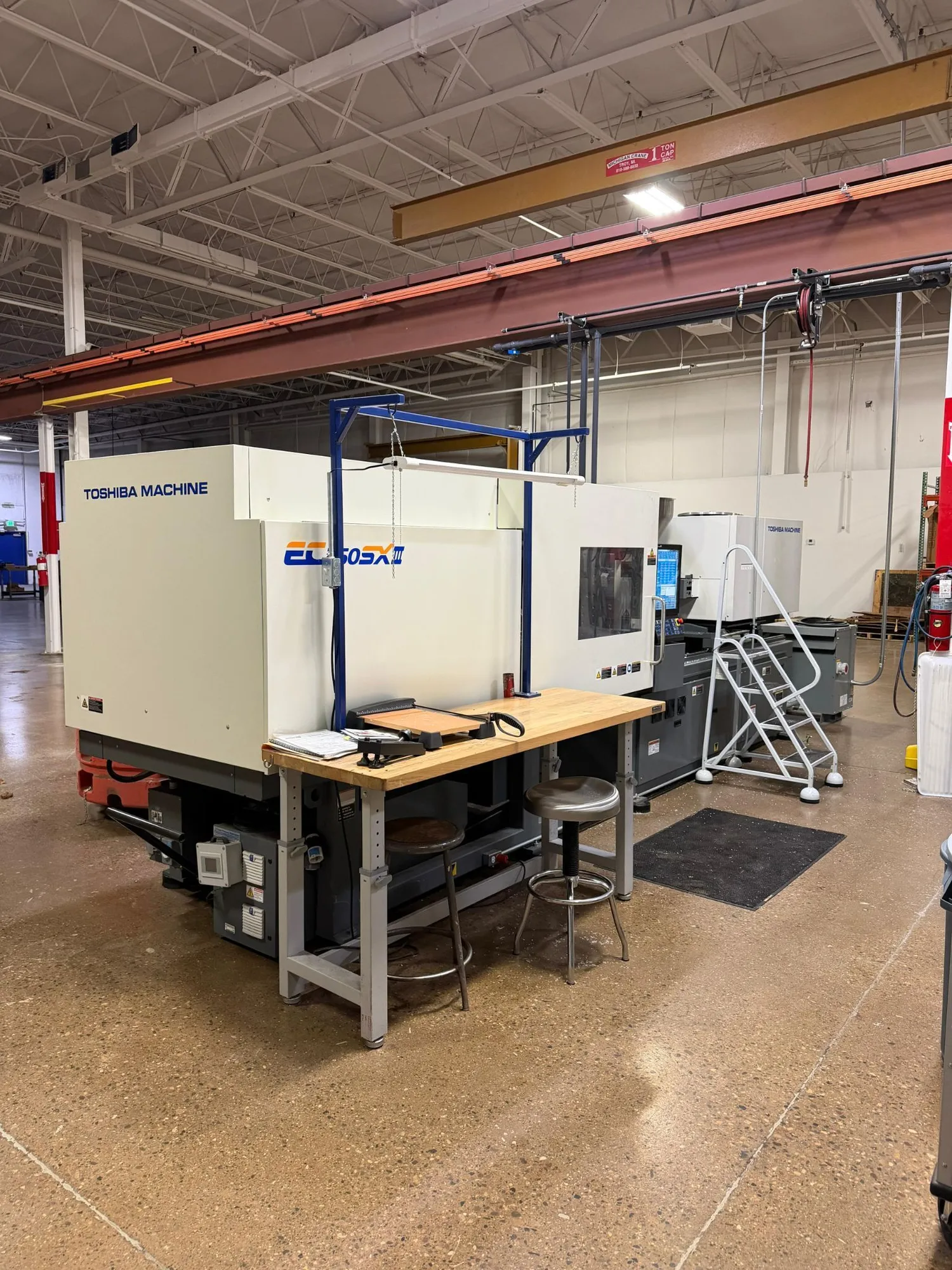

USED 2019 Shibaura Machine EC250SXIIV70-U48-8A
Overview
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 250 T | 226.796 t |
| Barrel Code | 8A | 8A |
| Shot Volume (PS) | 12.7 oz | 360 g |
| Shot Volume (PE) | 10.1 oz | 286.3 g |
| Screw Diameter | 1.97" | 50.038 mm |
| Maximum Injection Pressure | 29000 psi | |
| Maximum Holding Pressure | 29000 psi | |
| Screw Speed STD | 255 rpm | 255 RPM |
| Tie Bar Distance H | 24" | 609.6 mm |
| Tie Bar Distance V | 22" | 558.8 mm |
| Platen Dimension H | 34.6" | 878.84 mm |
| Platen Dimension V | 32.7" | 830.58 mm |
| Clamp Stroke | 21.7" | 551.18 mm |
| Maximum Daylight | 48.4" | 1,229.4 mm |
| Mold Height Min | 9.84" | 249.94 mm |
| Mold Height Max | 26.8" | 680.72 mm |
| Ejector Force | 5.5 T | 4.99 t |
| Ejector Stroke | 5.12" | 130.05 mm |
| Injection Orientation | Horz | Horz |
| Hours | 4,091 hr. | 4,091 hr. |
| Control | CNC (INJECTVISOR V 70) | CNC (INJECTVISOR V 70) |
Equipped With
DBG Anti Wear Screw Carbide Barrel
Transformer
Core Pull Unit B
Mounting Pads
Secondary Motor Disconnect
