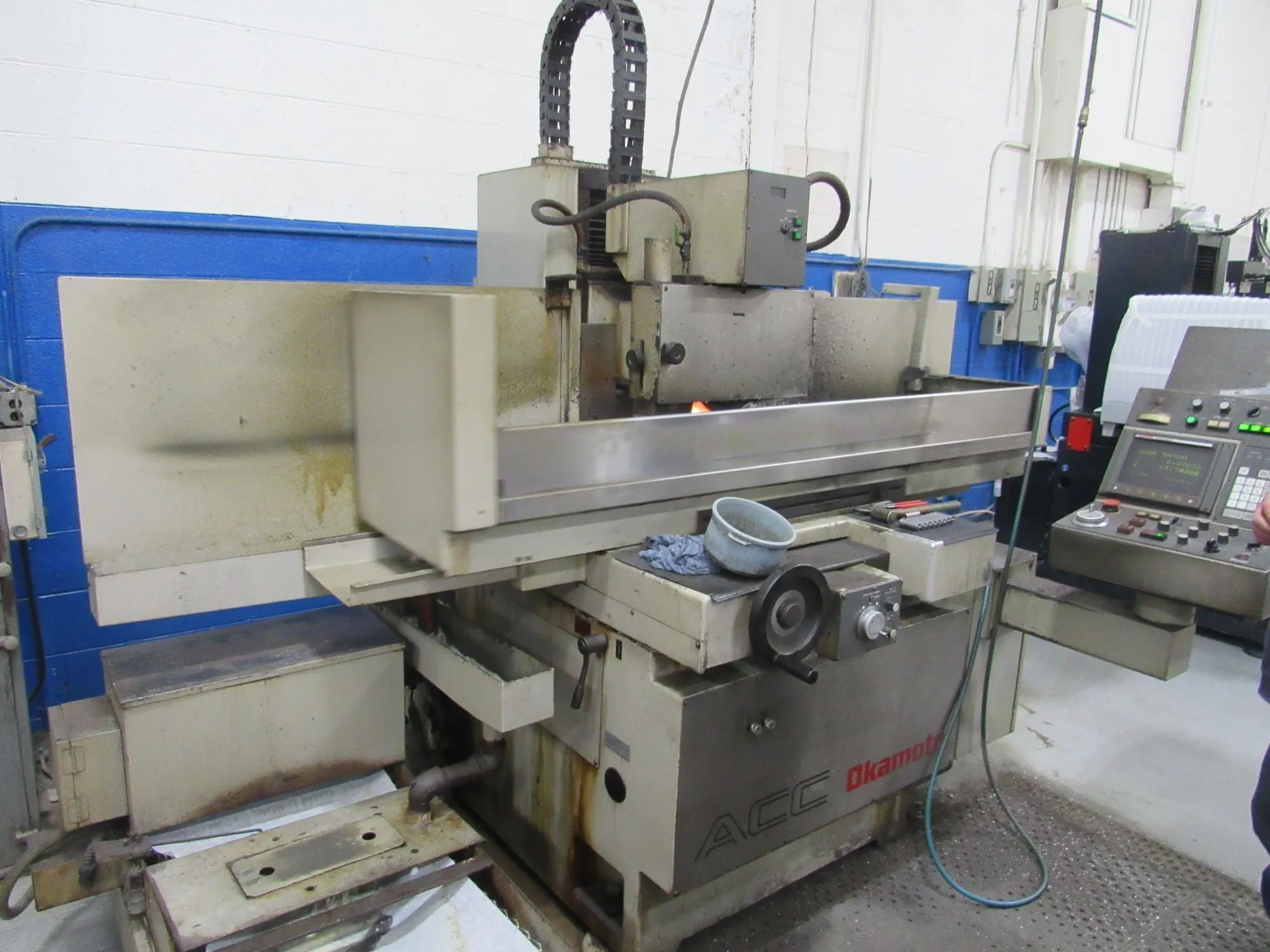

USED OKAMOTO ACC-12.24EX

CURRENTLY UNDER POWER. OKAMOTO ACC-12.24EX surface grinder for sale. Used, horizontal reciprocating table with 12" x 24" table size and 5 HP power. Ideal for precision grinding tasks. Contact us for more details.

12-24 EX ACC OKAMOTO HORIZONTAL SURFACE GRINDER

S/N 73032

STANDARD SPECIFICATIONS
Max Grinding Length.......................24”
Width Vertical Clearance..................12”
Max Workpiece Weight......................1540 LBS
Table Speed(Variable).....................1-82 FPM
Cross Feed(Automatic).....................0.014-40 FPM
Vertical Feed(Automatic)..................0.00005-0.0015”
Spindle Speed.............................1,800 RPM
Spindle Motor.............................5 HP
Grinding Wheel............................12”x 1.5”x 5”Bore
Max Distance(Wheel To Table)..............13.7”
Controls..................................Fanuc

DIMENSIONS................................115”x 80”x 70”

WEIGHT....................................7,100 LBS

EQUIPPED WITH
Over the wheel guard dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
