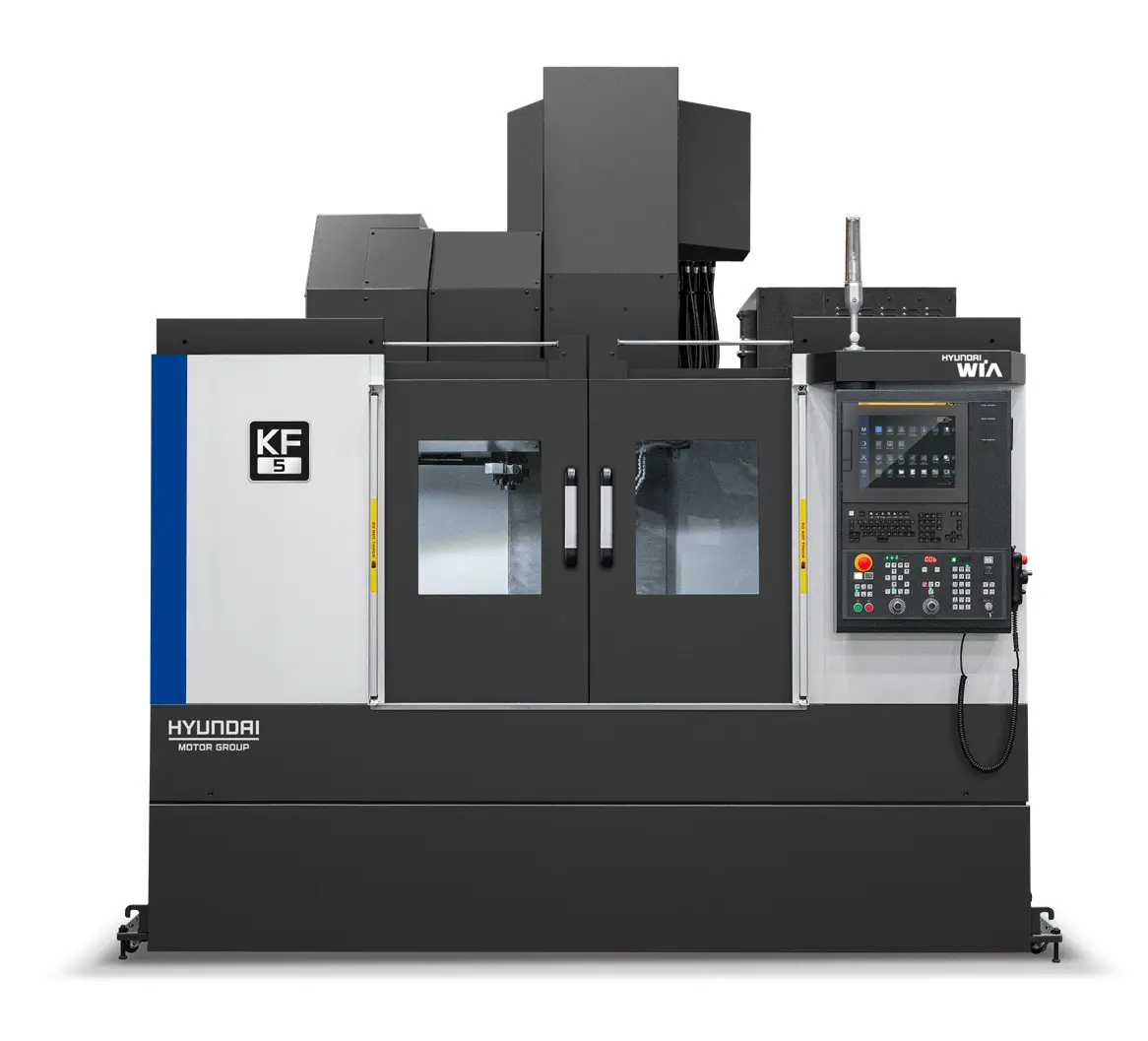

Introducing the Hyundai Wia KF5 Vertical Machining Center, a new powerhouse from HYUNDAI WIA CNC MACHINE TOOLS. Featuring CAT40 taper, 8K RPM spindle, and 20 hp HT, 210 ft-lbs of max. torque that offers an X/Y/Z travel of 41.3"/22"/25". Table: 51.2" x 22". Magazine: 30 capacity.
PDF
http://hillaryinc.net/hwpdf/HillaryMachinery-HyundaiWia%20KF-5%20VMC.pdf
| Control | CNC | CNC |
| SPINDLE TAPER | CAT40 (BIG PLUS) | CAT40 (BIG PLUS) |
| X Travel | 41.3" | 1,049 mm |
| Y Travel | 22" | 558.8 mm |
| Z Travel | 25" | 635 mm |
| TABLE (L) | 51.2" | 1,300.5 mm |
| TABLE (W) | 22" | 558.8 mm |
| SPINDLE SPEED | 8 RPM | 8 RPM |
| SPINDLE HP | 20 hp | 14.9 kW |
| MAGAZINE CAPACITY | 30 | 30 |
