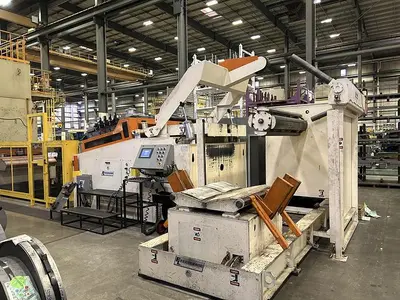

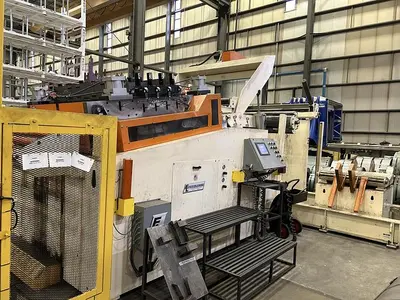

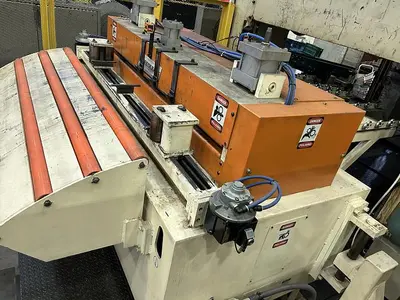

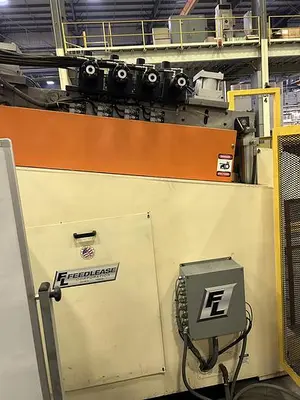

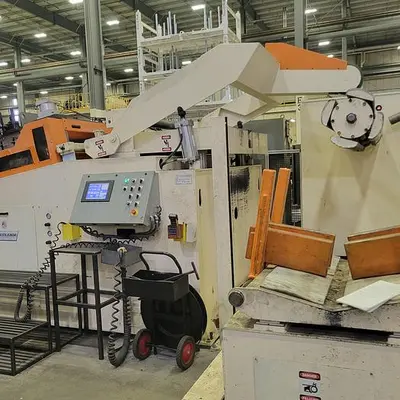

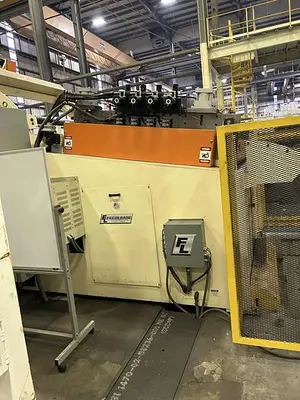

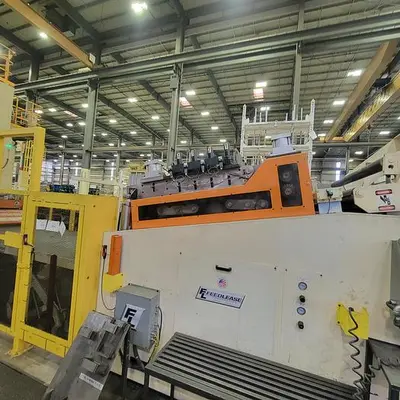

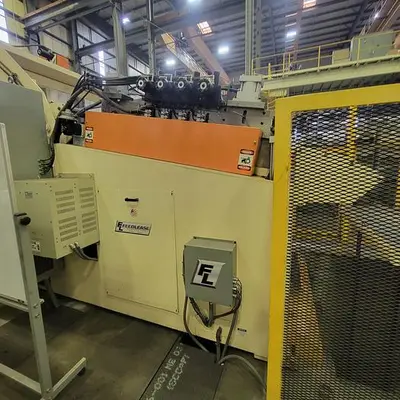

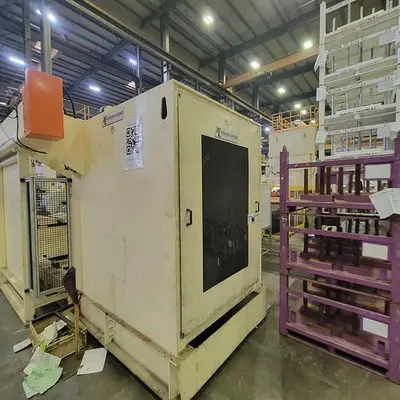

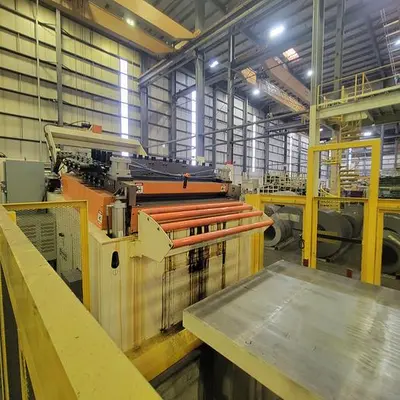

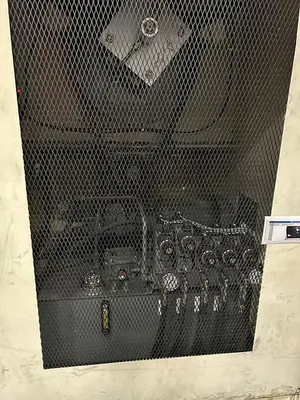

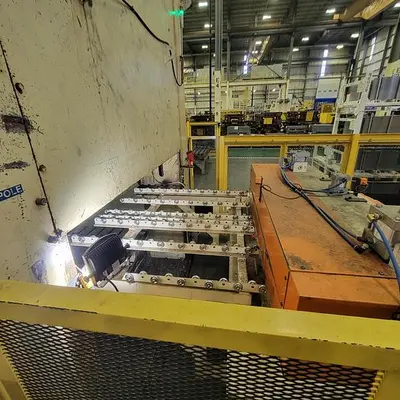

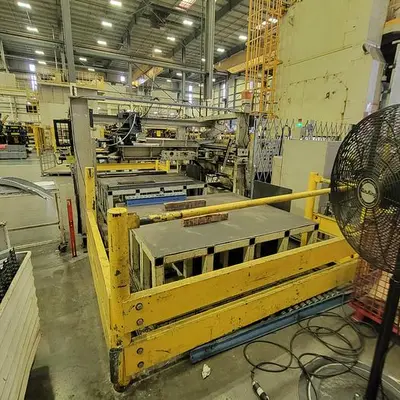

The 2016 66" x 40,000 lb Feedlease Servo Roll Feed Line is a reliable and robust coil feed system for high-speed blanking. It features essential components like a cabinet-mounted servo roll feed, a nine-roll powered straightener, and it can support a coil weight of up to 40,000 lbs with a stock width of 66". This machine handles coil diameters from 20" to 72" and manages Thicknesses ranging from .020" to .090", with a line speed capability of 10-200 feet per minute.
Operating on 460V, 3-phase, 60Hz, this equipment requires a minimum air supply of 80 psi. The feed occurs right to left, and the pass line is 60" above the floor. It delivers feed accuracy within +/- .003" and accommodates feed lengths up to 999.999", with a quick acceleration time of .200 seconds. Its 20:1 gear ratio and 300 in/lbs drive force ensure efficient performance.
This feed line is specifically suited for high-speed applications, maintaining maximum stock thickness with pre-painted material up to .090" at full width, offering versatility for various manufacturing demands.
MAXIMUM COIL WEIGHT: 40,000 LBS
MAXIMUM STOCK WIDTH: 66"
MINIMUM/MAXIMUM COIL ID: 20" - 24"
MAXIMUM COIL OD: 72"
MAXIMUM LINE SPEED: 10-200 FPM
SYSTEM CONFIGURATION: HIGH SPEED BLANKING LINE
GEAR RATIO: 20
DRIVE (IN/LBS): 300
ACCELERATION: .200 SECONDS

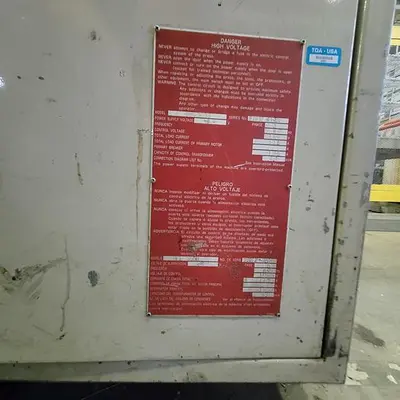

INPUT POWER SUPPLY: 460V, 3PH, 60HZ
FEED LENGTH RANGE: 0-999.999"
INPUT AIR SUPPLY MINIMUM: 80 PSI
PASS-LINE: 60" FROM FLOOR
FEED DIRECTION: RIGHT TO LEFT
MAXIMUM STOCK THICKNESS: .090" @ 66"
MINIMUM STOCK THICKNESS: .020" @ 66"
