72” X 0.500” X 60,000 Lbs. Delta Cut-To-Length Line

Specifications:
Manufacturer: Delta
Maximum Width Capacity: 72”
Maximum Thickness Capacity: 0.500” Mild Steel
Maximum Coil Weight: 60,000 Lbs
Line Speed: 0 – 100 FPM
Line Direction: Right To Left
Condition: Installed
Complete Line Consisting Of:

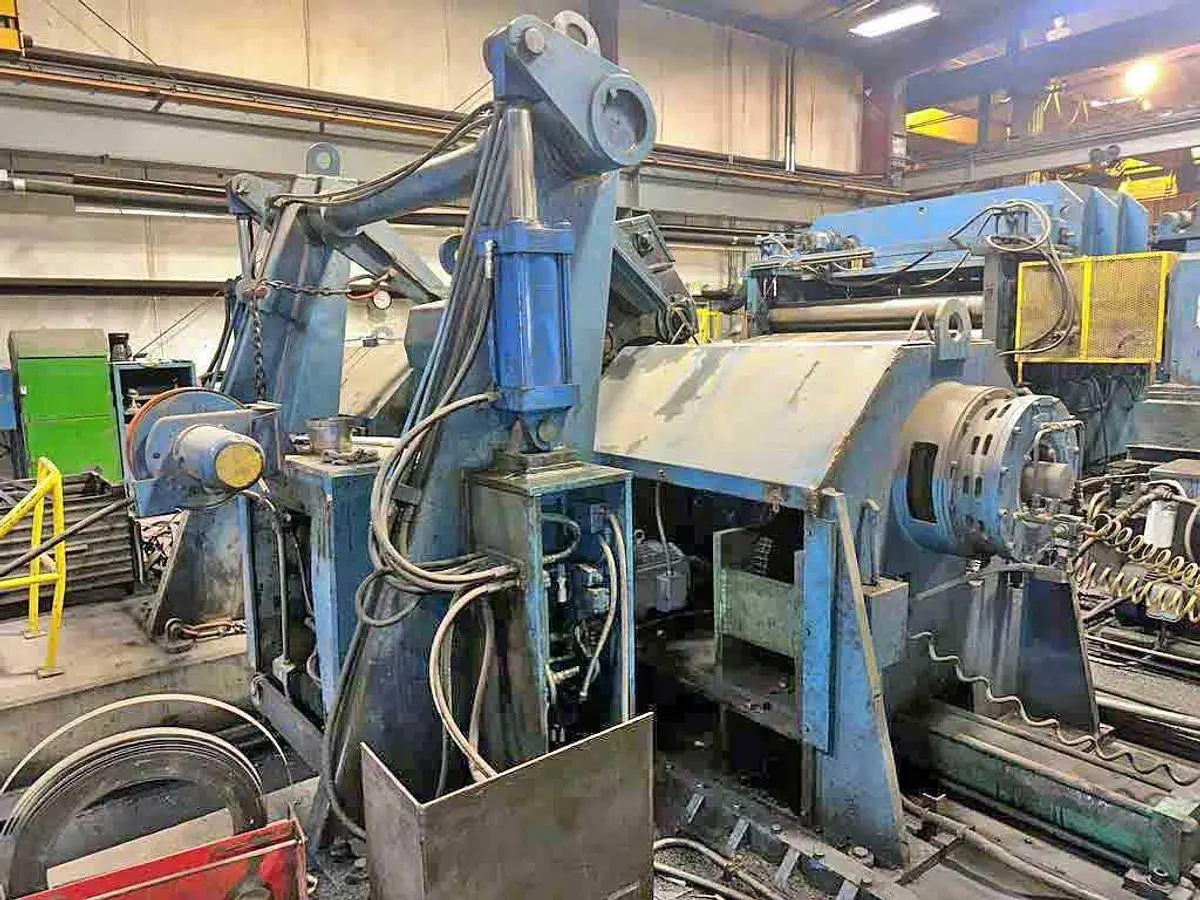

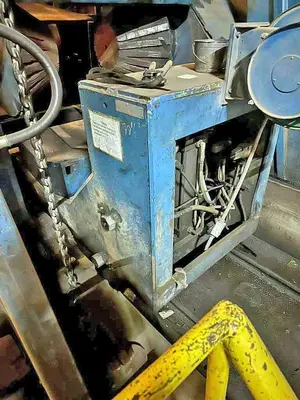

“L” Type Coil Car:
52” Wide Deck
40” Centerline Of “V” To Side Mast (Allows Approx. 80” OD Coil)
9” Dia. X 27” Long Lift Cylinder Body
Approx. 15” From Floor To Bottom Of “V” Cradle
Self-Contained Hydraulic Power Unit

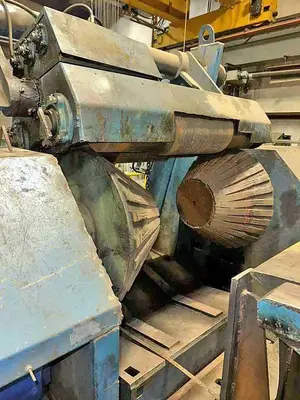

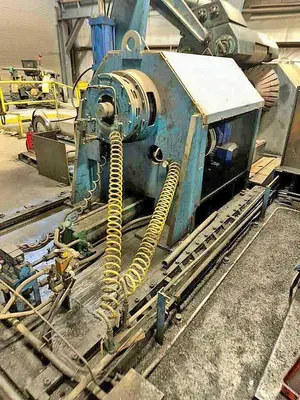

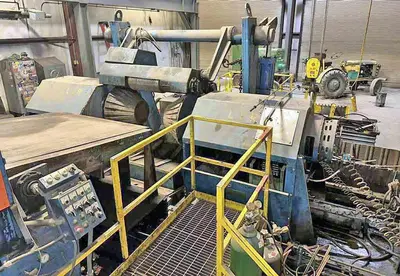

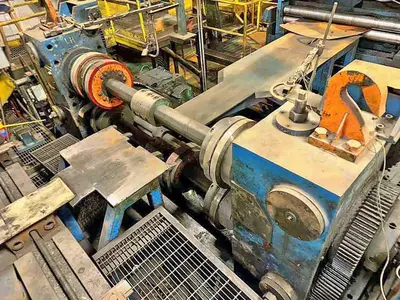

Delta Cone Type Uncoiler:
Solid Non-Expanding Mandrels
Sliding Bases
Wichita Brakes On Both Mandrels
45” From Centerline Of Mandrel To Base
Feedup Drive With Renold WormMaster 60:1 Reducer And Motor
Wichita Clutch

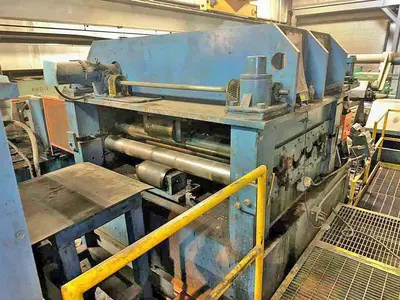

Delta Entry Unit:
Fully Articulating Peeler Table, Pivoting And Extending
Pinch Rolls: 10” Dia. X 78” Face

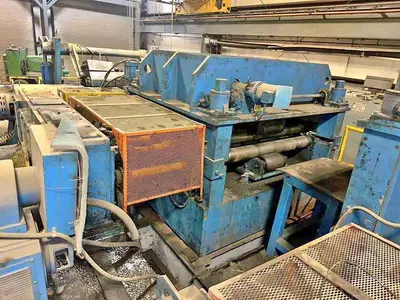

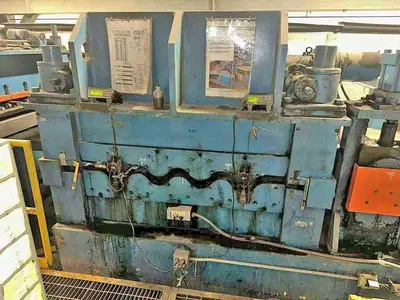

Delta Straightener:
9 Work Rolls
4 Over 5 Roll Configuration
10” Dia. X 78” Face Rolls (Needs Confirming)
One Set Of 14.5” Wide Backup Rolls On Center Of Work Rolls

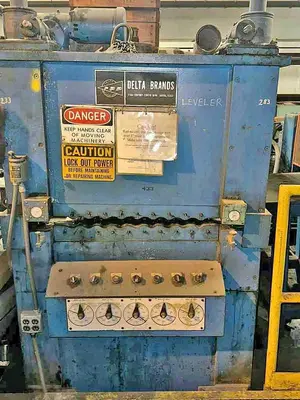

Delta Leveler:
19 Work Rolls
9 Over 10 Roll Configuration
2.5” Dia. X 78” Face Work Rolls
5 Adjustable Flights Of Backup Rolls (Cam Type)

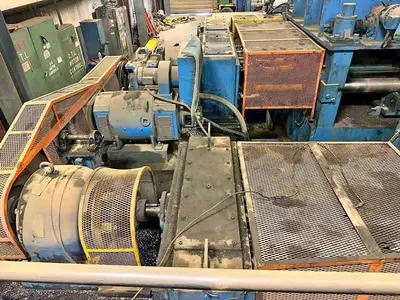

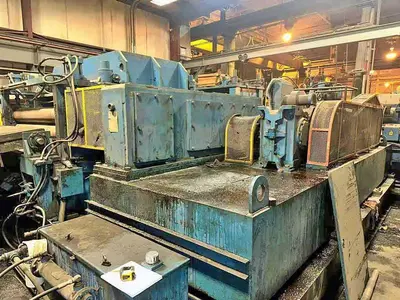

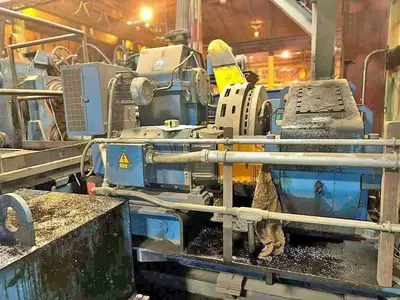

Straightener And Leveler Shared Drive Train:
Capacity: 0.500” X 72” Mild Steel
Main Drive: 100 HP
Side Guides

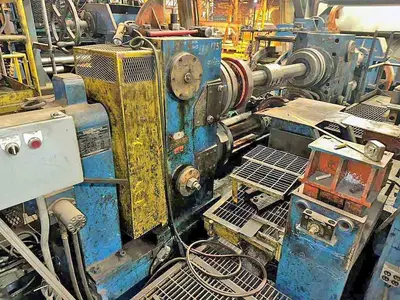

Double-Stub Edge Trimming Unit: Stamco
Eccentric Adjustment
Motor: 125 HP DC, 500 V, 1750 RPM, 203 Amps
Reducer: Horsburgh & Scott, 102 HP, 1.0 Ratio
Scrap Chopper:
Paddle Type
One Set Of Choppers Per Side

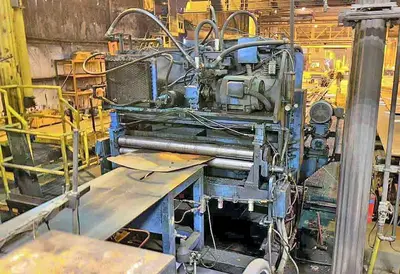

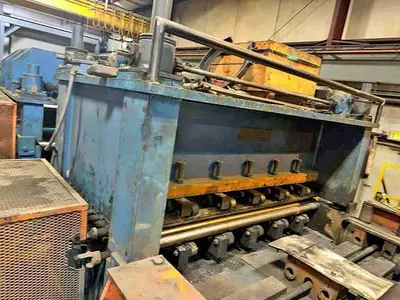

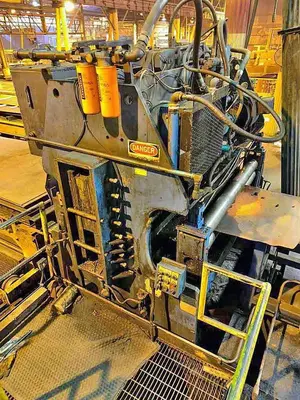

Delta Shear:
Model: SS-652-000
Capacity: 0.500” X 72” Mild Steel
Single Rake Design
Down Acting
Entry And Exit Driven Pinch Rolls
66” Pass Height
Motor: 75 HP, 230 V

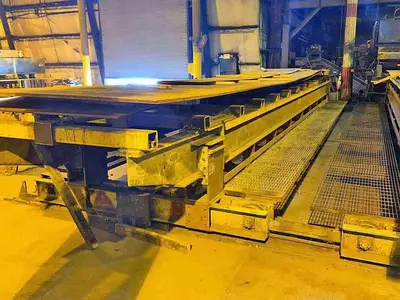

Runout Tables:
(2) Runout Tables
Approx. 40’ Long
On Rails

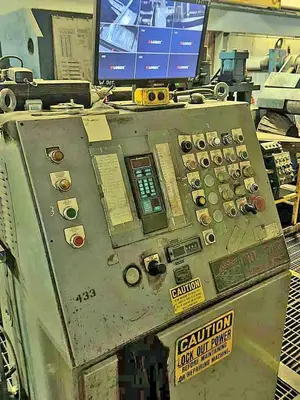

Operators Console
Isolation Transformer:
145 KVA
