Machine Table: 32.8″ x 100″
X Axis Travel: 78.7″
Y Axis Travel: 31.5″
Z Axis Travel (Horizontal): 43.3″
Z Axis Travel (Vertical): 38.9″
NC Swivel Head: infinitely adjustable ±105°
Swivel Radius: 14.1″
Spindle Taper: HSK 100
Spindle Speed: 12,000 RPM
Spindle Motor: 59 HP

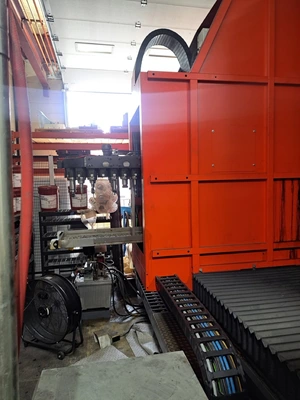

ATC: 40 Positions
Equipped With:

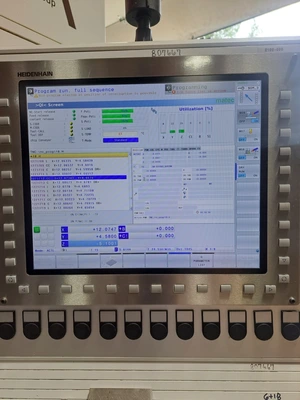

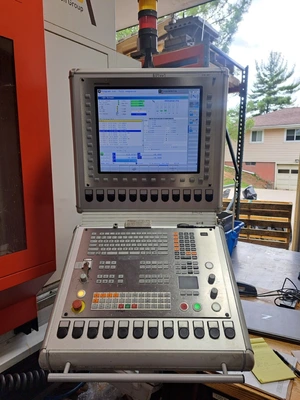

Heidenhain TNC 640 Control
NC swivel head, infinitely adjustable ±105°
Continuous or indexed positioning with clamping
12,000 RPM Spindle
Machine Spindle with HSK100 Tool Interface
High Pressure Coolant
Machine Anchoring
Additional Support for Machine Bed

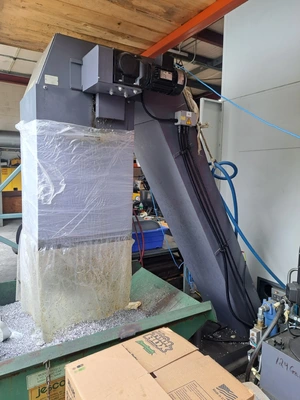

Chip Conveyor
Wash Gun
Work area lighting
Software Option KinematicsOpt
Internal Coolant Supply

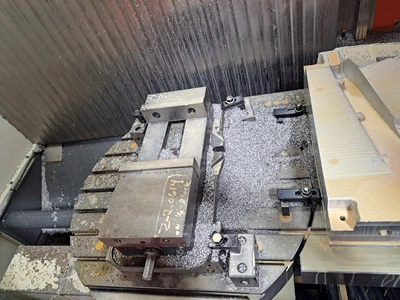

CNC Rotary Table SKH-NC 8/1000
Direct Measuring System for Rotary Table
3D Wireless Touch Probe
Tool Breakage Detection & Length Measurement
Collision Monitoring System
3-Color Signal Light
