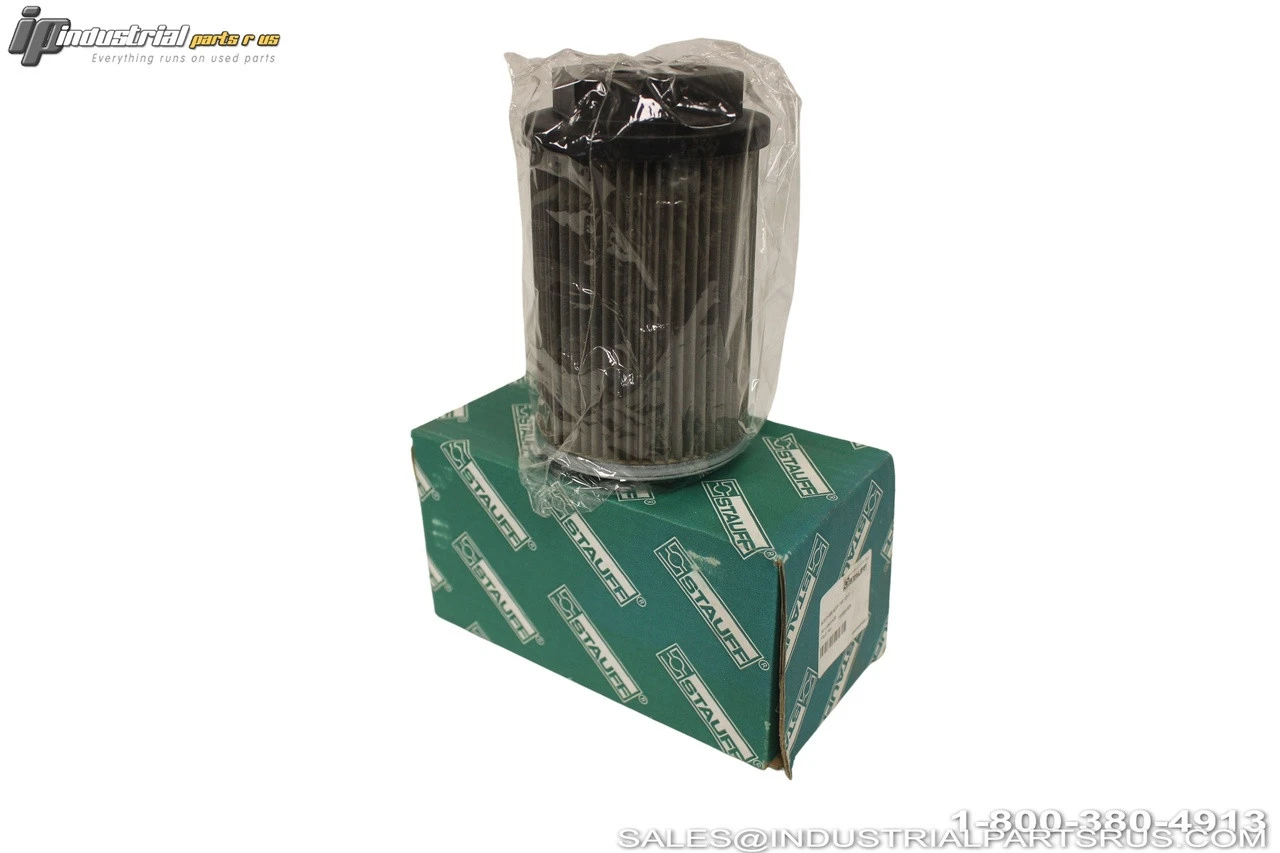

NEW STAUFF SUS-P-088-N20F-140-125-3
Overview
Description
The STAUFF SUS-P-088-N20F-140-125-3 is a hydraulic suction strainer designed as an in-tank element for direct installation into pump suction lines. This unit features an integrated 3PSI bypass valve and polyamide end cap, providing reliable filtration for hydraulic systems while maintaining flow continuity when the filter element becomes clogged.
Specification
Value
Brand
STAUFF
Model/Part Number
SUS-P-088-N20F-140-125-3
Product Type
Hydraulic Suction Strainer
Connection Thread
1-1/4" FNPT
Threaded End Cap Material
Polyamide
Filter Material
Stainless Steel Mesh
Micron Rating
125 Micron
Maximum Flow Rate
16.9 GPM
Bypass Valve
3PSI Integrated
Operating Temperature
-4°F to 212°F
Filter Area
182 in² (1172 cm²)
Length
140mm (5.51")
Outer Diameter
88mm (3.46")
Inner Diameter
85mm (3.35")
Media Compatibility
Mineral and Petroleum Based Hydraulic Fluids (HL and HLP)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI0315
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Application: Hydraulic System
Manufacturer: Stauff
Part Number: SUS-P-088-N20F-140-125-3
Shelf: K49
Model: SUS-P-088-N20F-140-125-3
MPN: SUS-P-088-N20F-140-125-3
Type: Hydraulic Filter
