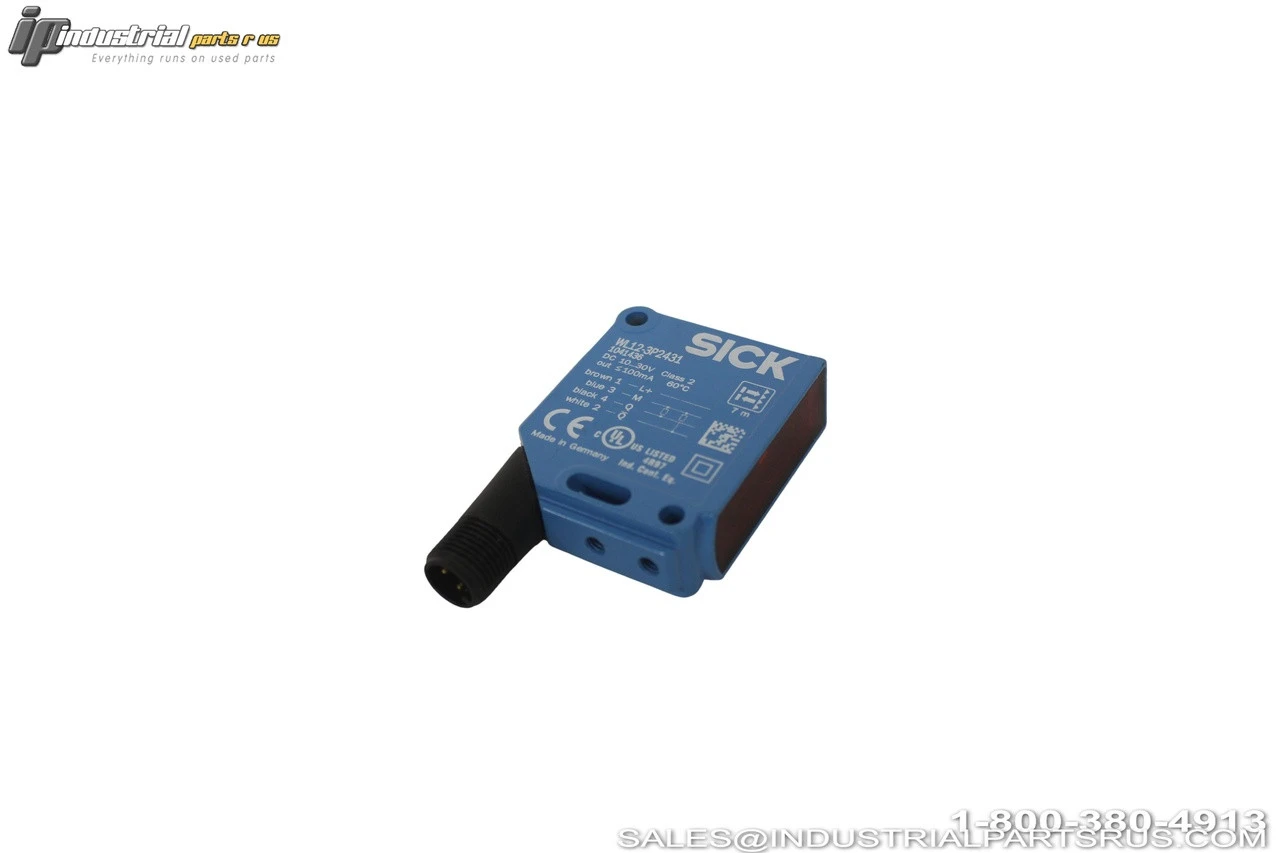

NEW SICK WL12-3P2431

The SICK WL12-3P2431 is a W12-3 series photoelectric retro-reflective sensor with autocollimation technology designed for demanding industrial applications. This sensor provides reliable object detection with a maximum sensing range of 7m (5m typical) using visible red LED light at 640nm wavelength. The rugged metal housing construction ensures exceptional performance in harsh environments.
Specification
Value
Brand
SICK
Model/Part Number
WL12-3P2431
Sensor Type
Photoelectric Retro-reflective
Series
W12-3
Sensing Range Max
0-7m
Sensing Range Typical
0-5m
Supply Voltage
10-30VDC
Output Type
PNP
Current Consumption
30mA
Output Current Max
100mA
Response Time
≤330µs
Switching Frequency
1,500Hz
Light Source
LED Visible Red Light
Wavelength
640nm
Connection Type
M12 4-pin Male Connector
Housing
Rectangular Metal
Dimensions (W×H×D)
15.6 × 48.5 × 42mm
Protection Rating
IP66/IP67/IP69K
Operating Temperature
-40°C to +60°C
We warranty all items for 30 days from date of purchase.

SKU: AI0310
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Germany
GTIN: 679523686161
Output Type: PNP
Sensor Type: Photoelectric
Operating Distance: 0-5m typical
Full Load Amps: 30mA
Manufacturer: SICK
Part Number: WL12-3P2431
Shelf: P7
Model: WL12-3P2431
MPN: WL12-3P2431
Type: Photoelectric Sensor
