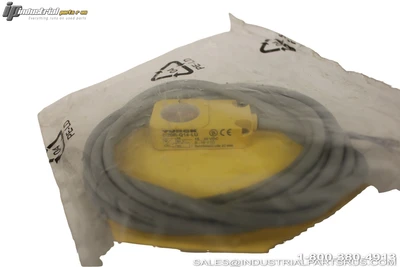

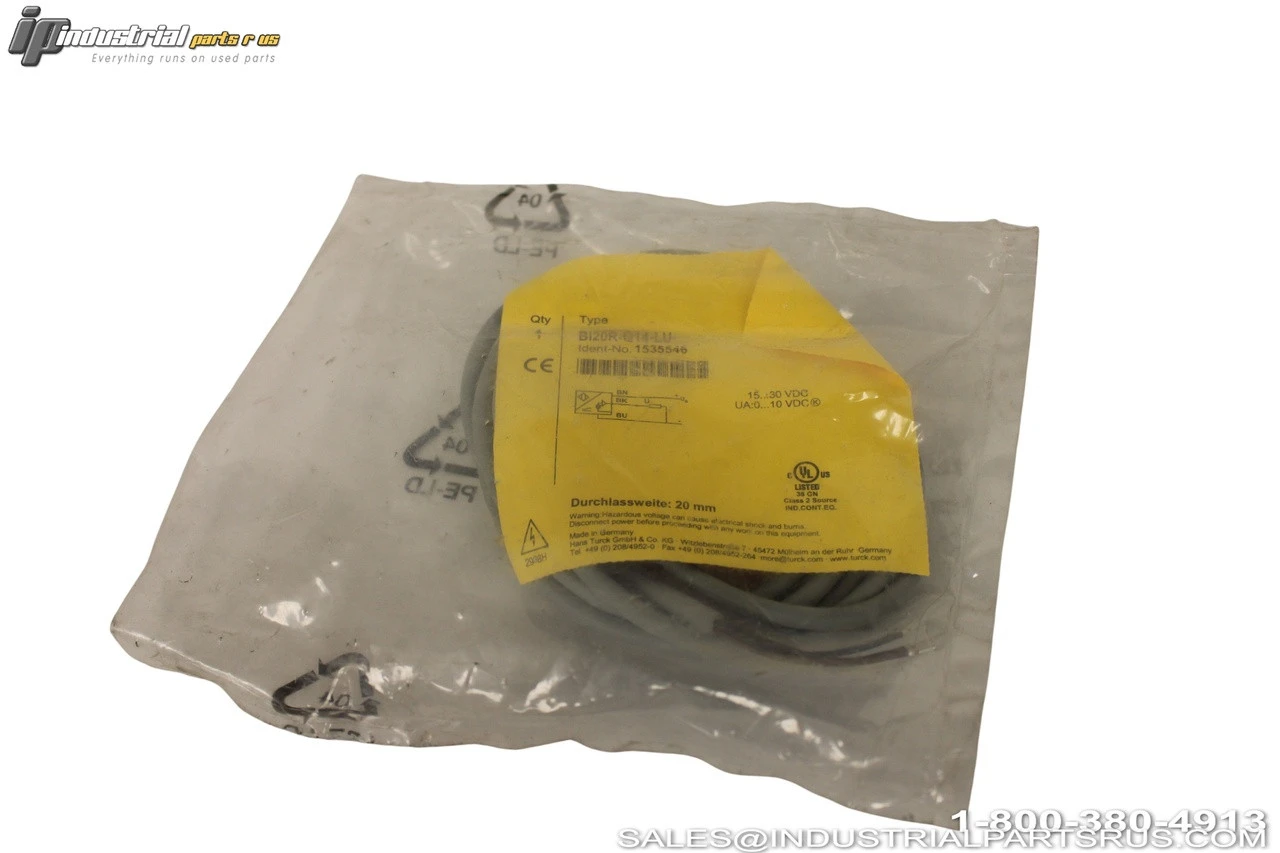

NEW TURCK BI20R-Q14-LU

The Turck Bi20r-q14-lu is an inductive proximity sensor designed for precise thickness and distance measurement applications. This ring sensor features a rectangular Q14 housing with adjustable sensitivity via potentiometer and analog voltage output for continuous measurement feedback.
Specification
Value
Brand
Turck
Model/Part Number
Bi20r-q14-lu
Manufacturer ID
1535546
Sensor Type
Inductive Ring Sensor
Sensing Range
20mm
Operating Voltage
15-30 VDC (18-30 VDC nominal)
Output Type
Analog Output 0-10V
Construction Size
52 x 30 x 14 mm
Height
14 mm
Inside Ring Diameter
20.1 mm
Housing Material
PBT-GF30-V0 Plastic
Connection Type
Cable Connection
Cable Length
2.0 m (6.5 ft)
Cable Termination
Bare End Flying Leads
Wiring
3-Wire
Switching Frequency
80Hz Maximum
Sensitivity Adjustment
Potentiometer Adjustable
Design
Rectangular Q14 Housing
Operating Temperature
-25 to +70°C
We warranty all items for 30 days from date of purchase.

SKU: AI0313
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Germany
GTIN: 679523686161
Output Type: Analog
Sensor Type: Inductive Ring Sensor
Operating Distance: 20mm
Manufacturer: Turck
Part Number: BI20R-Q14-LU
Shelf: O 10
Model: BI20R-Q14-LU
MPN: BI20R-Q14-LU
Type: Inductive Proximity Sensor
