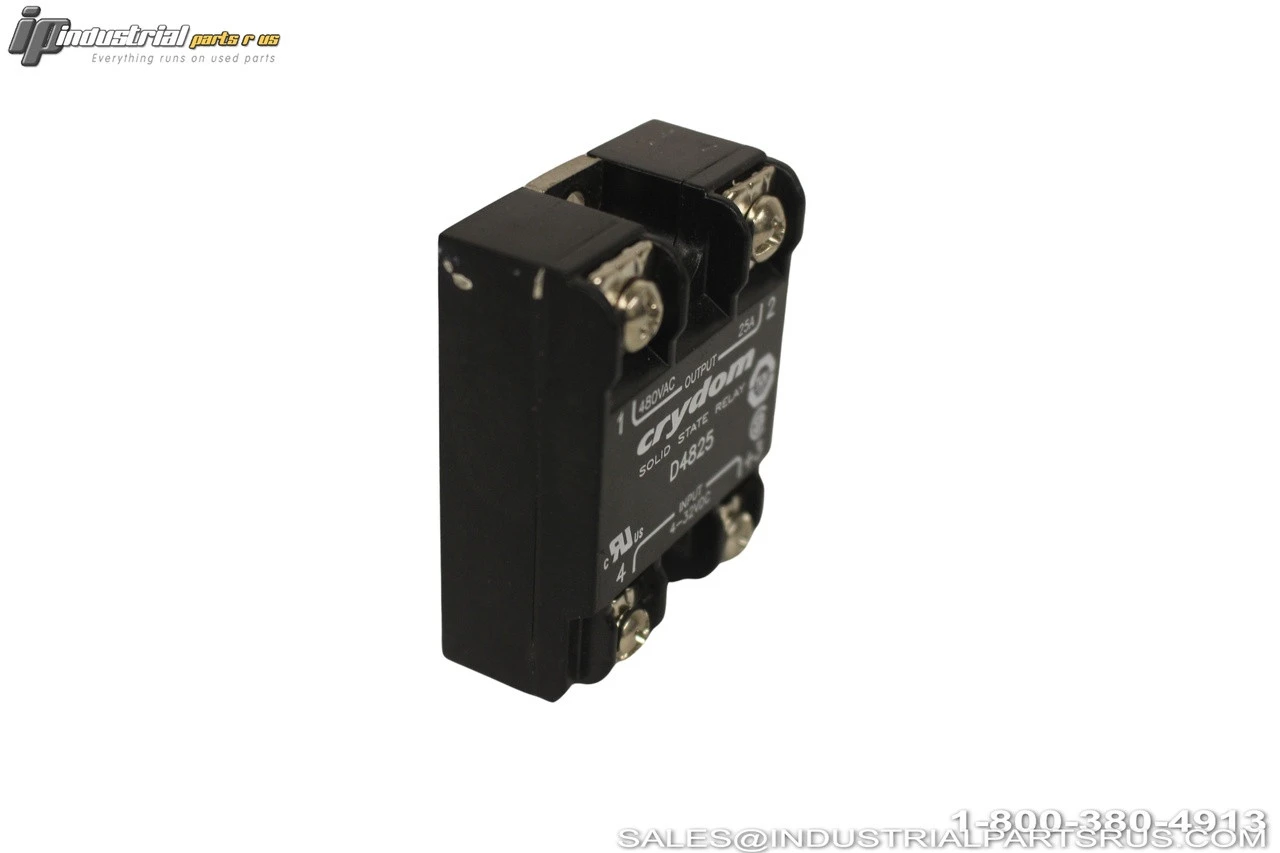

USED CRYDOM D4825

The Crydom D4825 is a professional-grade solid state relay from the Series One family designed for heavy industrial applications. This relay features SCR (Silicon Controlled Rectifier) output switching with zero crossing technology for reduced electromagnetic interference and extended load life. The unit incorporates an aluminum baseplate with direct bond copper substrate for optimal thermal management and reliability in demanding industrial environments.
Specification
Value
Brand
Crydom
Model/Part Number
D4825
Product Series
D48 Series (Series One)
Contact Configuration
SPST-NO (1 Form A)
Load Current Rating
25A
Input Voltage Range
4-32VDC
Output Voltage Range
80-530VAC
Minimum Operating Voltage
48VAC
Maximum Operating Voltage
530VAC
Output Type
AC, Zero Cross
Output Device
SCR (Silicon Controlled Rectifier)
Switching Mode
Zero Crossing
Mounting Type
Panel Mount/Chassis Mount
Termination Style
Screw Terminal
Package Type
Hockey Puck
Dimensions (L x W x H)
58.4 x 45.7 x 22.9 mm
IP Rating
IP00
Housing Material
94V-0 Housing
Base Material
Aluminum Baseplate
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.

SKU: AI0321
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Mounting Style: Panel Mount
Country/Region of Manufacture: Mexico
GTIN: 679523686161
Output Type: AC, Zero Cross
Manufacturer: Crydom
Part Number: D4825
Shelf: K-50
Model: D4825
MPN: D4825
Type: Solid State Relay
