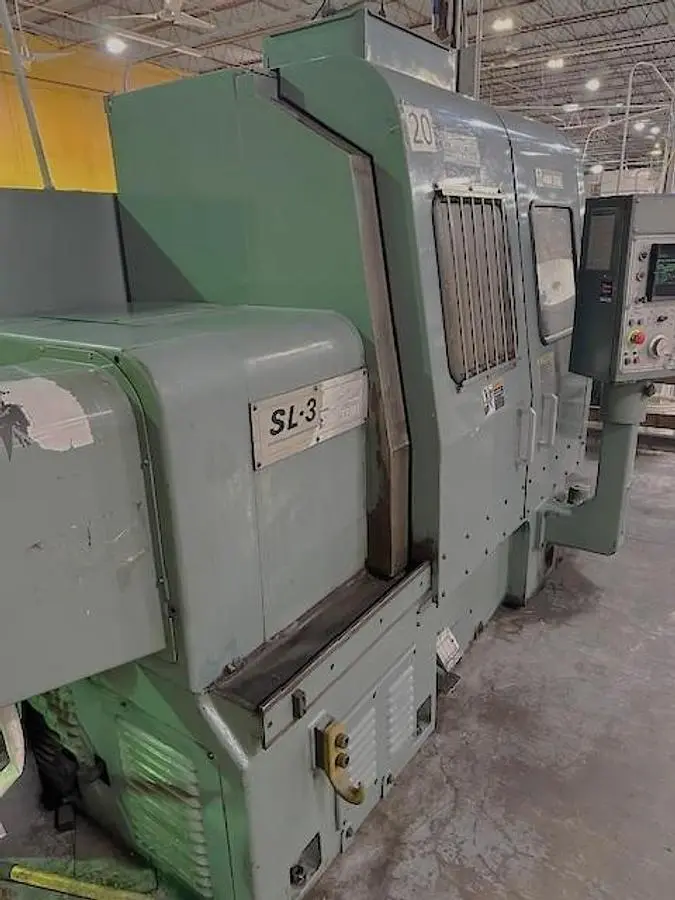

USED 1983 MORI SEIKI SL-3A

10" 3 Jaw Hydraulic Chuck
Tailstock
RS 232 Port Interface
Hardened Boxed Ways On A True Slant Bed
Coolant System with Tank & Pump
Some Tool Blocks
Some Manuals

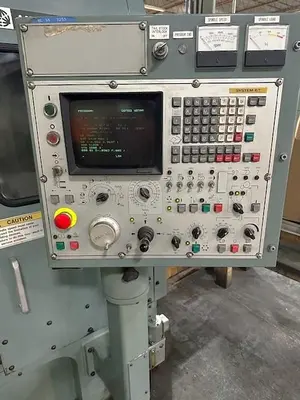

The 1983 Mori Seiki SL-3A is a robust CNC lathe designed for precision and reliability, equipped with a Fanuc 6TB Control. This model features a 10-inch 3-jaw hydraulic chuck and includes a functional tailstock, ensuring versatility and support in various machining tasks. Its operating status under power and holding tolerance contributes to consistent performance in production environments.

This CNC lathe offers substantial capacity, with a swing over bed of 22.4 inches and a machining length of up to 21.6 inches. It accommodates a maximum bar capacity of 1.625 inches and features a spindle speed range from 35 to 3500 RPM, powered by a 20 HP motor. The lathe is equipped with a 12-position turret for efficient tooling options and has rapid traverse rates reaching 354 inches per minute.

With dimensions of 120"x62"x71" and a weight of 9,240 lbs., the Mori Seiki SL-3A stands as a durable and reliable choice for your machining needs. Its engineering provides a travel range of 6.3 inches on the X-axis and 20.47 inches on the Z-axis, with a tailstock travel of 3.15 inches fitted with an MT #3 taper, facilitating diverse machining operations.
